Maple Flow – Calculation Software for Civil Engineers

Calculation Software for Civil Engineers

From structural steel to highway and transportation design, Maple Flow provides a freeform calculation environment for Civil Engineering design and analysis.

Maple Flow provides a freeform calculation environment for Civil Engineering design and analysis

Are You a Mathcad® User?

Don’t let your work be held hostage by a subscription to a math tool
Compare Maple Flow & Mathcad
Mapleflow Logo

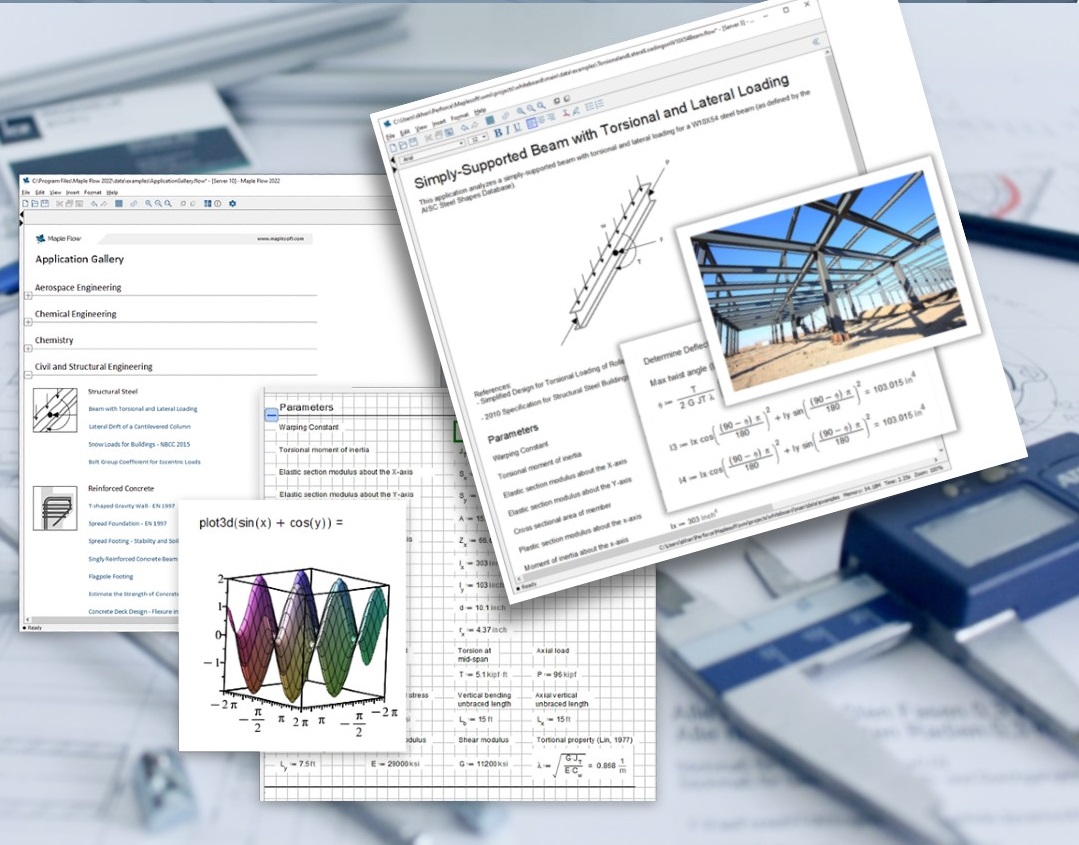

Maple Flow provides a freeform, paper-like, calculation environment. Maple Flow lets you:

  • Do calculations in readable, natural math notation, with full support for units
  • Create engaging design reports with text, live equations, images and plots
  • Generate attractive plots and charts

Learn more about Maple Flow.

Watch: Introducing Maple Flow

Mathcad is a registered trademark of PTC Inc. or its subsidiaries in the U.S. and in other countries. MATLAB is a registered trademark of The MathWorks, Inc.

Let us show you how Maple Flow can be used to solve your Civil Engineering challenges.

Here are examples that demonstrate how Civil Engineers use Maple Flow for their calculations

Structural Steel Design

Design engineers need to ensure code compliance with readable, auditable calculation reports. This is especially significant in critical applications such as structural steel design.

Structural engineers often need to develop auditable calculation reports to deliver to regulatory bodies or clients. They also need to use tabulated libraries of structural steel properties, such as the American Institute of Steel Construction (AISC) shapes database

  • Torsional and Lateral Loading on a W10X54 Beam
  • Bolt Group Coefficient for Eccentric Loads
  • Lateral Drift of a Cantilever Column
  • Snow loads for building - NBCC 2015

Download Applications

Reinforced Concrete Design

Structural engineers use Maple Flow for the standards-based calculations for reinforced concrete design.

The calculations are often described in guides such as AASHTO, ACI and Eurocodes.

  • Concrete Deck Design - Flexure in Deck Overhang
  • Concrete Retaining Wall
  • Estimate the Strength of Concrete at an Arbitrary Age
  • Crack Width in Doubly Reinforced Concrete Beam
  • Drilled Shaft to Resist Overturning
  • Flagpole Footing
  • Singly Reinforced Concrete Beam
  • Spread footing - Stability and Soil bearing
  • T-shaped gravity wall design - EN 1997
  • Spread foundation design - EN 1997

Download Applications

Timber Design

Wood is an important green construction material in North America and, increasingly, elsewhere. Since trees capture carbon, the use of timber in construction is growing.

  • Wood Lap Joint Glue Strength
  • Wood Column Design
  • Toe-Nail Connection Design (NDS 2018)

Download Applications

Water Resources

Civil Engineers use Maple Flow for calculations in open channel flows, riprap sizing, and many other applications in hydraulics and hydrology.

  • Riprap Rock Sizing
  • Maximum Flow Rate in Open-Channel Flow for a Circular Pipe
  • Gradually Varied Flow in a Trapezoidal Channel
  • Spatially Varied Open-Channel Flow with Increasing Discharge

Download Applications

Highway Design

Highway engineers employ Maple to determine the thickness of pavements layers, determine highway superelevation, investigate curvature alignment, and design the signs over freeways.

  • Highway Pavement Design using the CALTRANS Method
  • Live loads with Vehicular Centrifugal Force

Download Applications

Building Thermal Loads

During the initial design phase, Civil Engineers need to estimate the influence of heating and cooling loads on the thermal envelope of the building. Maple Flow offers a built-in database of humid air properties. Allied with the checks and balances offered by units, Maple Flow is an efficient tool for building thermal design.

  • Forecasting Natural Gas Heating Cost for a Building
  • Adiabatic Mixing of Humid Air

Download Applications

Geotechnical Engineering

Geotechnical engineers need to analyze the behavior of soil and earth materials. This is necessary for the reliable design of footings, or to examine the stability of slopes

  • Slope Failure by the Ordinary Method of Slices
  • Geotechnical design of foundation
  • Deflection of a Flexible Pipe using the Modified Iowa Formula

Download Applications

Have Questions? Would you like some additional information or a customized demonstration?
