New Packages in Maple V Release 5

This file describes the new packages available in Release 5 of Maple.

Context package

Interface to Matlink

Codegen - Code generation package

algcurves - The algebraic curves package

diffalg - Package for manipulating systems of differential polynomial equations (ODE or PDE)

geom3d - Introduction to the geom3d package

Groebner - The Groebner package and Groebner bases.

Ore_algebra - The Ore_algebra package and Ore algebras.

PDEtools - Solving Partial Differential Equations

Context package

•

Context

Interface to Matlink

•

Matlab

Codegen - Code generation package

•	GRAD - See GRADIENT

•	GRADIENT - Compute the Gradient of a Maple procedure

>	with(codegen):

>	F := proc(x) local t; t := x; x+t*t; end;

$F := proc (x) local t &semi; t := x &semi; x + t &ast; t end proc$

(1)

F(x,y);

$x^{2} + x$

(2)

>	G := GRADIENT(F);

$G := proc (x) local df, t &semi; t := x &semi; df := array (1 .. 1) &semi; df [1] := 2 &ast; t &semi; return df [1] + 1 end proc$

(3)

•	HESSIAN - Compute the HESSIAN matrix of a Maple procedure

>	F := proc(x,y) local t; t := xy; x+t-yt; end;

$F := proc (x, y) local t &semi; t := y &ast; x &semi; x + t - y &ast; t end proc$

(4)

F(x,y);

$- y^{2} x + y x + x$

(5)

>	H := HESSIAN(F); # reverse mode

$H := proc (x, y) local df, df1, dfr0, grd, grd1, grd2, t1 &semi; df1 := - y + 1 &semi; t1 := df1 &semi; grd1 := t1 &ast; y + 1 &semi; grd2 := t1 &ast; x - y &ast; x &semi; df := array (1 .. 4) &semi; dfr0 := array (1 .. 4) &semi; df [3] := 1 &semi; df [2] := df [3] &ast; y &semi; df [1] := df [2] &semi; dfr0 [4] := 1 &semi; dfr0 [2] := dfr0 [4] &ast; x &semi; dfr0 [1] := dfr0 [2] &semi; grd := array (1 .. 2, 1 .. 2) &semi; grd [1, 1] := 0 &semi; grd [1, 2] := t1 &ast; df [3] - df [1] &semi; grd [2, 1] := dfr0 [4] &ast; (t1 - y) &semi; grd [2, 2] := - dfr0 [4] &ast; x - dfr0 [1] &semi; return grd end proc$

(6)

•	JACOBIAN - Compute the JACOBIAN matrix of a Maple procedure

>	f := proc(x,y) x*y^2; end;

$f := proc (x, y) x &ast; y &Hat; 2 end proc$

(7)

>	g := proc(x,y) x^2*y; end;

$g := proc (x, y) x &Hat; 2 &ast; y end proc$

(8)

>	J := JACOBIAN([f,g]);

$J := proc (x, y) local df, dfr0, grd, t1, t2 &semi; t1 := y &Hat; 2 &semi; t2 := x &Hat; 2 &semi; df := array (1 .. 2) &semi; dfr0 := array (1 .. 2) &semi; df [1] := x &semi; dfr0 [2] := y &semi; grd := array (1 .. 2, 1 .. 2) &semi; grd [1, 1] := t1 &semi; grd [1, 2] := 2 &ast; y &ast; df [1] &semi; grd [2, 1] := 2 &ast; dfr0 [2] &ast; x &semi; grd [2, 2] := t2 &semi; return grd end proc$

(9)

>	print(J(x,y));

$[\begin{array}{c} y^{2} & 2 y x \\ 2 y x & x^{2} \end{array}]$

(10)

•	declare - Declare the type of a parameter

>	g := proc(y) local A; A := array(1 .. 2); A[1] := y^2; A[2] := y^2; end:

>	declare(y::numeric,g);

$proc (y :: numeric) local A &semi; A := array (1 .. 2) &semi; A [1] := y &Hat; 2 &semi; A [2] := y &Hat; 2 end proc$

(11)

•	dontreturn - Do not return a value from a Maple procedure

>	f := proc(a,b) a := 3; b := array(1..2,1..2,[[1,2],[3,4]]); RETURN(a,b); end;

$f := proc (a, b) a := 3 &semi; b := array (1 .. 2, 1 .. 2, [[1, 2], [3, 4]]) &semi; RETURN (a, b) end proc$

(12)

>	dontreturn(a,f);

$proc (a, b) a := 3 &semi; b := array (1 .. 2, 1 .. 2, [[1, 2], [3, 4]]) &semi; return b end proc$

(13)

•	codegen,fortran - Generate fortran code

>	f := 12x+4-y+6x;

$f ≔ 18 x + 4 - y$

(14)

>	fortran(f);

t0 = 18*x+4-y

•	horner - Convert formulae in a procedure to horner form

>	h := proc(x,y,z) 1-2xy-xy^2z*(1-x); end;

$h := proc (x, y, z) 1 - 2 &ast; y &ast; x - x &ast; y &Hat; 2 &ast; z &ast; (1 - x) end proc$

(15)

>	horner(h,x);

$proc (x, y, z) 1 + (x &ast; y &Hat; 2 &ast; z - y &Hat; 2 &ast; z - 2 &ast; y) &ast; x end proc$

(16)

>	horner(h,[x,y]);

$proc (x, y, z) 1 + ((- y &ast; z - 2) &ast; y + x &ast; y &Hat; 2 &ast; z) &ast; x end proc$

(17)

•	intrep2maple - Converts an abstract syntax tree to a Maple procedure

>	f := proc(x) local t; t := sin(x); x*t; end:

>	tree := maple2intrep(f);

$tree ≔ Proc (Name (f .. float), Parameters (x .. float), Options (), Description (), Locals (t .. float), Globals (), StatSeq (Assign (t, \sin (x)), x t))$

(18)

>	intrep2maple(tree);

$proc (x) local t &semi; t := \sin (x) &semi; x &ast; t end proc$

(19)

•	joinprocs - Join the body of two or more Maple procedures together

>	f := proc(x,y) local e,t; e := exp(-x); t := x^2; t*e; end:

>	g := proc(x,y) local e,t; e := exp(-x); t := y^2; t*e; end:

>	J := joinprocs([f,g]);

$J := proc (x, y) local e, resultf, resultg, t &semi; e := \exp (- x) &semi; t := x &Hat; 2 &semi; resultf := e &ast; t &semi; e := \exp (- x) &semi; t := y &Hat; 2 &semi; resultg := e &ast; t &semi; return resultf, resultg end proc$

(20)

•	makeglobal - Make a variable to be a global variable

>	f := proc(x) local b; b := hfarray([[x*2,3],[4.5,32]]); end:

>	makeglobal(b,f);

$proc (x) global b &semi; b := hfarray ([[2 &ast; x, 3], [4.5, 32]]) end proc$

(21)

•	makeparam - Change the variable to be a parameter

>	f := proc() local x; x := 3*x; end:

>	g := makeparam(x,f);

$g := proc (x) x := 3 &ast; x end proc$

(22)

•	makeproc - Make a Maple procedure from a formula(e)

>	f := x-yxexp(-3);

$f ≔ x - y x {&ExponentialE;}^{−3}$

(23)

>	makeproc(f,[x,y]);

$proc (x, y) x - y &ast; x &ast; \exp (- 3) end proc$

(24)

•	makevoid - Do not return any values from a Maple procedure

>	f := proc(x,A::array(2..2)) A[1,1] := x^2; RETURN(x,A); end:

>	makevoid(f);

$proc (x, A :: (array (2 .. 2))) A [1, 1] := x &Hat; 2 &semi; return end proc$

(25)

•	maple2intrep - Converts a Maple procedure to an abstract syntax tree

>	f := proc(x) local t; t := sin(x); x*t; end:

>	tree := maple2intrep(f);

$tree ≔ Proc (Name (f .. float), Parameters (x .. float), Options (), Description (), Locals (t .. float), Globals (), StatSeq (Assign (t, \sin (x)), x t))$

(26)

•	optimize - Common subexpression optimization

>	f := 2^x-x^3;

$f ≔ 2^{x} - x^{3}$

(27)

>	optimize(f);

$t1 = 2^{x}, t2 = x^{2}, t4 = - t2 x + t1$

(28)

•	packlocals - Pack locals of a Maple procedure into an array

>	f := proc(x,y,z) local w,t; w := y^2; t := xwz; z-t^2; end:

>	packlocals(f,[w,t],A);

$proc (x, y, z) local A &semi; A := array (1 .. 2) &semi; A [1] := y &Hat; 2 &semi; A [2] := x &ast; A [1] &ast; z &semi; - A [2] &Hat; 2 + z end proc$

(29)

•	packparams or packargs - Pack parameters (or arguments) of a Maple procedure into an array

>	f := proc(x,y,z) local s,t; s := y^2; t := xsz; t^2; end;

$f := proc (x, y, z) local s, t &semi; s := y &Hat; 2 &semi; t := x &ast; s &ast; z &semi; t &Hat; 2 end proc$

(30)

>	packparams(f,[x,y,z],A);

$proc (A :: (array (1 .. 3))) local s, t &semi; s := A [2] &Hat; 2 &semi; t := A [1] &ast; s &ast; A [3] &semi; t &Hat; 2 end proc$

(31)

•	prep2trans - Prepare a Maple procedure for translation

>	f := proc(x) piecewise(x<0,0,x<1,x,x>1,2-x,0); end;

$f := proc (x) piecewise (x < 0, 0, x < 1, x, 1 < x, 2 - x, 0) end proc$

(32)

>	prep2trans(f);

$proc (x) if x < 0 then 0 elif x < 1 then x elif 1 < x then 2 - x else 0 end if end proc$

(33)

•	split - Prepare a Maple procedure for automatic differentiation

>	h := proc(a,b) 324exp(a)/56b3a; end;

$h := proc (a, b) 243 / 14 &ast; \exp (a) &ast; b &ast; a end proc$

(34)

split(h);

$proc (a, b) local s0 &semi; s0 := b &ast; a &semi; return 243 / 14 &ast; s0 &ast; \exp (a) end proc$

(35)

•	swapargs - Interchange two arguments in a Maple procedure

>	f := proc(x,y,z) local s,t; s := y^2; t := x/60-z; t^2; end:

>	swapargs(f,1=2);

$proc (y, x, z) local s, t &semi; s := y &Hat; 2 &semi; t := 1 / 60 &ast; x - z &semi; t &Hat; 2 end proc$

(36)

algcurves - The algebraic curves package

•	Weierstrassform - Find an isomorphism for function fields with genus 1

>	with(algcurves):

>	f:=x^4+y^4-2x^3+x^2y-2y^3+x^2-xy+y^2:

>	v:=Weierstrassform(f,x,y,x0,y0);

$v ≔ [{x0}^{3} + \frac{2}{3} x0 + \frac{1}{108} + {y0}^{2}, \frac{- 3 y + 2 x}{3 x}, - \frac{x^{3} - 2 x y^{2} + 2 y^{3} - x^{2} + 2 y x - 2 y^{2}}{2 x^{2} (x - 1)}, \frac{- 162 {x0}^{3} + 324 {x0}^{2} - 162 x0 y0 - 135 x0 + 108 y0 + 156}{162 {x0}^{4} - 432 {x0}^{3} + 432 {x0}^{2} - 192 x0 + 194}, \frac{162 {x0}^{4} - 432 {x0}^{3} + 162 {x0}^{2} y0 + 351 {x0}^{2} - 216 x0 y0 - 246 x0 + 72 y0 + 104}{162 {x0}^{4} - 432 {x0}^{3} + 432 {x0}^{2} - 192 x0 + 194}]$

(37)

•	genus - Find the genus of an algebraic curve

>	f:=x^4-y^3-y;

$f ≔ x^{4} - y^{3} - y$

(38)

>	factor(f);

$x^{4} - y^{3} - y$

(39)

>	genus(f,x,y);

$3$

(40)

•	homogeneous - Make a polynomial in two variables homogeneous in three variables

>	f:=a^2-b^3;

$f ≔ - b^{3} + a^{2}$

(41)

>	homogeneous(f,b,a,c);

$a^{2} c - b^{3}$

(42)

•	integral_basis - Find integral bases of algebraic function fields

>	alpha:=RootOf(x^3+7,x);

$α ≔ RootOf ({_Z}^{3} + 7)$

(43)

>	f:=y^8+3xy^5alpha+5x^4+x^6*alpha;

$f ≔ y^{8} + RootOf ({_Z}^{3} + 7) x^{6} + 3 RootOf ({_Z}^{3} + 7) x y^{5} + 5 x^{4}$

(44)

>	integral_basis(f,x,y);

$[1, y, y^{2}, \frac{y^{3}}{x}, \frac{y^{4}}{x}, \frac{y^{2} (y^{3} + 3 x RootOf ({_Z}^{3} + 7))}{x^{2}}, \frac{y^{3} (y^{3} + 3 x RootOf ({_Z}^{3} + 7))}{x^{2}}, \frac{y^{4} (y^{3} + 3 x RootOf ({_Z}^{3} + 7))}{x^{3}}]$

(45)

•	j_invariant - Find the j invariant of an elliptic curve

>	f:=y^5+4/3-23/3y^2+11y^3-17/3y^4-16/3x^2+16/3x^3-4/3x^4:

check to see if genus is 1 first

>	genus(f,x,y);

$1$

(46)

>	j_invariant(f,x,y);

$- \frac{1404928}{171}$

(47)

•	parametrization - Calculate parametrization for a curve with genus 0

>	f:=y^5+2xy^2+2xy^3+x^2y-4x^3y+2x^5:

>	v:=parametrization(f,x,y,t);

$v ≔ [\frac{- 24192 t^{5} - 6048 t^{4} + 2520 t^{3} - 238 t^{2} + 7 t}{181604 t^{5} - 103680 t^{4} + 17280 t^{3} - 1440 t^{2} + 60 t - 1}, \frac{16464 t^{5} + 6860 t^{4} - 686 t^{3}}{181604 t^{5} - 103680 t^{4} + 17280 t^{3} - 1440 t^{2} + 60 t - 1}]$

(48)

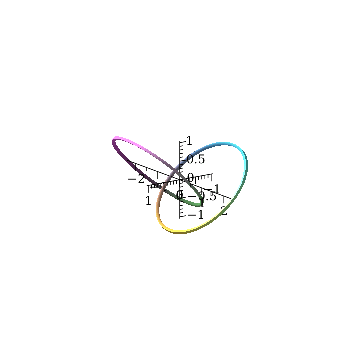

•	plot_knot - Make a tubeplot for a singularity knot

>	plot_knot(x^2+y^2,x,y,axes=normal);

•	puiseux - Determine the Puiseux expansion of an algebraic function

>	Root:=RootOf(x^2-5);

$Root ≔ RootOf ({_Z}^{2} - 5)$

(49)

>	f := 4+Root-y^4+x*5;

$f ≔ - y^{4} + RootOf ({_Z}^{2} - 5) + 5 x + 4$

(50)

>	puiseux(f,x=0,y,3);

$\{(\frac{75 RootOf ({_Z}^{4} - RootOf ({_Z}^{2} - 5) - 4) RootOf ({_Z}^{2} - 5)}{484} - \frac{1575 RootOf ({_Z}^{4} - RootOf ({_Z}^{2} - 5) - 4)}{3872}) x^{2} + (- \frac{5 RootOf ({_Z}^{4} - RootOf ({_Z}^{2} - 5) - 4) RootOf ({_Z}^{2} - 5)}{44} + \frac{5 RootOf ({_Z}^{4} - RootOf ({_Z}^{2} - 5) - 4)}{11}) x + RootOf ({_Z}^{4} - RootOf ({_Z}^{2} - 5) - 4)\}$

(51)

•	singularities - Determine the singularities of an algebraic curve

>	f := x^3y+63y-4y^2+6xy-8x;

$f ≔ y x^{3} + 6 y x - 4 y^{2} - 8 x + 63 y$

(52)

>	singularities(f,x,y);

$\{[[0, 1, 0], 2, 1, 1]\}$

(53)

diffalg - Package for manipulating systems of differential polynomial equations (ODE or PDE)

For examples of differential polynomials, please see the Differential example worksheet.

•	Rosenfeld_Groebner - Find the representation of radical ideal

•	belongs_to - Test if a differential polynomial belongs to a radical differential ideal

•	delta_leader - Return the difference of the derivation operators of the leaders of two differential polynomials

•	delta_polynomial - Return the delta-polynomial generated by two differential polynomials

•	denote - Convert a differential polynomial from an external form to another one

•	derivatives - Return the derivatives occurring in a differential polynomial

•	differential_ring - Define a differential polynomial ring endowed with a ranking and notations

•	differential_sprem - Return the sparse pseudo remainder of a differential polynomial

•	differentiate - Differentiate a differential polynomial

•	equations - Return the equations of a regular differential ideal

•	field_extension - Define a field extension of the field of the rational numbers

•	formal_power_series - Compute a formal power series from a regular differential ideal

•	greater - Compare the rank of two differential polynomials

•	inequations - Return the inequations of a regular differential ideal

•	initial - Return the initial of a differential polynomial

•	initial_conditions - Return the list of the initial conditions of a regular differential ideal

•	is_orthonomic - Test if a regular differential ideal is presented by an orthonomic system of equations

•	leader - Return the leader of a differential polynomial

•	power_series_solution a solution of a regular differential ideal whose components are formal power series

•	print_ranking - Print a message describing the ranking of a differential polynomial ring

•	rank - Return the rank of a differential polynomial

•	reduced - Test if a differential polynomial is reduced w.r.t. differential polynomials

•	reduced_form - Find a reduced form of a differential polynomial modulo a radical differential ideal

•	rewrite_rules - Display the equations of a regular differential ideal using a special syntax

•	separant - Display the separant of a differential polynomial

geom3d - Introduction to the geom3d package

•	AreCollinear - Test if three points are collinear

restart;

>	with(geom3d):

>	point(A,0,0,0):

>	point(B,1,2,1):

>	point(C,2,4,2):

>	geom3d[AreCollinear](A,B,C);

$true$

(54)

•	AreConcurrent - Test if three lines are concurrent

>	point(A,1,1,1);

$A$

(55)

>	point(B,-1,-1,-1);

$B$

(56)

>	point(C,10,-10,10);

$C$

(57)

>	point(D,-10,10,-10);

Warning, a geometry object has been assigned to the protected name D. Use of protected names for geometry objects is not recommended and may break Maple functionality.

$D$

(58)

>	point(E,-66,5,0);

$E$

(59)

>	point(F,66,-5,0);

$F$

(60)

>	line(line1,[A,B]);

$line1$

(61)

>	line(line2,[C,D]);

$line2$

(62)

>	line(line3,[E,F]);

$line3$

(63)

>	geom3d[AreConcurrent](line1,line2,line3);

$true$

(64)

•	AreConjugate - Test if a pair of points is conjugate with respect to a sphere

>	point(A,0,0,0):

>	point(B,3,-4,2):

>	point(C,5,3,4):

>	sphere(sph,[A,5],[x,y,z]):

>	geom3d[AreConjugate](B,C,sph);

$false$

(65)

•	AreCoplanar - Test if the given objects are on the same plane

>	point(A,0,0,0): point(B,34,2,0): point(C,2,-15,0):

>	plane(pl1,[A,B,C]):

>	randpoint(D,pl1):

>	geom3d[AreCoplanar](A,B,C,D);

$true$

(66)

•	AreDistinct - Test if given objects are distinct

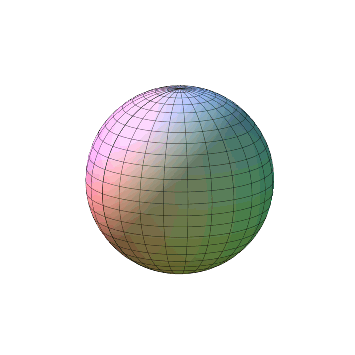

>	sphere(sph1,[point(A,0,0,0),3]):

>	line(line1,[A,point(B,0,0,21)]):

>	rotation(sph2,sph1,Pi/4,line1):

>	geom3d[AreDistinct](sph1,sph2);

$false$

(67)

•	AreParallel - Test if two objects are parallel to each other

>	point(A,1,3,2): point(B,5,2,3):

>	line(line1,[A,B]);

$line1$

(68)

>	plane(pl,[point(C,6,2,43),point(D,6,23,3),point(E,56,2,31)]):

>	geom3d[AreParallel](line1,pl);

$false$

(69)

•	ArePerpendicular - Test if two objects are perpendicular to each other

>	point(A,[6,3,2]):

>	point(B,[5,2,3]):

>	point(C,[6,2,1]):

>	plane(pl,[A,B,C]):

>	line(line1,[point(D,24,26,-2),point(E,26,-61,4)]):

>	geom3d[ArePerpendicular](line1,pl);

$false$

(70)

•	AreSkewLines - Test if two lines are skew

>	line(line01,[point(A,34,2,-13),point(B,62,-21,5)]):

>	line(line02,[point(C,1,1,6),point(D,-26,12,-72)]):

>	AreSkewLines(line01,line02);

$true$

(71)

•	DefinedAs - Return the name of endpoints or vertices of segment, directed segment, triangle

>	point(A,6,3,2):

>	point(B,6,21,-2):

>	point(C,-25,2,6):

>	triangle(tr1,[A,B,C]);

$tr1$

(72)

>	DefinedAs(tr1);

$[A, B, C]$

(73)

•	DirectionRatios - Return the direction-ratios of a line

>	line(ln1,[point(A,6,2,65),point(B,-62,2,-46)]):

>	DirectionRatios(ln1);

$[- \frac{68 \sqrt{16945}}{16945}, 0, - \frac{111 \sqrt{16945}}{16945}]$

(74)

•	Equation - Find the equation of a geometric object

>	sphere(sph1,[point(A,0,0,5),4]):

>	Equation(sph1,[x,y,z]);

$x^{2} + y^{2} + z^{2} - 10 z + 9 = 0$

(75)

•	FindAngle - Find the angle between two given objects

>	plane(pl1,[point(A,3,5,2),point(B,-3,2,0),point(C,5,2,-5)]):

>	line(ln1,[point(D,5,3,-1),point(E,1,2,5)]):

>	FindAngle(ln1,pl1);

$\arcsin (\frac{130 \sqrt{154601}}{154601})$

(76)

•	FixedPoint - Return a fixed point on a line

>	plane(pl1,[point(A,5,2,1),[5,2,5]]):

>	plane(pl2,[point(B,2,1,-5),[2,5,-6]]):

>	line(ln1,[pl1,pl2]):

>	FixedPoint(ln1);

$pl1_pl2$

(77)

>	detail(pl1_pl2);

$\begin{array}{l} name of the object & pl1_pl2 \\ form of the object & point3d \\ coordinates of the point & [\frac{92}{21}, \frac{127}{21}, 0] \end{array}$

(78)

•	HarmonicConjugate - Find the harmonic conjugate of a point with respect to two other points

>	point(A,3,4,2):

>	point(B,2,6,1):

>	point(C,6,2,2):

>	HarmonicConjugate(HC,B,C,A);

$HC$

(79)

>	coordinates(HC);

$[0, 8, \frac{1}{2}]$

(80)

•	IsEquilateral - Test if a given triangle is equilateral

>	triangle(tri,[point(A,56,1,2),point(B,2,0,56),point(C,6,1,2)]):

>	IsEquilateral(tri);

$false$

(81)

•	IsFacetted - Check if the given polyhedron is of faceted form

>	facet(i1,cuboctahedron(c,point(o,0,0,0),2),1);

$i1$

(82)

>	IsFacetted(i1);

$true$

(83)

•	IsOnObject - Test if a point, a list or a set of points is on a given object

>	line(ln1,[point(B,0,0,0),point(C,10,4,12)]):

>	IsOnObject(point(A,5,2,6),ln1);

$true$

(84)

•	IsRightTriangle - Test if a given triangle is a right triangle

>	triangle(tri,[point(A,6,21,6),point(B,2,-7,5),point(C,-6,6,2)],[x,y,z]):

>	IsRightTriangle(tri);

$false$

(85)

•	IsStellated - Check if the given polyhedron is of stellated form

>	stellate(ste,icosahedron(i,point(o,1,1,1),2),22);

$ste$

(86)

>	IsStellated(ste);

$true$

(87)

•	IsTangent - Test if a plane is tangent to a sphere

>	sphere(sph,[point(A,0,0,0),3]):

>	plane(pl,[point(B,7,2,5),point(C,5,1,-2),point(D,-7,2,-3)]):

>	IsTangent(pl,sph);

$false$

(88)

•	NormalVector - Define the planes

>	plane(pl,[point(A,6,2,3),point(B,2,1,-5),point(C,-1,6,2)]):

>	Normvec := NormalVector(pl);

$Normvec ≔ [33, 52, −23]$

(89)

•	OnSegment - Find the point which divides the segment joining two given points by some ratio

>	OnSegment(pt,point(A,5,2,-6),point(B,-1,5,2),3);

$pt$

(90)

>	detail(pt);

$\begin{array}{l} name of the object & pt \\ form of the object & point3d \\ coordinates of the point & [\frac{1}{2}, \frac{17}{4}, 0] \end{array}$

(91)

•	ParallelVector - Return a direction-ratios of a line

>	line(ln1,[point(A,6,-6,2),point(B,-5,1,-61)]):

>	PVec := ParallelVector(ln1);

$PVec ≔ [−11, 7, −63]$

(92)

•	QuasiRegularPolyhedron - Define a quasi-regular polyhedron

>	QuasiRegularPolyhedron(QRpoly, [[3],[4]],point(A,6,6,2),3);

$QRpoly$

(93)

•	RadicalCenter - Find the radical center of four given spheres

>	sphere(sph1,[point(A,2,5,1),4]):

>	sphere(sph2,[point(B,6,-2,3),3]):

>	sphere(sph3,[point(C,-8,3,7),4]):

>	sphere(sph4,[point(D,-6,2,-1),6]):

>	RadicalCenter(pt,sph1,sph2,sph3,sph4);

$pt$

(94)

>	coordinates(pt);

$[\frac{141}{136}, - \frac{43}{34}, 0]$

(95)

•	RadicalLine - Find the radical line of three given spheres

>	sphere(sph1,[point(A,2,5,1),4]):

>	sphere(sph2,[point(B,6,-2,3),3]):

>	sphere(sph3,[point(C,-8,3,7),4]):

>	RadicalLine(ln1,sph1,sph2,sph3);

$ln1$

(96)

>	detail(ln1);

Warning, assume that the parameter in the parametric equations is _t

Warning, assuming that the names of the axes are _x, _y, and _z

$\begin{array}{l} name of the object & ln1 \\ form of the object & line3d \\ equation of the line & [_x = - \frac{148}{39} - 152_t,_y = - \frac{157}{39} - 176_t,_z = - 312_t] \end{array}$

(97)

•	RadicalPlane - Find the radical plane of two given spheres

>	sphere(sph1,[point(A,2,5,1),4]):

>	sphere(sph2,[point(B,6,-2,3),3]):

>	RadicalPlane(pl,sph1,sph2);

$pl$

(98)

>	detail(pl);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & pl \\ form of the object & plane3d \\ equation of the plane & - 26 + 8_x - 14_y + 4_z = 0 \end{array}$

(99)

•	StereographicProjection

•	TangentPlane - Find the tangent plane of a point on a sphere

>	sphere(sph,[point(A,0,0,0),1]):

>	point(B,0,0,1):

>	TangentPlane(pl,B,sph);

$pl$

(100)

>	detail(pl);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & pl \\ form of the object & plane3d \\ equation of the plane & 1 -_z = 0 \end{array}$

(101)

•	area - Calculate the area of a triangle, surface area of sphere, regular polyhedron

>	sphere(sph1,[point(A,2,5,1),4]):

>	area(sph1);

$64 π$

(102)

•	altitude - Find the altitude of a given triangle

>	triangle(tri,[point(A,3,5,1),point(B,-6,1,-4),point(C,7,3,0)]):

>	altitude(al,tri,B);

$al$

(103)

form(al);

$segment3d$

(104)

>	detail(al);

$\begin{array}{l} name of the object & al \\ form of the object & segment3d \\ the 2 ends of the segment & [[- \frac{29}{21}, \frac{151}{21}, \frac{44}{21}], [- \frac{29}{21}, \frac{151}{21}, \frac{44}{21}]] \end{array}$

(105)

•	center - Find the center of a given geometric object

>	tetrahedron(t,point(pt,1,2,3),3):

>	center(ctr,t);

$ctr$

(106)

>	form(ctr);

$point3d$

(107)

>	coordinates(ctr);

$[1, 2, 3]$

(108)

•	centroid - Find the centroid of a given general tetrahedron or a given triangle or a list of points in space

>	point(A,0,0,0),point(B,1,0,0),point(C,0,0,1),point(F,0,1,0):

>	gtetrahedron(t,[A,B,C,F]):

>	triangle(tri,[point(A,4,1,2),point(B,2,5,1),point(C,-5,1,-6)]);

$tri$

(109)

>	centroid(ctd,tri);

$ctd$

(110)

>	centroid(ctd1,t);

$ctd1$

(111)

>	form(ctd);

$point3d$

(112)

>	coordinates(ctd);

$[\frac{1}{3}, \frac{7}{3}, −1]$

(113)

•	circle - Create a circle

>	sphere(sph,[point(A,5,2,6),5]):

>	plane(pl,[point(B,-6,1,3),point(C,6,7,1),point(D,-2,2,5)]):

>	geom3d:-circle(cir,[sph,pl]);

$cir$

(114)

>	detail(cir);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & cir \\ form of the object & circle3d \\ name of the center & center_cir_1 \\ coordinates of the center & [\frac{1404}{341}, \frac{1370}{341}, \frac{2304}{341}] \\ radius of the center & \frac{2 \sqrt{569129}}{341} \\ the circle lies on the plane & pl \end{array}, \begin{array}{l} name of the object & pl \\ form of the object & plane3d \\ equation of the plane & 152 + 14_x - 32_y - 12_z = 0 \end{array}$

(115)

•	coordinates - Display the coordinates of a given point

>	point(A,5,2,5);

$A$

(116)

>	coordinates(A);

$[5, 2, 5]$

(117)

•	detail - Give a detailed description of an object, or a list or set of objects

>	sphere(sph,[point(A,5,2,6),4]);

$sph$

(118)

>	detail(sph);

Warning, assume that the name of the axes are _x, _y and _z

$\begin{array}{l} name of the object & sph \\ form of the object & sphere3d \\ name of the center & A \\ coordinates of the center & [5, 2, 6] \\ radius of the sphere & 4 \\ surface area of the sphere & 64 π \\ volume of the sphere & \frac{256 π}{3} \\ equation of the sphere & {_x}^{2} + {_y}^{2} + {_z}^{2} - 10_x - 4_y - 12_z + 49 = 0 \end{array}$

(119)

•	distance - Find the distance between two given objects

>	line(ln1,[point(A,6,2,1),point(B,-2,21,1)]):

>	line(ln2,[point(C,2,1,2),point(D,3,-5,3)]):

>	distance(ln1,ln2);

$\frac{55 \sqrt{1266}}{1266}$

(120)

•	draw - Create a three-dimensional plot

>	sphere(sph,[point(A,5,2,6),4]);

$sph$

(121)

>	draw(sph);

•	dsegment - Define a directed segment

>	dsegment(dseg,[point(A,5,2,-3),point(B,-5,2,1)]);

$dseg$

(122)

>	detail(dseg);

$\begin{array}{l} name of the object & dseg \\ form of the object & dsegment3d \\ the initial and end points of the directed segment & [[5, 2, −3], [−5, 2, 1]] \end{array}$

(123)

•	faces - Return the faces of a polyhedron

>	hexahedron(hexa,point(A,6,2,-3),3);

$hexa$

(124)

>	faces(hexa);

$[[[\sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3], [\sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3], [\sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3], [\sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3]], [[- \sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3], [- \sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3]], [[\sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3], [\sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3]], [[\sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3], [\sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3]], [[\sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3], [- \sqrt{3} + 6, 2 + \sqrt{3}, \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3], [\sqrt{3} + 6, 2 - \sqrt{3}, \sqrt{3} - 3]], [[\sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 - \sqrt{3}, - \sqrt{3} - 3], [- \sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3], [\sqrt{3} + 6, 2 + \sqrt{3}, - \sqrt{3} - 3]]]$

(125)

•	facet - Define a faceting of a given polyhedron

>	facet(icofac,icosidodecahedron(ico,point(A,5,2,-4),2));

$icofac$

(126)

>	vertices(icofac);

$[[5, 2, −4], [5, \frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, −4], [\frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [- \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [- \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [5, - \frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, −4], [- \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [- \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [5, 2, \frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [5, 2, - \frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} + \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 \sqrt{5} (- \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, \frac{2 \sqrt{5} (\frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{3}{4}}}{20} - \frac{\sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}} 5^{\frac{1}{4}}}{4})}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 2, - \frac{5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} - 4], [\frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, 2, −4], [- \frac{2 5^{\frac{1}{4}} \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}{\sqrt{\frac{5}{2} + \frac{\sqrt{5}}{2}}} + 5, 2, −4]]$

(127)

•	form - Return the form of the geometric object

>	tetrahedron(t,point(A,5,2,1),3);

$t$

(128)

form(t);

$tetrahedron3d$

(129)

•	gtetrahedron - Define a general tetrahedron

>	point(A,0,0,0),point(B,1,0,0),point(C,0,0,1),point(F,0,1,0):

>	gtetrahedron(gt, [A, B, C, F]);

$gt$

(130)

form(gt);

$gtetrahedron3d$

(131)

•	incident - Return the vertices incident to a given vertex of a polyhedron

>	tetrahedron(t,point(A,0,0,0),4):

>	incident(t,2);

$[[\frac{4 \sqrt{3}}{3}, \frac{4 \sqrt{3}}{3}, \frac{4 \sqrt{3}}{3}], [- \frac{4 \sqrt{3}}{3}, \frac{4 \sqrt{3}}{3}, - \frac{4 \sqrt{3}}{3}], [- \frac{4 \sqrt{3}}{3}, - \frac{4 \sqrt{3}}{3}, \frac{4 \sqrt{3}}{3}]]$

(132)

•	intersection - Find the intersections between two or three given objects

>	plane(pl1,[point(A,5,2,6),point(B,-6,1,2),point(C,5,-6,1)]):

>	plane(pl2,[point(D,26,-7,2),point(E,1,2,9),point(F,2,1,6)]):

>	intersection(ln1,pl1,pl2);

$ln1$

(133)

>	Equation(ln1,x);

$[- \frac{622}{23} + 5104 x, \frac{187}{23} - 1328 x, 736 x]$

(134)

•	line - Define the lines

>	line(ln1,[point(A,56,2,6),point(B,2,-6,2)]);

$ln1$

(135)

>	detail(ln1);

Warning, assume that the parameter in the parametric equations is _t

Warning, assuming that the names of the axes are _x, _y, and _z

$\begin{array}{l} name of the object & ln1 \\ form of the object & line3d \\ equation of the line & [_x = 56 - 54_t,_y = 2 - 8_t,_z = 6 - 4_t] \end{array}$

(136)

•	midpoint - Find the midpoint of segment joining two points

>	segment(seg,[point(A,5,2,3),point(B,-3,2,1)]):

>	midpoint(C,seg);

$C$

(137)

>	detail(C);

$\begin{array}{l} name of the object & C \\ form of the object & point3d \\ coordinates of the point & [1, 2, 2] \end{array}$

(138)

•	parallel - Find a plane or line going through a given point or line, and parallel to a given line or plane

>	point(A,5,2,1):

>	plane(pl,[point(C,-2,3,1),point(D,7,34,6),point(E,6,-5,21)]):

>	parallel(parpl,A,pl);

$parpl$

(139)

>	Equation(parpl,[x,y,z]);

$- 2700 + 660 x - 140 y - 320 z = 0$

(140)

•	plane - Define the planes

>	plane(pl,[point(A,6,2,1),[7,4,-3]]);

$pl$

(141)

>	detail(pl);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & pl \\ form of the object & plane3d \\ equation of the plane & - 47 + 7_x + 4_y - 3_z = 0 \end{array}$

(142)

•	point - Define the points

>	point(A,[6,-43,2]);

$A$

(143)

>	detail(A);

$\begin{array}{l} name of the object & A \\ form of the object & point3d \\ coordinates of the point & [6, −43, 2] \end{array}$

(144)

•	polar - Find the polar of a given point with respect to a given sphere

>	sphere(sph,[point(A,-2,1,5),3]):

>	point(B,5,2,3):

>	polar(pol,B,sph);

$pol$

(145)

>	detail(pol);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & pol \\ form of the object & plane3d \\ equation of the plane & 14 + 7_x +_y - 2_z = 0 \end{array}$

(146)

•	pole - Find the pole of a given plane with respect to a given sphere

>	sphere(sph,[point(A,-2,1,5),3]):

>	plane(pl,[point(B,3,5,1),point(C,6,-4,2),point(D,-2,3,5)]):

>	pole(pt,pl,sph);

$pt$

(147)

>	detail(pt);

$\begin{array}{l} name of the object & pt \\ form of the object & point3d \\ coordinates of the point & [- \frac{5}{7}, \frac{23}{14}, \frac{97}{14}] \end{array}$

(148)

•	powerps - Calculate the power of a given point with respect to a given sphere

>	point(A,3,5,2):

>	sphere(sph,[point(B,6,2,1),3]):

>	powerps(A,sph);

$10$

(149)

•	radius - Find the radius of a given object

>	hexahedron(hexa,point(A,6,2,-6),3):

>	radius(hexa);

$3$

(150)

•	randpoint - Generate a random point in a given range, on a line, a plane, or a sphere

>	line(ln1,[point(A,6,2,2),point(B,-6,2,1)]):

>	randpoint(C,ln1);

$C$

(151)

•	schlafli - Return the schlafli symbol of a given polyhedron

>	tetrahedron(t,point(A,-8,9,3),3);

$t$

(152)

>	schlafli(t);

$[3, 3]$

(153)

•	segment - Define a segment

>	segment(seg,point(A,5,2,6),point(B,-6,2,-9));

$seg$

(154)

>	detail(seg);

$\begin{array}{l} name of the object & seg \\ form of the object & segment3d \\ the 2 ends of the segment & [[5, 2, 6], [−6, 2, −9]] \end{array}$

(155)

•	sides - The sides of a given triangle, a regular polyhedron, an Archimedean solid

>	triangle(tri,[point(A,5,2,6),point(B,-6,2,1),point(C,3,-9,0)]):

>	sides(tri);

$[\sqrt{146}, \sqrt{203}, \sqrt{161}]$

(156)

•	sphere - Define the sphere

>	sphere(sph,[point(A,6,6,7),3]);

$sph$

(157)

>	detail(sph);

Warning, assume that the name of the axes are _x, _y and _z

$\begin{array}{l} name of the object & sph \\ form of the object & sphere3d \\ name of the center & A \\ coordinates of the center & [6, 6, 7] \\ radius of the sphere & 3 \\ surface area of the sphere & 36 π \\ volume of the sphere & 36 π \\ equation of the sphere & {_x}^{2} + {_y}^{2} + {_z}^{2} - 12_x - 12_y - 14_z + 112 = 0 \end{array}$

(158)

•	stellate - Define a stellation of a given polyhedron

>	stellate(stelicos,icosahedron(icos,point(A,6,2,2),3),25);

$stelicos$

(159)

•	tname - Find the name of the parameter used in the parametric equations of the given line

>	_EnvTName := 't';

$_EnvTName ≔ t$

(160)

>	line(ln1,[point(A,5,2,1),point(B,-2,1,9)]):

>	detail(ln1);

Warning, assuming that the names of the axes are _x, _y, and _z

$\begin{array}{l} name of the object & ln1 \\ form of the object & line3d \\ equation of the line & [_x = 5 - 7 t,_y = 2 - t,_z = 1 + 8 t] \end{array}$

(161)

>	tname(ln1);

$t$

(162)

•	triangle - Define the triangles

>	triangle(tri,[point(A,65,2,1),point(B,-2,1,5),point(C,-6,-2,-1)]);

$tri$

(163)

>	detail(tri);

$\begin{array}{l} name of the object & tri \\ form of the object & triangle3d \\ the 3 vertices & [[65, 2, 1], [−2, 1, 5], [−6, −2, −1]] \end{array}$

(164)

•	vertices - Return the vertices of a polyhedron, parallelepiped

>	triangle(tri,[point(A,5,2,6),point(B,8,-3,2),point(C,-6,2,-4)]):

>	vertices(tri);

$[[5, 2, 6], [8, −3, 2], [−6, 2, −4]]$

(165)

•	volume - Calculate the volume of a sphere, regular polyhedron

>	sphere(sph,[point(A,6,2,3),3]);

$sph$

(166)

>	volume(sph);

$36 π$

(167)

•	xcoord - Find the ``x''-coordinate of a given point

>	point(A,5,2,1);

$A$

(168)

>	xcoord(A);

$5$

(169)

•	xname - Find the name of the x-axis used to define an object

>	sphere(sph,[point(A,6,2,-5),4]):

>	Equation(sph,[x,y,z]);

$x^{2} + y^{2} + z^{2} - 12 x - 4 y + 10 z + 49 = 0$

(170)

>	xname(sph);

$x$

(171)

•	ycoord - Find the ``y''-coordinate of a given point

>	point(A,5,2,1);

$A$

(172)

>	ycoord(A);

$2$

(173)

•	yname - Find the name of the y-axis used to define an object

>	sphere(sph,[point(A,6,2,-5),4]):

>	Equation(sph,[x,y,z]);

$x^{2} + y^{2} + z^{2} - 12 x - 4 y + 10 z + 49 = 0$

(174)

>	yname(sph);

$y$

(175)

•	zcoord - Find the ``z''-coordinate of a given point

>	point(A,5,2,1);

$A$

(176)

>	zcoord(A);

$1$

(177)

•	zname - Find the name of the z-axis used to define an object

>	sphere(sph,[point(A,6,2,-5),4]):

>	Equation(sph,[x,y,z]);

$x^{2} + y^{2} + z^{2} - 12 x - 4 y + 10 z + 49 = 0$

(178)

>	zname(sph);

$z$

(179)

Archimedean solids

•	Archimedean - Define an Archimedean solid

>	Archimedean(argon,_t([5,3]),point(A,5,2,6),3);

$argon$

(180)

>	form(argon);

$TruncatedDodecahedron3d$

(181)

•	GreatRhombicuboctahedron - Define an Archimedean solid

>	GreatRhombiicosidodecahedron(gon,point(A,-5,2,1),3);

$gon$

(182)

>	form(gon);

$RhombitruncatedIcosidodecahedron3d$

(183)

•	GreatRhombiicosidodecahedron - Define an Archimedean solid

>	GreatRhombiicosidodecahedron(gon,point(A,-5,2,1),3);

$gon$

(184)

>	form(gon);

$RhombitruncatedIcosidodecahedron3d$

(185)

•	IsArchimedean - Check if the given polyhedron is an Archimedean solid

>	Archimedean(argon,_t([5,3]),point(A,5,2,6),3);

$argon$

(186)

>	IsArchimedean(argon);

$true$

(187)

•	SmallRhombicuboctahedron - Define an Archimedean solid

>	SmallRhombicuboctahedron(gon,point(A,5,21,-9),2);

$gon$

(188)

>	form(gon);

$SmallRhombicuboctahedron3d$

(189)

•	SmallRhombiicosidodecahedron - Define an Archimedean solid

>	SmallRhombiicosidodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(190)

>	form(gon);

$SmallRhombiicosidodecahedron3d$

(191)

•	SnubCube - Define an Archimedean solid

>	SnubCube(gon,point(A,-6,1,-8),3);

$gon$

(192)

>	form(gon);

$SnubCube3d$

(193)

•	SnubDodecahedron - Define an Archimedean solid

>	SnubDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(194)

>	form(gon);

$SnubDodecahedron3d$

(195)

•	TruncatedCuboctahedron - Define an Archimedean solid

>	TruncatedCuboctahedron(gon,point(A,-6,1,-8),3);

$gon$

(196)

>	form(gon);

$RhombitruncatedCuboctahedron3d$

(197)

•	TruncatedDodecahedron - Define an Archimedean solid

>	TruncatedDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(198)

>	form(gon);

$TruncatedDodecahedron3d$

(199)

•	TruncatedHexahedron - Define an Archimedean solid

>	TruncatedHexahedron(gon,point(A,-6,1,-8),3);

$gon$

(200)

>	form(gon);

$TruncatedHexahedron3d$

(201)

•	TruncatedIcosahedron - Define an Archimedean solid

>	TruncatedIcosahedron(gon,point(A,-6,1,-8),3);

$gon$

(202)

>	form(gon);

$TruncatedIcosahedron3d$

(203)

•	TruncatedIcosidodecahedron - Define an Archimedean solid

>	TruncatedIcosidodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(204)

>	form(gon);

$RhombitruncatedIcosidodecahedron3d$

(205)

•	TruncatedTetrahedron - Define an Archimedean solid

>	TruncatedTetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(206)

>	form(gon);

$TruncatedTetrahedron3d$

(207)

•	cuboctahedron - Define an Archimedean solid

>	TruncatedTetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(208)

>	form(gon);

$TruncatedTetrahedron3d$

(209)

•	icosidodecahedron - Define an Archimedean solid

>	icosidodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(210)

>	form(gon);

$icosidodecahedron3d$

(211)

Quasi-regular Polyhedra

•	IsQuasi - Check if the given polyhedron is quasi-regular

>	QuasiRegularPolyhedron(QRpoly,[[3],[4]],point(A,5,2,1),3):

>	IsQuasi(QRpoly);

$true$

(212)

Regular Polyhedra (geom3d cont'd...)

•	GreatDodecahedron - Define a regular polyhedron

>	GreatDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(213)

>	form(gon);

$GreatDodecahedron3d$

(214)

•	GreatIcosahedron - Define a regular polyhedron

>	GreatIcosahedron(gon,point(A,-6,1,-8),3);

$gon$

(215)

>	form(gon);

$GreatIcosahedron3d$

(216)

•	GreatStellatedDodecahedron - Define a regular polyhedron

>	GreatStellatedDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(217)

>	form(gon);

$GreatStellatedDodecahedron3d$

(218)

•	InRadius - Return the in-radius of a regular polyhedron

>	GreatStellatedDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(219)

>	InRadius(gon);

$\frac{5^{\frac{3}{4}} \sqrt{3}}{5 {(\frac{1}{2} + \frac{\sqrt{5}}{2})}^{\frac{3}{2}}}$

(220)

•	IsRegular - Check if the given polyhedron is regular

>	GreatStellatedDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(221)

>	IsRegular(gon);

$true$

(222)

•	MidRadius - Return the mid-radius of a regular polyhedron

>	GreatIcosahedron(gon,point(A,-6,1,-8),3);

$gon$

(223)

>	MidRadius(gon);

$\frac{3 5^{\frac{3}{4}}}{5 \sqrt{\frac{1}{2} + \frac{\sqrt{5}}{2}}}$

(224)

•	RegularPolyhedron - Define a regular polyhedron

>	RegularPolyhedron(gon,[5/2,5],point(A,-6,1,-8),3);

$gon$

(225)

>	IsRegular(gon);

$true$

(226)

•	SmallStellatedDodecahedron - Define a regular polyhedron

>	SmallStellatedDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(227)

>	form(gon);

$SmallStellatedDodecahedron3d$

(228)

•	cube - Define a regular polyhedron

>	cube(gon,point(A,-6,1,-8),3);

$gon$

(229)

>	form(gon);

$hexahedron3d$

(230)

•	dodecahedron - Define a regular polyhedron

>	dodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(231)

>	form(gon);

$dodecahedron3d$

(232)

•	hexahedron - Define a regular polyhedron

>	hexahedron(gon,point(A,-6,1,-8),3);

$gon$

(233)

>	form(gon);

$hexahedron3d$

(234)

•	icosahedron - Define a regular polyhedron

>	icosahedron(gon,point(A,-6,1,-8),3);

$gon$

(235)

>	form(gon);

$icosahedron3d$

(236)

•	octahedron - Define a regular polyhedron

>	octahedron(gon,point(A,-6,1,-8),3);

$gon$

(237)

>	form(gon);

$octahedron3d$

(238)

•	tetrahedron - Define a regular tetrahedron

>	tetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(239)

>	form(gon);

$tetrahedron3d$

(240)

Duality

•	HexakisIcosahedron Define the reciprocal polyhedra of the icosahedron

>	HexakisIcosahedron(gon,point(A,-6,1,-8),3);

$gon$

(241)

>	form(gon);

$HexakisIcosahedron3d$

(242)

•	HexakisOctahedron - Define the reciprocal polyhedra of the octahedron

>	HexakisOctahedron(gon,point(A,-6,1,-8),3);

$gon$

(243)

>	form(gon);

$HexakisOctahedron3d$

(244)

•	PentagonalHexacontahedron - Define the reciprocal polyhedra of the hexacontahedron

>	PentagonalHexacontahedron(gon,point(A,-6,1,-8),3);

$gon$

(245)

>	form(gon);

$PentagonalHexacontahedron3d$

(246)

•	PentagonalIcositetrahedron - Define the reciprocal polyhedra of the icositetrahedron

>	PentagonalIcositetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(247)

>	form(gon);

$PentagonalIcositetrahedron3d$

(248)

•	PentakisDodecahedron - Define the reciprocal polyhedra of the dodecahedron

>	PentakisDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(249)

>	form(gon);

$PentakisDodecahedron3d$

(250)

•	RhombicDodecahedron - Define the reciprocal polyhedra of the dodecahedron

>	RhombicDodecahedron(gon,point(A,-6,1,-8),3);

$gon$

(251)

>	form(gon);

$RhombicDodecahedron3d$

(252)

•	RhombicTriacontahedron - Define the reciprocal polyhedra of the triacontahedron

>	RhombicTriacontahedron(gon,point(A,-6,1,-8),3);

$gon$

(253)

>	form(gon);

$RhombicTriacontahedron3d$

(254)

•	TetrakisHexahedron - Define the reciprocal polyhedra of the hexahedron

>	TetrakisHexahedron(gon,point(A,-6,1,-8),3);

$gon$

(255)

>	form(gon);

$TetrakisHexahedron3d$

(256)

•	TrapezoidalHexecontahedron - Define the reciprocal polyhedra of the hexacontahedron

>	TrapezoidalHexecontahedron(gon,point(A,-6,1,-8),3);

$gon$

(257)

>	form(gon);

$TrapezoidalHexecontahedron3d$

(258)

•	TrapezoidalIcositetrahedron - Define the reciprocal polyhedra of the icositetrahedron

>	TrapezoidalIcositetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(259)

>	form(gon);

$TrapezoidalIcositetrahedron3d$

(260)

•	TriakisIcosahedron - Define the reciprocal polyhedra of the icosahedron

>	TriakisIcosahedron(gon,point(A,-6,1,-8),3);

$gon$

(261)

>	form(gon);

$TriakisIcosahedron3d$

(262)

•	TriakisOctahedron - Define the reciprocal polyhedra of the octahedron

>	TriakisOctahedron(gon,point(A,-6,1,-8),3);

$gon$

(263)

>	form(gon);

$TriakisOctahedron3d$

(264)

•	TriakisTetrahedron - Define the reciprocal polyhedra of the tetrahedron

>	TriakisTetrahedron(gon,point(A,-6,1,-8),3);

$gon$

(265)

>	form(gon);

$TriakisTetrahedron3d$

(266)

•	duality - Define the dual of a given polyhedron

>	RegularPolyhedron(gon,[5/2,5],point(A,-6,1,-8),3);

$gon$

(267)

>	duality(dgon,gon,sphere(sph,[A,MidRadius(gon)]));

$dgon$

(268)

Transformation

•	GlideReflect transformation that can be applied directly to a specific geometric object

•	GlideReflection

•	RotatoryReflect - A transformation without specifying the object to be applied

•	RotaryReflection

•	ScrewDisplace - A transformation without specifying the object to be applied

•	ScrewDisplacement

•	StretchRotate - A transformation without specifying the object to be applied

•	dilate - A transformation without specifying the object to be applied

Define t1 which is a homothety with ratio 3, center of homothety (0,0,0)

>	t1 := dilate(3,point(o,0,0,0));

$t1 ≔ dilate (3, o)$

(269)

•	homology - Find the space homology of a geometric object

>	plane(pl,[point(A,4,6,2),point(B,1,2,-3),point(C,-5,2,-9)]):

>	point(D,3,0,0):

>	line(ln1,[point(E,0,0,0),point(F,6,0,0)]):

>	homology(newform,pl,3,D,30,ln1);

$newform$

(270)

>	detail(newform);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & newform \\ form of the object & plane3d \\ equation of the plane & 8_x +_y (4 \cos (30) + 8 \sin (30)) +_z (- 8 \cos (30) + 4 \sin (30)) - \frac{8463631539}{1250000000} - \frac{81536368461 {\cos (30)}^{2}}{1250000000} - \frac{81536368461 {\sin (30)}^{2}}{1250000000} = 0 \end{array}$

(271)

•	homothety - Find the homothety of a geometric object

>	point(A,-5,2,0), point(B,2,-6,1):

>	line(ln1,[A,B]):

>	homothety(newform,ln1,3,point(C,7,8,4));

$newform$

(272)

>	detail(newform);

Warning, assuming that the names of the axes are _x, _y, and _z

$\begin{array}{l} name of the object & newform \\ form of the object & line3d \\ equation of the line & [_x = - 29 + \frac{5129391309 t}{400000000},_y = - 10 - \frac{732770187 t}{50000000},_z = - 8 + \frac{732770187 t}{400000000}] \end{array}$

(273)

•	inverse - Find the inverse of a given product of transformations

>	t1 := dilate(3,point(o,0,0,0));

$t1 ≔ dilate (3, o)$

(274)

>	point(A,1,0,0), point(B,0,0,1):

>	line(l1,[o,A]), line(l2,[o,B]):

>	plane(p,[l1,l2]):

>	dsegment(AB,[A,B]):

>	t2 := GlideReflect(p,AB);

$t2 ≔ GlideReflect (p, AB)$

(275)

>	t3 := ScrewDisplace(Pi/2,line(l3,[A,B]),AB);

$t3 ≔ ScrewDisplace (\frac{π}{2}, l3, AB)$

(276)

>	q1 := transprod(t2^t1,t3);

$q1 ≔ transprod (dilate (\frac{1}{3}, o), reflect (p), translate (AB), dilate (3, o), rotate (\frac{π}{2}, l3), translate (AB))$

(277)

>	q2 := inverse(q1);

$q2 ≔ transprod (translate (_AB), rotate (\frac{3 π}{2}, l3), dilate (\frac{1}{3}, o), translate (_AB), reflect (p), dilate (3, o))$

(278)

•	inversion - Find the inversion of a point, plane, or sphere with respect to a given sphere

>	plane(pl,[point(A,4,-6,2),[5,2,1]]):

>	sphere(sph,[point(B,6,2,1),5]):

>	geom3d[inversion](sph1,pl,sph);

$sph1$

(279)

>	detail(sph1);

Warning, assume that the name of the axes are _x, _y and _z

$\begin{array}{l} name of the object & sph1 \\ form of the object & sphere3d \\ name of the center & center_sph1_1 \\ coordinates of the center & [\frac{7}{2}, 1, \frac{1}{2}] \\ radius of the sphere & \frac{\sqrt{30}}{2} \\ surface area of the sphere & 30 π \\ volume of the sphere & 5 π \sqrt{30} \\ equation of the sphere & {_x}^{2} + {_y}^{2} + {_z}^{2} - 7_x - 2_y -_z + 6 = 0 \end{array}$

(280)

•	projection - Find the projection of an object on the other object

>	point(A,3,6,1), point(B,-7,6,-9):

>	plane(pl,[B,[5,2,1]]):

>	projection(projectpt,A,pl);

$projectpt$

(281)

>	detail(projectpt);

$\begin{array}{l} name of the object & projectpt \\ form of the object & point3d \\ coordinates of the point & [−7, 2, −1] \end{array}$

(282)

•	reflect - A transformation without specifying the object to be applied

>	tetrahedron(t,point(A,3,6,2),3):

>	ref := reflect(line(ln1,[point(B,3,2,1),point(C,7,-9,2)]));

$ref ≔ reflect (ln1)$

(283)

•	reflection - Transformations that can be applied directly to a specific geometric object

>	point(A,5,2,1), point(B,-7,9,2), point(C,-3,-7,-9):

>	sphere(sph,[C,3]):

>	line(ln1,[A,B]):

>	reflection(sph1,sph,ln1);

$sph1$

(284)

•	rotate - A transformation without specifying the object to be applied

>	point(A,-9,7,3):

>	point(B,6,3,7):

>	line(ln1,[A,B]):

>	rot := rotate(Pi,ln1);

$rot ≔ rotate (π, ln1)$

(285)

•	rotation - Transformations that can be applied directly to a specific geometric object

>	plane(pl,[point(A,-9,7,3),[3,-9,2]]):

>	point(B,6,3,7):

>	line(ln1,[A,B]):

>	rotation(pl1,pl,Pi,ln1);

$pl1$

(286)

>	detail(pl1);

Warning, assuming that the names of the axes are _x, _y and _z

$\begin{array}{l} name of the object & pl1 \\ form of the object & plane3d \\ equation of the plane & \frac{5290}{257} + \frac{1899_x}{257} + \frac{1601_y}{257} + \frac{198_z}{257} = 0 \end{array}$

(287)

•	transform - Apply the ``result'' transformation to a specific geometric object

>	tetrahedron(t,point(A,3,6,2),3):

>	ref := reflect(line(ln1,[point(B,3,2,1),point(C,7,-9,2)]));

$ref ≔ reflect (ln1)$

(288)

>	transform(t4,t,ref);

$t4$

(289)

form(t4);

$tetrahedron3d$

(290)

•	translate - A transformation without specifying the object to be applied

>	point(A,5,2,-8), point(B,3,5,-1):

>	dsegment(dseg,A,B):

>	trans := translate(dseg);

$trans ≔ translate (dseg)$

(291)

•	translation - Transformations that can be applied directly to a specific geometric object

>	point(A,5,2,-8), point(B,3,5,-1):

>	dsegment(dseg,A,B):

>	triangle(tri,[point(C,5,2,-9),point(D,3,2,1),point(E,-9,3,5)]);

$tri$

(292)

>	translation(tri1,tri,dseg);

$tri1$

(293)

>	detail(tri1);

$\begin{array}{l} name of the object & tri1 \\ form of the object & triangle3d \\ the 3 vertices & [[3, 5, −2], [1, 5, 8], [−11, 6, 12]] \end{array}$

(294)

•	transprod - Converts a given transformation or product of transformations into a product of three ``primitive'' transformations (translate, rotate and dilate)

>	point(A,5,2,-8), point(B,3,5,-1):

>	dsegment(dseg,A,B):

>	trans := translate(dseg):

>	line(ln1,[A,B]):

>	rot := rotate(Pi,ln1);

$rot ≔ rotate (π, ln1)$

(295)

>	prod := transprod(trans,rot);

$prod ≔ transprod (translate (dseg), rotate (π, ln1))$

(296)

>	tetrahedron(t,point(C,6,2,6),2);

$t$

(297)

>	transform(t5,t,prod);

$t5$

(298)

form(t5);

$tetrahedron3d$

(299)

Groebner - The Groebner package and Groebner bases.

•	fglm - Generalized FGLM algorithm

•	gbasis - Reduced Groebner basis

•	gsolve - Preprocess an algebraic system for solving

•	hilbertdim - The Hilbert dimension of an ideal

•	hilbertpoly - The Hilbert polynomial of an ideal

•	hilbertseries - The Hilbert series of an ideal

•	inter_reduce - Fully inter-reduce a list of polynomials

•	is_finite - Decide if a given algebraic system has (at most) finitely many solutions

•	is_solvable - Decide if a given algebraic system is algebraically consistent

•	leadcoeff - The leading coefficient of a polynomial

•	leadmon - The leading monomial of a polynomial

•	leadterm - The leading term of a polynomial

•	normalf - Normal form of a polynomial modulo an ideal

•	pretend_gbasis - Add a Groebner basis to the list of known ones

•	reduce - Full reduction of a polynomial

•	spoly - The S-polynomial of two skew polynomials

•	termorder - Create a term order

•	testorder - Test whether two terms are in increasing order with respect to a given term order

•	univpoly - The univariate polynomial of lowest degree in an ideal

Ore_algebra - The Ore_algebra package and Ore algebras.

For examples, please see the Ore Algebra example worksheet.

•	Ore_to_DESol - Convert a differential operator to a DESol structure

•	Ore_to_RESol - Convert a shift operator to a DESol structure

•	Ore_to_diff - Convert a differential operator to a differential equation

•	Ore_to_shift - Convert a shift operator to a recurrence equation

•	annihilators - Skew lcm of a pair of operators

•	applyopr - Apply an operator to a function

•	diff_algebra - Create an algebra of linear differential operators

•	poly_algebra - Create an algebra of commutative polynomials

•	qshift_algebra - Create an algebra of linear q-difference operators

•	rand_skew_poly - Random skew polynomial generator

•	shift_algebra - Create an algebra of linear difference operators

•	skew_algebra - Declare an Ore algebra

•	skew_elim - Skew elimination of an indeterminate

•	skew_gcdex - Extend skew gcd computation

•	skew_pdiv - Skew pseudo-division

•	skew_power - Power of an Ore algebra

•	skew_prem - Skew pseudo-remainder

•	skew_product - Inner product of an Ore algebra

PDEtools - Solving Partial Differential Equations

•	charstrip - Find the characteristic strip corresponding to a given, first order PDE

restart;

>	PDE := xdiff(psi(x,y,z),z)-psi(x,y,z)+y^2diff(psi(x,y,z),y) = 0;

$PDE ≔ x (\frac{\partial}{\partial z} ψ (x, y, z)) - ψ (x, y, z) + y^{2} (\frac{\partial}{\partial y} ψ (x, y, z)) = 0$

(300)

>	PDEtools[charstrip](PDE,psi(x,y,z));

$\{\frac{&DifferentialD;}{&DifferentialD;_s} ψ (_s) = ψ (_s), \frac{&DifferentialD;}{&DifferentialD;_s} x (_s) = 0, \frac{&DifferentialD;}{&DifferentialD;_s} y (_s) = {y (_s)}^{2}, \frac{&DifferentialD;}{&DifferentialD;_s} z (_s) = x (_s)\}$

(301)

•	dchange - Change variables in mathematical expressions

>	PDE := 1+psi(x,y)^2+ydiff(psi(x,y),x)-xdiff(psi(x,y),y);

$PDE ≔ 1 + {ψ (x, y)}^{2} + y (\frac{\partial}{\partial x} ψ (x, y)) - x (\frac{\partial}{\partial y} ψ (x, y))$

(302)

>	TR := {x=rcos(phi), y=rsin(phi)};

$TR ≔ \{x = r \cos (φ), y = r \sin (φ)\}$

(303)

>	PDEtools[dchange](TR, PDE, simplify);

${ψ (φ, r)}^{2} + 1 - \frac{\partial}{\partial φ} ψ (φ, r)$

(304)

>	II := int(psi(r),r):

>	eq := useintat(II) = II;

$eq ≔ \int_{}^{r} ψ (_a) &DifferentialD;_a = \int ψ (r) &DifferentialD; r$

(305)

>	TR2 := {r=sqrt(y(x)^2+x^2),phi(r)=arctan(y(x)/x)};

$TR2 ≔ \{r = \sqrt{{y (x)}^{2} + x^{2}}, φ (r) = \arctan (\frac{y (x)}{x})\}$

(306)

>	PDEtools[dchange](TR2,eq,known=psi);

$\int_{}^{\sqrt{{y (x)}^{2} + x^{2}}} ψ (_a) &DifferentialD;_a = \int \frac{ψ (\sqrt{{y (x)}^{2} + x^{2}}) (2 y (x) (\frac{&DifferentialD;}{&DifferentialD; x} y (x)) + 2 x)}{2 \sqrt{{y (x)}^{2} + x^{2}}} &DifferentialD; x$

(307)

•	mapde - Map a PDE to another PDE for easier solving

>	PDE1 := x^2diff(psi(x,y),x,x)+2yxdiff(psi(x,y),x,y)+y^2*diff(psi(x,y),y,y);

$PDE1 ≔ x^{2} (\frac{\partial^{2}}{\partial x^{2}} ψ (x, y)) + 2 y x (\frac{\partial^{2}}{\partial x \partial y} ψ (x, y)) + y^{2} (\frac{\partial^{2}}{\partial y^{2}} ψ (x, y))$

(308)

>	PDEtools[mapde](PDE1, psi, canop);

${_ξ1}^{2} (\frac{\partial^{2}}{\partial {_ξ1}^{2}} ψ (_ξ1,_ξ2)) where \{_ξ1 = x,_ξ2 = \frac{y}{x}\}$

(309)

•	difforder - Evaluate the differential order of an expression

>	eq := diff(psi(x,y),x$2,y$3);

$eq ≔ \frac{\partial^{5}}{\partial x^{2} \partial y^{3}} ψ (x, y)$

(310)

>	PDEtools[difforder](eq), PDEtools[difforder](eq,x), PDEtools[difforder](eq,y);

$5, 2, 3$

(311)

•	pdsolve - Find analytical solutions for PDEs

>	PDE := Diff(r^2diff(Phi(r,theta,phi),r),r) + 1/sin(theta)Diff(sin(theta)diff(Phi(r,theta,phi),theta),theta) + 1/sin(theta)^2diff(diff(Phi(r,theta,phi),phi),phi) = 0;

$PDE ≔ \frac{\partial}{\partial r} (r^{2} (\frac{\partial}{\partial r} Φ (r, θ, φ))) + \frac{\frac{\partial}{\partial θ} (\sin (θ) (\frac{\partial}{\partial θ} Φ (r, θ, φ)))}{\sin (θ)} + \frac{\frac{\partial^{2}}{\partial φ^{2}} Φ (r, θ, φ)}{{\sin (θ)}^{2}} = 0$

(312)

>	pdsolve(PDE);

$Φ (r, θ, φ) = f__1 (r) f__2 (θ) f__3 (φ) where [\{\frac{{&DifferentialD;}^{2}}{&DifferentialD; r^{2}} f__1 (r) = \frac{f__1 (r) {_c}_{1}}{r^{2}} - \frac{2 (\frac{&DifferentialD;}{&DifferentialD; r} f__1 (r))}{r}, \frac{{&DifferentialD;}^{2}}{&DifferentialD; θ^{2}} f__2 (θ) = - f__2 (θ) {_c}_{1} + \frac{f__2 (θ) {_c}_{2}}{{\sin (θ)}^{2}} - \frac{\cos (θ) (\frac{&DifferentialD;}{&DifferentialD; θ} f__2 (θ))}{\sin (θ)}, \frac{{&DifferentialD;}^{2}}{&DifferentialD; φ^{2}} f__3 (φ) = - f__3 (φ) {_c}_{2}\}]$

(313)

•	splitstrip - See charstrip

>	PDE := xdiff(psi(x,y,z),z)-psi(x,y,z)+y^2diff(psi(x,y,z),y)=0;

$PDE ≔ x (\frac{\partial}{\partial z} ψ (x, y, z)) - ψ (x, y, z) + y^{2} (\frac{\partial}{\partial y} ψ (x, y, z)) = 0$

(314)

>	PDEtools[splitstrip](PDE,psi(x,y,z));

$\{\{\frac{&DifferentialD;}{&DifferentialD;_s} ψ (_s) = ψ (_s)\}, \{\frac{&DifferentialD;}{&DifferentialD;_s} y (_s) = {y (_s)}^{2}\}, \{\frac{&DifferentialD;}{&DifferentialD;_s} x (_s) = 0, \frac{&DifferentialD;}{&DifferentialD;_s} z (_s) = x (_s)\}\}$

(315)

•	splitsys - Split sets of algebraic equations

>	sys := {x = r(x)cos(phi(x)), y(x) = r(x)sin(phi(x)), diff(psi(x),x) = cos(eta(x)), diff(eta(x),x) = psi(x)};

$sys ≔ \{x = r (x) \cos (φ (x)), \frac{&DifferentialD;}{&DifferentialD; x} η (x) = ψ (x), \frac{&DifferentialD;}{&DifferentialD; x} ψ (x) = \cos (η (x)), y (x) = r (x) \sin (φ (x))\}$

(316)

>	PDEtools[splitsys](sys,{psi,eta,r,phi}(x));

$\{x = r (x) \cos (φ (x)), y (x) = r (x) \sin (φ (x))\}, \{\frac{&DifferentialD;}{&DifferentialD; x} η (x) = ψ (x), \frac{&DifferentialD;}{&DifferentialD; x} ψ (x) = \cos (η (x))\}$

(317)

Download Help Document

Maple

Maple Add-Ons

Math Success Platform

Math success in the age of AI

Maple Flow

MapleSim

Maple MCP

The math plugin for your LLM

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

Online Help

All Products Maple MapleSim

Maple

Powerful math software that is easy to use

Maple Add-Ons

Math Success Platform

Math success in the age of AI

Maple Flow

Engineering calculations & documentation

MapleSim

Advanced System Level Modeling

Maple MCP

The math plugin for your LLM

Consulting Services

Maple T.A. and Möbius

Education

Industries

Automotive and Aerospace

Robotics

Machine Design & Industrial Automation

Other

Application Areas

Product Pricing

Purchasing

Institutional Student Licensing

Maplesoft Elite Maintenance (EMP)

Support

Product Training

Online Product Help

Webinars & Events

Publications

Content Hubs

Examples & Applications

Community

About Maplesoft

Media Center

User Community

Contact

Online Help

All Products Maple MapleSim
