The parallelepiped command creates a three-dimensional plot data object, which when displayed is a parallelepiped positioned at p, having edges given by the vectors u, v, and w.

The plot data object produced by the parallelpiped command can be used in a PLOT3D data structure, or displayed using the plots:-display command.

Remaining arguments are interpreted as options, which are specified as equations of the form option = value. For more information, see plottools and plot3d/option.

$\mathrm{with}\left(\mathrm{plottools}\right)\:$

$\mathrm{with}\left(\mathrm{plots}\right)\:$

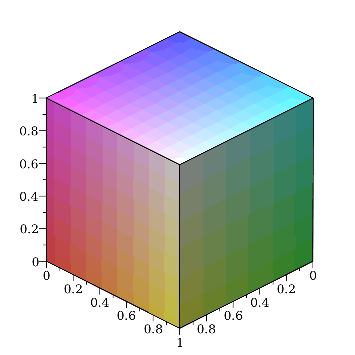

$\mathrm{display}\left(\mathrm{parallelepiped}\left(\left[1\,0\,0\right]\,\left[0\,1\,0\right]\,\left[0\,0\,1\right]\right)\,\mathrm{orientation}=\left[45\,60\right]\right)$

$\mathrm{display}\left(\mathrm{parallelepiped}\left(\left[0\,0\,1\right]\,\left[0\,1\,1\right]\,\left[1\,1\,1\right]\,\left[0\,1\,0\right]\right)\,\mathrm{orientation}=\left[-50\,70\right]\right)$
