Viewing Snapshots

View saved snapshots in the Settings tab.

To view the snapshots for your model:

1.

Click the Simulation Settings tab ( .

2.

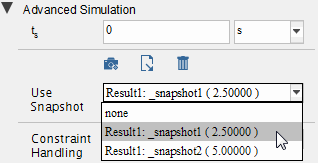

In the Advanced Simulation section, saved snapshots are found in the Use Snapshot list.  Each entry is of the form StoredResultName:SnapshotName (SnapshotTime).



Note:

•

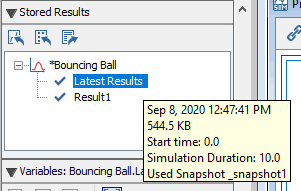

In the Stored Results palette of the Simulation Results tab, the summary for each stored simulation result contains snapshot information (if a snapshot was used in the simulation).  To see the summary, hover over a result and view the tooltip containing summary information.
