Setting Curve Colors
Go to Maple Portal
Changing Colors Interactively—Existing Plots
Setting the Colors in Advance
Changing the Default Colors
Learn how to control the color of curves in 2-D plots. By default, Maple selects the color of each new curve for you, but you have the ability to change the color, determine the color choice in advance, or even modify the default color sequence. This document will also explain how to access the wide variety of colors choices.
If the plot is already in your document, use the Context Panel to change its appearance. To change the color of a curve on a 2-D plot, first click on the curve you wish to change. The curve will be highlighted. See Figure 1. When the curve is highlighted, from the Context Panel, select Color, and then choose the color from the list.

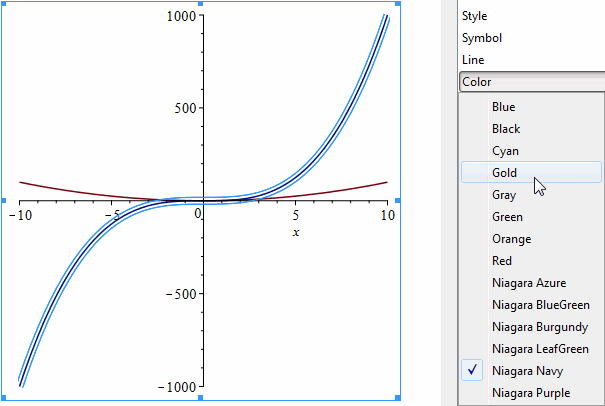

Figure 1 - Changing the color of the selected curve
Tip: It is essential that the curve is selected. If your change appears to have no visible effect, it is most likely because the curve was not selected first. Select the curve (it will be highlighted, as shown above), and try again.
If you already know which colors you wish to use, you can set the colors in advance, before the plot is created. Doing so results in a plot that will always use the colors you asked for, even if the document is re-executed.
Using the Plot Builder
The plot builder can be used to set various properties of the plot before its creation. Exter an expression. From the Context Panel, select Plot Builder. Select 2-D plot. Then click Color Options. From there, you can select a color palette, color, background color, axes color and more. The available options vary depending on the plot type you have chosen. See Figure 2.

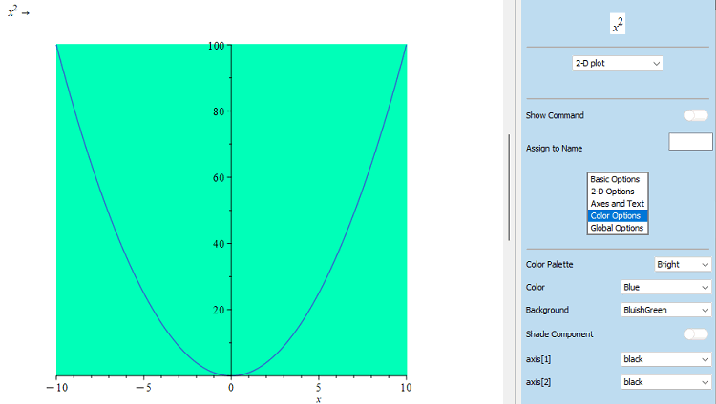

Figure 2: Setting colors with the Plot Builder Options dialog
Choose a color from the drop-down list or select a color palette first. For a visualization of the colors in each palette, see Color Collections and Colormaps for Use with Plots. In Figure 2, the Bright color palette was selected. Both the curve color and the background color were then selected from this palette.
Figure 3: The Bright color palette
Tip: Since the Plot Builder lets you select different color options in the Plot Builder window and view the updated plot, it's easy to modify the plot until you like the result. If you might want to reuse your plot or create variations of it, you can choose to view the command used to create the plot (in the Plot Builder window, select Show Command).
Using the plot command

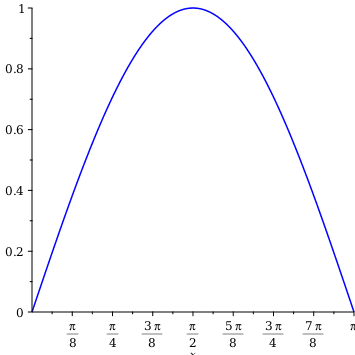

You can pass in a color or list of colors to the plot command. For a single curve,
plotsinx, x=0..π, color=Blue

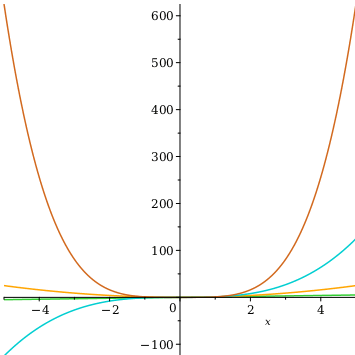

If you have more then one curve, put the curves in a list, and the colors in a corresponding list:
plotx, x2, x3, x4, x=−5..5, color=LimeGreen, Orange, DarkTurquoise,Chocolate
The color=colorname option can be used with most plotting commands, in addition to the plot command itself. For more inforation, see Plot Color Option.
Note: The color names are given as strings in double quotes ("Blue"). This is the new form for color names. In earlier releases, a more limited number of colors were available and were given as symbols, often were enclosed in quotes ('blue') to avoid evaluation. For backwards compatibility, this form will still work with the old color names, but new color names must be strings.
For the complete list of valid color names, including the mapping from the old names to the new names, see plot/colornames.
Tip: Maple also accepts the keyword "colour" as a valid alternative spelling.
Maple follows a standard list of colors, choosing the next color in the list for the next curve on that set of axes. The default color choices can be seen by calling the plots[setcolors] command with no arguments.
To change the default list, provide a new list of colors.

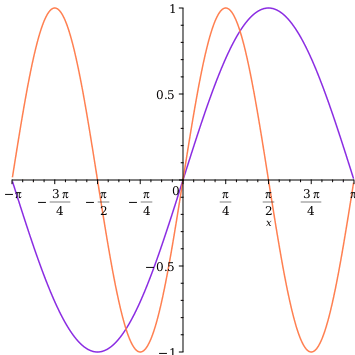

Now plots will use the new color list.
plotsinx,sin2 x, x=−π..π

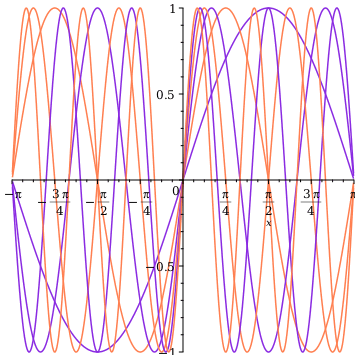

Note: If you have more curves then colors in your list, those colors will be used again. Maple cycles through the list as often as required.
To reset the color list to the default colors, use:
You can specify a list of color names or a palette. See plots:-setcolors for more information.
