LieAlgebras[ApplyHomomorphism] - apply a Lie algebra homomorphism to a vector, form or tensor

Calling Sequences

     ApplyHomomorphism(φ, T, keyword)

Parameters

     φ          - a linear transformation from a Lie algebra 𝔤 to another Lie algebra 𝔥

     T        - a vector, a form, or a tensor defined on either the domain Lie algebra 𝔤 or the range Lie algebra 𝔥

     keyword  - (optional) string keyword, either "domain" or "range"



Description

Examples

Description

•

ApplyHomomorphism(φ, T) will apply the transformation Phi to the vector, form or tensor T and return an object of the same type. The precise evaluation rules for ApplyHomomorphism depend upon the specific properties of T and whether or not Phi is invertible. The details are as follows.

•

Applied to tensors, the command ApplyHomomorphism acts as a ring homomorphism, that is, ApplyHomomorphism(φ, T⊗S) = ApplyHomomorphism(φ, T)⊗ApplyHomomorphism(φ, S).

•

CASE 1. T is a vector in the domain algebra 𝔤 of φ. In this case ApplyHomomorphism(Phi, T) simply applies the linear transformation φ to the vector T and the result is a vector in the range algebra 𝔥 of the transformation φ.

•

CASE 2. T is a p-form on the range algebra 𝔥 of transformation φ.In this case ApplyHomomorphism(φ, T) simply applies the pullback of the linear transformation φ to the p-form T and the result is a p-form in the domain 𝔤 of φ.

•

CASE 3. T is a tensor on 𝔤 and φ is an invertible linear transformation. Then ApplyHomomorphism(φ, T) is the tensor on the range algebra 𝔥 obtained by the pushforward by φ of the contravariant components of T and the pullback of the covariant components of T by the inverse of φ.

•

CASE 4. T is a tensor on 𝔥  and φ is an invertible linear transformation. Then ApplyHomomorphism(φ, T) is the tensor on the domain algebra 𝔤 obtained by the pushforward of the contravariant components of T by the inverse of φ and the pullback of the covariant components of T by φ.

•

CASE 5. T is a tensor on 𝔤 and φ is not invertible. Then T must be a contravariant tensor (that is, a tensor products of vectors) in which case ApplyHomomorphism(φ, T) is the contravariant tensor defined on the range algebra 𝔥 and obtained by the pushforward of Phi acting on vectors in 𝔤.

•

When 𝔥 =𝔤, Case 4 takes precedence over Case 5. Alternatively ApplyHomomorphism can be forced to use Case 4 or Case 5 with the third optional argument "domain" or "range".

•

CASE 6. T is a tensor on 𝔥 and φ is not invertible.  Then T must be a covariant tensor (that is, a tensor product of 1-forms) in which case ApplyHomomorphism(φ, T) is the covariant tensor defined on the domain algebra g and obtained by the pullback of φ acting on 1-forms in h.

•

The command ApplyHomomorphism is part of the DifferentialGeometry:-LieAlgebras package.  It can be used in the form ApplyHomomorphism(...) only after executing the commands with(DifferentialGeometry) and with(LieAlgebras), but can always be used by executing DifferentialGeometry:-LieAlgebras:-ApplyHomomorphism(...).

Examples

>

with⁡DifferentialGeometry:with⁡LieAlgebras:



Example 1.

First initialize two copies of a Lie algebra, called Alg1 and Alg2, and display the Lie bracket multiplication tables.

>

LC1≔_DG⁡LieAlgebra,Alg1,4,1,4,1,1,2,3,1,1,2,4,2,1:

>

DGsetup⁡LC1,x,α:

Alg1 >

LC2≔_DG⁡LieAlgebra,Alg2,4,1,4,1,1,2,3,1,1,2,4,2,1:

Alg1 >

DGsetup⁡LC2,y,β:

Alg2 >

print⁡MultiplicationTable⁡Alg1,LieBracket,MultiplicationTable⁡Alg2,LieBracket

e1,e4=e1,e2,e3=e1,e2,e4=e2,e1,e4=e1,e2,e3=e1,e2,e4=e2

(2.1)



We use AdjointExp to construct a linear transformation (in fact, an isomorphism) from Alg1 to Alg2.

Alg2 >

A≔AdjointExp⁡r⁢x1+s⁢x2+t⁢x3:

Alg1 >

Φ≔Transformation⁡Alg1,Alg2,A

Φ:=x1,y1,x2,−t⁢y1+y2,x3,s⁢y1+y3,x4,−t⁢s2+r⁢y1+s⁢y2+y4

(2.2)



We calculate the effects of the command ApplyHomomorphism in each of the following cases.

CASE 1: vectors in the domain algebra Alg1.

CASE 2: 1-forms on the range algebra Alg2.

CASE 3: rank 1 covariant tensors on the domain algebra Alg1.

CASE 4: rank 1 contravariant vectors on the range algebra Alg2.

In each case we show the matrix which defines the transformation.



CASE 1: vectors in the domain algebra Alg1.

Alg2 >

Vectors≔x1,x2,x3,x4:

Alg2 >

A,map2⁡ApplyHomomorphism,Φ,Vectors

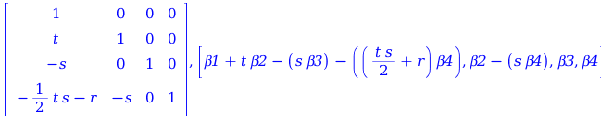

CASE 2: 1-forms on the range algebra Alg2.

Alg2 >

Forms≔β1,β2,β3,β4:

Alg2 >

Atr≔LinearAlgebra:-Transpose⁡A:

Alg2 >

Atr,map2⁡ApplyHomomorphism,Φ,Forms



CASE 3. rank 1 covariant tensors on the domain algebra Alg1.

Alg1 >

CovariantTensors≔map⁡convert,α1,α2,α3,α4,DGtensor

CovariantTensors:=α1,α2,α3,α4

(2.3)
Alg1 >

Aintr≔LinearAlgebra:-MatrixInverse⁡LinearAlgebra:-Transpose⁡A:

Alg1 >

Aintr,map2⁡ApplyHomomorphism,Φ,CovariantTensors



CASE 4. rank 1 contravariant vectors on the range algebra Alg2.

Alg2 >

ContravariantTensors≔map⁡convert,y1,y2,y3,y4,DGtensor:

Alg2 >

Ain≔LinearAlgebra:-MatrixInverse⁡A:

Alg2 >

Ain,map2⁡ApplyHomomorphism,Φ,ContravariantTensors



We show, by way of a simple example, the extensions of the mappings in CASE 1 and CASE 3 form a mixed tensor on the range Alg2.

Alg1 >

T≔α2&tensorx3

T:=α2⁢x3

(2.4)
Alg1 >

ApplyHomomorphism⁡Φ,T

s⁢β2⁢y1+β2⁢y3−s2⁢β4⁢y1−s⁢β4⁢y3

(2.5)



We show, by way of a simple example, the extensions of the mappings in CASE 2 and CASE 4 form a mixed tensor on the domain Alg1.

Alg2 >

T≔β2&tensory3

T:=β2⁢y3

(2.6)
Alg2 >

ApplyHomomorphism⁡Φ,T

−s⁢α2⁢x1+α2⁢x3−s2⁢α4⁢x1+s⁢α4⁢x3

(2.7)
