GabrielGraph



construct Gabriel graph



Calling Sequence

Parameters

Options

Description

Definitions

Examples

References

Compatibility

Calling Sequence

GabrielGraph( P, opts )

Parameters

P

-

Matrix or list of lists representing set of points

opts

-

(optional) one or more options as specified below

Options

•

triangulation : list  of three-element lists



Supply a previously computed Delaunay triangulation of P. The input must be a valid Delaunay triangulation in the format returned by ComputationalGeometry[DelaunayTriangulation]: a list of three-element lists of integers, representing triangles in a triangulation of P.

•

vertices : list of integers, strings or symbols



Specifies the vertices to be used in the generated graph.

•

weighted : true or false



If weighted=true, the result is a weighted graph whose edge weights correspond to the Euclidean distance between points. The default is false.

Description

•

The GabrielGraph(P, opts) command returns the Gabriel graph for the point set P.

•

The parameter P must be a Matrix or list of lists representing a set of points.

Definitions

•

Let P be a set of points in n dimensions, let p and q be arbitrary points from P, and let distp,q be the Euclidean distance between p and q.

•

The Gabriel graph the graph whose vertices correspond to points in P and whose edges consist of those pairs p and q from P for which the closed ball centered halfway between p and q with diameter equal to distpq contains no other points from P.



Formally, define the ball Bp,q to be those points rP such that distr,p2+q2distp,q2. The Gabriel graph has an edge between p and q if and only if Bp,q=.

•

The Gabriel graph has the following relationships with other graphs:



The Euclidean minimum spanning tree on P is a subgraph of the Gabriel graph on P.



The nearest neighbor graph on P is a subgraph of the Gabriel graph on P.



The relative neighborhood graph on P is a subgraph of the Gabriel graph on P.



The Urquhart graph on P is a subgraph of the Gabriel graph on P.



The Gabriel graph on P is a subgraph of the Delaunay graph on P.

Examples

Generate a set of random two-dimensional points and draw a Gabriel graph.

withGraphTheory:

withGeometricGraphs:

pointsLinearAlgebra:-RandomMatrix60,2,generator=0..100.,datatype=float8

(1)

GGGabrielGraphpoints

GGGraph 1: an undirected unweighted graph with 60 vertices and 105 edge(s)

(2)

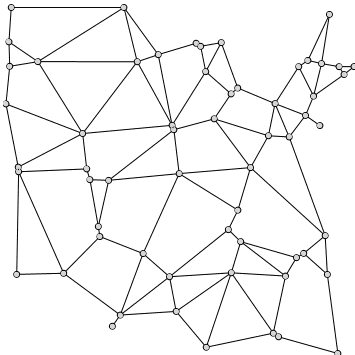

DrawGraphGG

References



Gabriel, Kuno Ruben; Sokal, Robert Reuven (1969), "A new statistical approach to geographic variation analysis", Systematic Biology, Society of Systematic Biologists, 18(3): 259–278. doi:10.2307/2412323.

Compatibility

•

The GraphTheory[GeometricGraphs][GabrielGraph] command was introduced in Maple 2020.

•

For more information on Maple 2020 changes, see Updates in Maple 2020.
