DataSets[Builtin][WorldMap]



AddPoint



insert a point into a WorldMap object



Calling Sequence

Parameters

Description

Examples

Compatibility

Calling Sequence

AddPoint(m,p,plotopts)

Parameters

m

-

a WorldMap object

p

-

a list representing a point

plotopts

-

(optional) plot options for p

Description

•

The AddPoint command inserts the point p into m.

•

p must be a list of either two or three elements. The first element in p is the longitude (x-coordinate in the Geographic projection), and the second element in p is the latitude (y-coordinate in the Geographic projection). The optional third element is a string label for the point.

•

The longitude must lie in the interval [-180,180], and the latitude must lie in the interval [-90,90].

•

plotopts specify how each individual point gets displayed. By default, a point is displayed as a black asterisk.

Examples

mDataSets:-Builtin:-WorldMap

mPLOT...A map of the worldprojection: MillerCylindrical

(1)

Add a point with a label:

AddPointm,80.52,43.47,Waterloo,symbol=solidcircle

PLOT...A map of the world with 1 pointprojection: MillerCylindrical

(2)

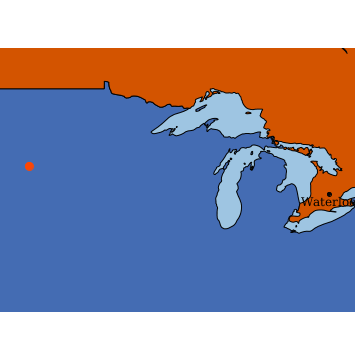

Add another point without a label:

AddPointm,100,45,symbol=solidcircle,symbolsize=20,color=OrangeRed

PLOT...A map of the world with 2 pointsprojection: MillerCylindrical

(3)

Displaym

Compatibility

•

The DataSets[Builtin][WorldMap][AddPoint] command was introduced in Maple 2017.

•

For more information on Maple 2017 changes, see Updates in Maple 2017.

See Also

AddPoints

RemovePoint

WorldMap
