Rigid Body Frame

A frame with a fixed displacement and orientation relative to a rigid body center of mass (CoM) frame

A Rigid Body Frame is a body-fixed frame that is used to define locations of interest on the body where it is connected (for example, locations where it connects to other bodies). The position and orientation relative to the center of mass must be defined for each body-fixed frame.

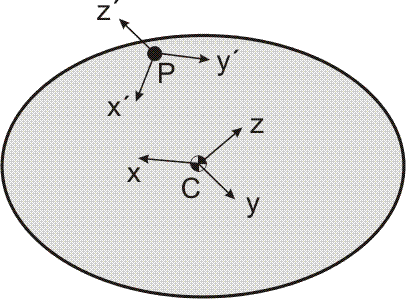

The position of the body-fixed x'y'z' frame relative to the center of mass xyz frame, both shown in the diagram below, is defined by the translational position vector from C to P, resolved into components along the center of mass x,y, and z axes. The orientation of x'y'z' with respect to xyz can be defined by the rotation transformation matrix between the two, or by a rotation about one or more of the x, y, or z axes.



Connections

Parameters

See Also

Connections

Name

Description

framea

Base of rigid body frame. This should be attached to a rigid body center of mass frame.

frameb

Tip of rigid body frame

Parameters

Symbol

Default

Units

Description

Modelica ID

r&conjugate0;XYZ

100

m

The x,y,z offset of the outboard frame with respect to the inboard frame

InitPos

TypeR

Euler Angles

-

Indicates whether the rotation matrix, R&conjugate0;, or the rotation sequence, θ&conjugate0;ζ,η,ξ, is used to express the orientation of the outboard frame with respect to the inboard frame

RSelect

R

 100010001

-

The rotation matrix that transforms a vector expressed in the outboard frame to the inboard frame

RMat

Typeθ

123

-

Indicates the sequence of subsequent rotations describing the orientation of the outboard frame with respect to the inboard frame. For example, 1,2,3 refers to sequential rotations about the x, then y, then z axis (123 - Euler angles)

RotType

θ&conjugate0;ζ,η,ξ

000

rad

Rotations about the axes selected in Typeθ

InitAng
