Executive Color Palette



Description

Examples

Description

•

The Executive plot palette is a subdued selection of colors chosen to be similar to those used in professional document applications. It is designed for coloring filled areas. There are six main colors in the palette as well as ten more named colors.

ColorTools:-DisplayPalette("Executive",noextend);

1. Blue

2. Red

3. Green

4. Purple









5. Cyan

6. Orange

7. PurplishBlue

8. BluishGreen









9. GreenishBlue

10. GreenishYellow

11. PurplishRed

12. VividPurple









13. PaleBluishGreen

14. VividBlue

15. OrangishRed

16. PaleRedPurple











Examples

You can reference colors in the palette by name or number in most commands that understand color names.

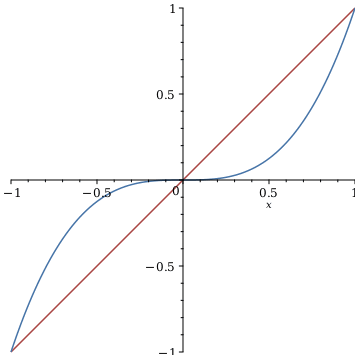

plotx,x3,x=1..1,color=Executive 2,Executive Blue

CColorTools:-ColorExecutive 10

ColorTools:-ColorRGB,0.69803922,0.85882353,0.23921569

(1)

You can make Executive the default palette in plots using setcolors

plots:-setcolorsExecutive:

You can programmatically access the colors using ColorTools commands

PColorTools:-GetPaletteExecutive

ColorTools:-Palettemodule...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,module...end module,Blue,Red,Green,Purple,Cyan,Orange,PurplishBlue,BluishGreen,GreenishBlue,GreenishYellow,PurplishRed,VividPurple,PaleBluishGreen,VividBlue,OrangishRed,PaleRedPurple,,palettename=Executive,palettetype=fill

(2)

P1

ColorTools:-ColorRGB,0.27058824,0.45098039,0.65490196,caption=Blue

(3)

nnumcolorsP

n16

(4)

plotseqsinx+iπn,i=1..n,x=0..2π,axes=boxed,color=:-GetColorsP1..n,legend=:-GetColorNamesP1..n,numpoints=25,style=point

ColorTools algorithms will automatically generate new colors beyond the main 16 colors:

P20

ColorTools:-ColorRGB,0.1859528299,0.08748881520,0.5363718399

(5)

The Executive palette is designed for filled areas, but the Lookup command can provide slightly altered shades of its colors for use in coloring points or lines.

LookupP,1,shade=line

ColorTools:-ColorRGB,0.060678992,0.38660148,0.62720391

(6)

LookupP,1,shade=point

ColorTools:-ColorRGB,0.0019474221,0.37031734,0.60912810

(7)
