Introduction

In this worksheet we consider some examples of the vibrating patterns of rectangular membranes. Such membranes are described by the 2-dimensional wave equation . we are mainly interested in the product solution obtained by the method of separation of variables, such product solutions of the wave equations are also called standing waves . In particular, we consider intricate patterns of nodal curves appearing when there is more than one eigenfunction corresponding to the same eigenvalue (this happens, for example, for a square membrane.

Packages

Some packages that we use in this worksheet:

>	restart: with(plottools): with(plots):

Warning, the names arrow and changecoords have been redefined

>

Definitions

First we define the spatial eigenfunction    of the Dirichlet boundary problem:

>	Phi:=unapply(sin(n*Pi*x/L)*sin(m*Pi*y/H),n,m):'Phi[n,m](x,y)'=Phi(n,m);

The corresponding eigenvalue    then is

>	lambda:=unapply((n*Pi/L)^2+(m*Pi/H)^2,n,m):'lambda[n,m]'=lambda(n,m);

The corresponding time-dependent term is

>	T:=unapply(A[n,m]*cos(c*sqrt(lambda(n,m))*t)+B[n,m]*sin(c*sqrt(lambda(n,m))*t),n,m):T(n,m);

The product solution then is

>	u:=unapply(Phi(n,m)*(T(n,m)),n,m):u(n,m);

The general solution is the superposition of basic solutions:

>	sum(sum(u(n,m),n=1..infinity),m=1..infinity);

In this worksheet we consider only initial displacements:

>	B[n,m]:=0;A[n,m]:=1;

And therefore

>	T:=unapply(A[n,m]*cos(c*sqrt(lambda(n,m))*t)+B[n,m]*sin(c*sqrt(lambda(n,m))*t),n,m):T(n,m);

and the product solution is simply

>	u:=unapply(Phi(n,m)*(T(n,m)),n,m):u(n,m);

The period of (   )-oscillation is

>	P:=unapply( (2*Pi)/(c*sqrt(lambda(n,m))),n,m):P(n,m);

We also introduce the following procedure that will help us to plot solutions together with corresponding nodal curves:

>	wave:=proc(sol) display([ contourplot3d(sol,x=-0.01..1.01*L,y=-0.01..1.01*H,contours=[0],color=red,thickness=3,numpoints=600), plot3d(sol,x=0..L,y=0..H,shading=zhue)],scaling=constrained,axes=boxed); end:

>

Rectangle

For a generic rectangle eigenvalues are simple.

>	c:=1:L:=2:H:=3:

This is the "lowest energy" mode with

>	'lambda(1,1)'=lambda(1,1);

We consider the Dirichlet boundary conditions, so the boundary of the membrane does not move.

>	animate(wave,[u(1,1)],t=0..P(1,1));

Note that  mode has a fixed line through the middle (at ). Such a line (time-independent zero-level of ) is called the nodal curve .

>	animate(wave,[u(1,2)],t=0..P(1,2));

There are two nodal curves for  mode:

>	animate(wave,[u(3,1)],t=0..P(3,1));

And this is how the nodal curves for  mode lookslike:

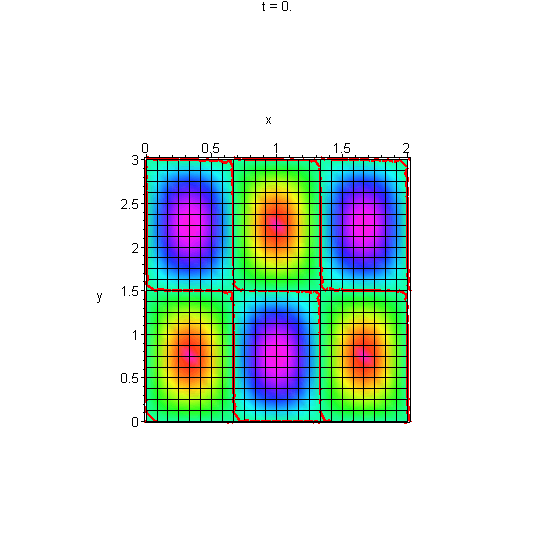

>	animate(wave,[u(3,2)],t=0..P(3,2));

Same oscillations viewed from the top:

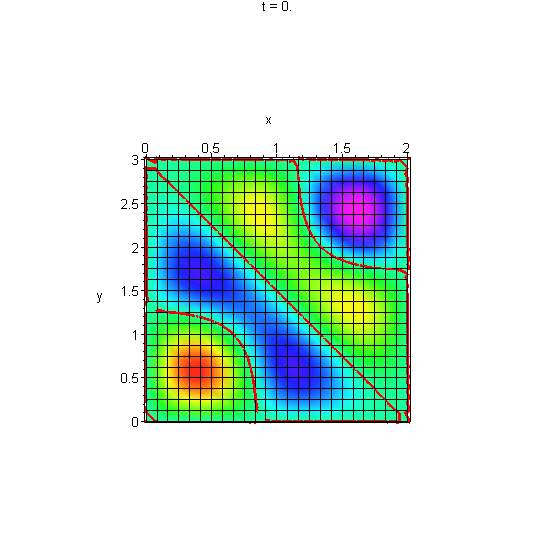

>	display(animate(wave,[u(3,2)],t=0..P(3,2)),orientation=[-90,0],insequence=true);

Note that for general  and  different modes have different eigenvalues and therefore have different frequences of oscillation:

>	'lambda(2,3)'=lambda(2,3);'lambda(3,2)'=lambda(3,2);

Such a combination will not be a standing wave  and will not have nodal curves (the zero-levels of  are time-dependent:)

>	display(animate(wave,[u(2,3)+u(3,2)],t=0..2*P(2,3)*P(3,2)),orientation=[-90,0],insequence=true,frames=1000);

Clean-up:

>	c:='c':L:='L':H:='H':

>

Square, multiple eigenfunctions, and interesting nodal curves.

For a square membrane different modes can have the same eigenvalue, which leads to non-trivial nodal curves and interesting vibrating patterns.

>	c:=1:L:=2:H:=2:

>	animate(wave,[u(1,3)],t=0..P(1,3),title="u[1,3]");

>	animate(wave,[u(3,1)],t=0..P(3,1),title="u[3,1]");

Note that the eigenvalues  and  are the same:

>	'lambda[1,3]'=lambda(1,3); 'lambda[3,1]'=lambda(3,1);

The sum of two eigenfunctions with the same eigenvalue is still an eigenfunction with the same eigenvalue (and so adding a time-dependent term again produces a standing wave), but the nodal curve and the vibration pattern is very different from the "product" behavoir of individual eigenfunctions:

>	animate(wave,[u(1,3)+u(3,1)],t=0..P(1,3),title="u[1,3]+u[3,1]");

We collect a few more interesting examples below:

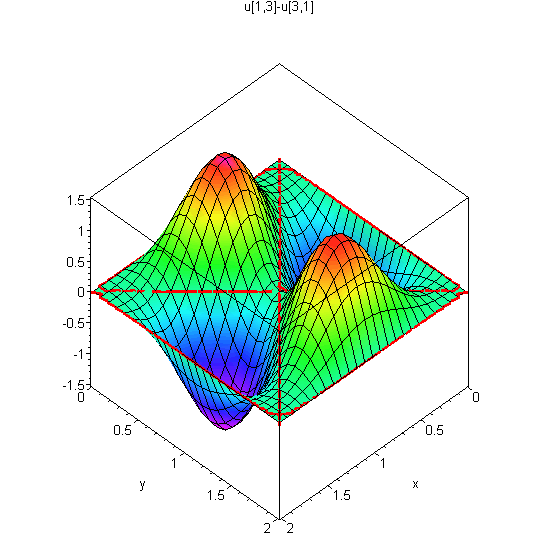

>	animate(wave,[u(1,3)-u(3,1)],t=0..P(1,3),title="u[1,3]-u[3,1]");

>	animate(wave,[u(1,3)+u(3,1)/3],t=0..P(1,3),title="u[1,3]+u[3,1]/3");

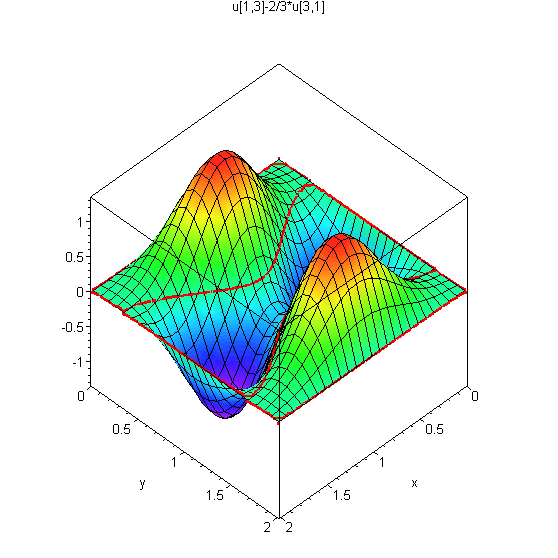

>	animate(wave,[u(1,3)-2/3*u(3,1)],t=0..P(1,3),title="u[1,3]-2/3*u[3,1]");

>	animate(wave,[u(2,3)+u(3,2)],t=0..P(2,3),title="u[2,3]+u[3,2]");

>	animate(wave,[u(2,3)+u(3,2)/3],t=0..P(2,3),title="u[2,3]+u[3,2]/3");

>	animate(wave,[u(1,4)+u(4,1)],t=0..P(1,4),title="u[1,4]+u[4,1]");

>	animate(wave,[u(1,4)+sqrt(2/3)*u(4,1)],t=0..P(1,4),title="u[1,4]+sqrt(2/3)*u[4,1]");

>	animate(wave,[u(1,4)+sqrt(2/3)*u(4,1)/3],t=0..P(1,4),title="u[1,4]+sqrt(2/3)*u[4,1]/3");

>	display(animate(wave,[u(6,1)+u(1,6)],t=0..P(1,6)),orientation=[-90,0],insequence=true,frames=1000, title="u[6,1]+u[1,6]");

>	display(animate(wave,[u(6,1)+0.5*u(1,6)],t=0..P(1,6)),orientation=[-90,0],insequence=true,frames=1000, title="u[6,1]+u[1,6]/2");

>
