Equilibrium Configurations of Cantilever Beam under Terminal Load

Author
: Dr. milan batista
1
Engineering software solutions from Maplesoft
 Download
 Preview
This Application runs in Maple. Don't have Maple? No problem!
 Try Maple free for 15 days!

This worksheet implements the calculation of the equilibrium shapes of
 initially straight inextensible and unshearable elastic cantilever beam.Three types of load conditions are implemented:
1) Follower load problem.
2) Unknown load parameter problem
3) Conservative load problem

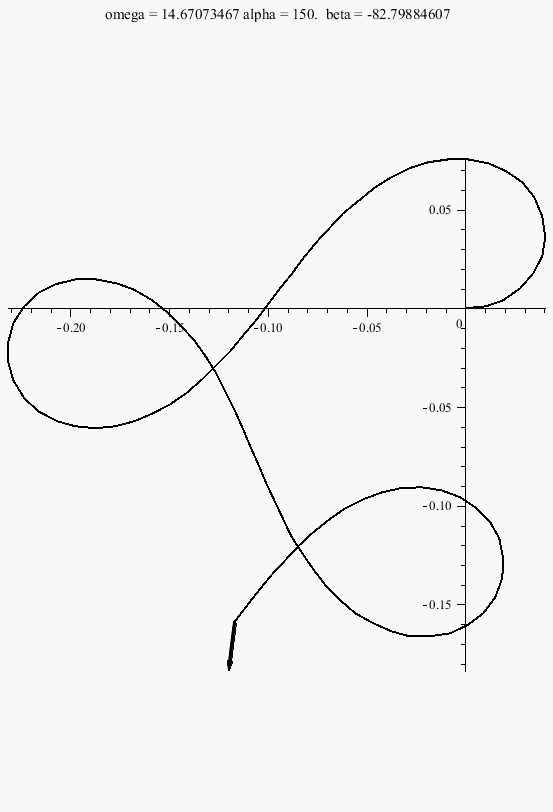

For each of these problems animation of beam deformation are given.

Application Details

Publish Date: January 26, 2013
Created In: Maple 13
Language: English
