RootFinding Package Updates in 2019



Description

Isolating roots of univariate polynomials with real coefficients

Performance improvements for root isolation and root refinement

Description

•

The RootFinding:-Isolate command can now be used to isolate the roots of univariate polynomials with arbitrary real coefficients.

Isolating roots of univariate polynomials with real coefficients

•

Prior to 2019, RootFinding:-Isolate could only determine the roots of polynomials with rational or float coefficients. This restriction is now lifted for univariate polynomials:

with(RootFinding):

Isolate(sqrt(2)*x^2 - Pi*x - exp(2));

x=−1.430647445,x=3.652088914

(1)
•

In particular, Isolate can now be used to find roots of polynomials with algebraic coefficients. We illustrate this in an example where we manually study the real solutions of a bivariate equation system of the form Fx,y=0,Gx,y=0:

F := (2*x^2*y - 2*x^2 - 3*x + y^3 - 33*y + 32) * ((x-2)^2 + y^2 + 3):

G := (x^2 + y^2 - 23) * (x^2 + y^2 + 2):

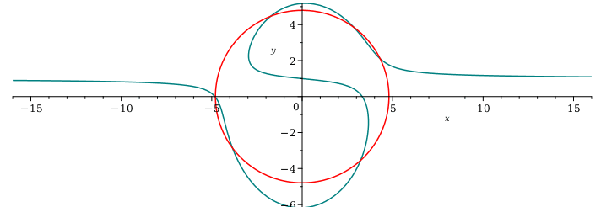

The common roots of both polynomials are the intersections of their corresponding algebraic curves:

plots[implicitplot]([F = 0, G = 0], x=-16..16, y=-7..6, color=["Teal", "Red"], gridrefine=2, scaling=constrained, size=[0.7,0.35]);



Elimination theory for algebraic equation systems tells us that all x-coordinates of the common solutions are roots of the resultant polynomial of F and G with respect to y:

R := resultant(F, G, y):



This resultant is a univariate polynomial with irrational roots, some of which may be complex. The roots are candidate values for the x-coordinate of simultaneous solutions. Note that we store symbolic expressions for the solutions, not just approximations:

candidates := sort([RealDomain[solve](R)], key=evalf):

evalf(candidates);

−4.795738156,−3.854101966,−1.739664347,1.250000000,2.854101966,3.227646598,4.307755905,7.500000000

(2)


However, some of the candidates might be spurious. We can use the new interface for RootFinding:-Isolate to determine the roots along the fibers of F and G when we substitute the candidates:

a := candidates[1];

aRootOf_Z4_Z327_Z2+28_Z+116,−4.7957383..−4.7957372

(3)

fa := subs(x=a, F):

ga := subs(x=a, G):

Isolate(fa);

y=−0.02992556510

(4)

Isolate(ga);

y=−0.02992556510,y=0.02992556510

(5)


Indeed, there is a common solution close to x=evalf3a, y=−0.03:

is(RootOf(fa, y, -0.03) = RootOf(ga, y, -0.03));

true

(6)


However, let's look at the candidate at b=1.25:

b := candidates[4];

b54

(7)

fb := subs(x=b, F):

gb := subs(x=b, G):

Isolate(fb);

y=−5.845766191,y=0.8624794396,y=4.983286752

(8)

Isolate(gb);

y=−4.630064794,y=4.630064794

(9)


This clearly is a spurious candidate; the roots of F1.25,y and G1.25,y are distinct.

•

The example code above can help to filter spurious solutions, but it is not a complete solver for bivariate systems; it allows to filter out suspicious candidates, but does not validate all solutions. Such verification is provided by the multivariate solvers in the RootFinding package:

Isolate([F,G], [x,y]);

x=3.227646598,y=−3.547153427,x=−3.854101966,y=−2.854101966,x=−4.795738156,y=−0.02992556510,x=4.307755905,y=2.107899206,x=2.854101966,y=3.854101966,x=−1.739664347,y=4.469179786

(10)


However, the multivariate polynomial solver requires coefficients of type numeric (that is, rationals or floats). Consider the case where we slightly change F by replacing 3 with π in the last term:

F := (2*x^2*y - 2*x^2 - 3*x + y^3 - 33*y + 32) * ((x-2)^2 + y^2 + Pi):

Isolate([F,G], [x,y]);

Error, (in RootFinding:-Isolate) polynomials to be solved must have numeric coefficients



The more naive approach above, while uncertified, will work nevertheless:

R := resultant(F, G, y):

candidates := sort([RealDomain[solve](R)], key=evalf):

evalf(candidates);

−4.795738156,−3.854101966,−1.739664347,1.285398164,2.854101966,3.227646598,4.307755905,7.535398164

(11)

a := candidates[1];

aRootOf_Z4_Z327_Z2+28_Z+116,−4.795738156

(12)

fa := subs(x=a, F):

ga := subs(x=a, G):

Isolate(fa);

y=−0.02992556510

(13)

Isolate(ga);

y=−0.02992556510,y=0.02992556510

(14)

b := candidates[4];

bπ4+12

(15)

fb := subs(x=b, F):

gb := subs(x=b, G):

Isolate(fb);

y=−5.827352781,y=0.8577160795,y=4.969636701

(16)

Isolate(gb);

y=−4.620362709,y=4.620362709

(17)
•

Finally, we show how the combination of the constraints and output options of RootFinding:-Isolate can provide certified information, and will allow us to programmatically exclude spurious candidates even with irrational coefficients.

rts_fb, gb_at_rts_fb := Isolate(fb, constraints=[gb], output=interval):

contains_zero := iv -> evalb(iv[1] <= 0 and iv[2] >= 0):

seq(contains_zero(rhs(gb_at_rts_fb[i][1])), i=1..nops(rts_fb));

false,false,false

(18)


Indeed, gb evaluated over all isolating intervals for fb does not contain zero, which confirms that F and G have no common zero at x=b. In contrast,

rts_fa, ga_at_rts_fa := Isolate(fa, constraints=[ga], output=interval):

seq(contains_zero(rhs(ga_at_rts_fa[i][1])), i=1..nops(rts_fa));

true

(19)


shows that ga, evaluated at the isolating intervals for the root of fa, contains zero. This still does not validate the simultaneous zero of both systems, but is a strong hint. Techniques along these lines can serve to filter candidates numerically before trying time-consuming symbolic simplification and zero-testing, and can be used as cornerstones for complete solvers.

•

Note that the aforementioned routines crucially rely on inputs that are served as symbolic expressions rather than approximations:

apx := evalf(a);

apx−4.795738156

(20)

fapx := subs(x=apx, F):

gapx := subs(x=apx, G):

rts_fapx, gapx_at_rts_fapx := Isolate(fapx, constraints=[gapx], output=interval):

seq(contains_zero(rhs(gapx_at_rts_fapx[i][1])), i=1..nops(rts_fapx));

false

(21)


Even a tiny perturbation of the candidate solution in x will produce distinct roots of F and G in y. Thus, the direct handling of arbitrary real coefficients is not only convenient, but required for correctness.

Performance improvements for root isolation and root refinement

•

The new default algorithm of Isolate also features vastly improved performance for ill-conditioned polynomials with clustered roots. The root finding method eventually converges quadratically to regions containing roots, rather than just linearly. For example, the following class of polynomials has a cluster of roots extremely close to 2−100:

with(RootFinding):

mig := n -> x^n - (nextprime(2^100)*x^2 - 1)^2:

time(Isolate(mig(10)));

0.015

(22)

time(Isolate(mig(10), method=RS));

0.027

(23)

time(Isolate(mig(50)));

0.209

(24)

time(Isolate(mig(50), method=RS));

0.877

(25)

time(Isolate(mig(100)));

1.125

(26)

time(Isolate(mig(100), method=RS));

7.609

(27)

time(Isolate(mig(200)));

7.469

(28)

timelimit(600, Isolate(mig(200), method=RS));

time expired

(29)
•

The same technique allows even more dramatic improvements for root finding requests with high accuracy even on well-conditioned problems:

f := add(rand(-1. .. 1.)() * x^i, i=0..100):

time(Isolate(f, digits=100));

0.056

(30)

time(Isolate(f, digits=100, method=RS));

0.239

(31)

time(Isolate(f, digits=1000));

0.293

(32)

time(Isolate(f, digits=1000, method=RS));

107.328

(33)

time(Isolate(f, digits=10000));

10.824

(34)

timelimit(600, Isolate(f, digits=10000, method=RS));

time expired

(35)
