Cross Connect Thermal Conductor

Cross Connect Thermal Conductor connecting two Node or Shape components with contact area of each node, input from real vector signals.



Description

The Cross Connect Thermal Conductor component is used for connecting two Node or Shape components with all combinations of heat path.

This component can also take account of normalized contact area ratio between two Node or node of the Shape from two real vector signals, Ac_ai and Ac_bi.

The order of coefficients of normalized contact area ratio Ac_a and Ac_b are as follows:

a1b1, ... ,a1bm,a2b1, ... ,a2bm, ...... ,anb1, ... ,anbm

For example, when Nodes_a = 2 and Nodes_b =3, Ac_b4 means a2b1,the coefficient of normalized area ratio of port_b side between port_a2 and port_b1.

When using this component, connect port_a and port_b to port_center of Node or Shape components, and input two real vector signals of coefficient of normalized contact area ratio (0 to 1).

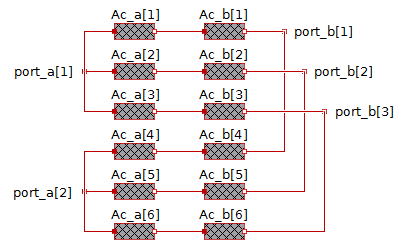

The following image illustrates the behavior of the Cross Connect Thermal Conductor component in the case of numNode_a=2 and numNode_b=3. There are 2×3=6

Equations
Heat conductance G__off is used for the heat path without heat flow.

(For details, see Thermal Conductor help).

Variables

(For details, see Thermal Conductor  help).

Connections

Name

Units

Condition

Description

Modelica ID

port_ai



i-th thermal port of port a side

The total number of i is determined by Nodes of a

port_a

port_bi





i-th thermal port of port b side

The total number of i is determined by Nodes of b

port_b

Ac_ai





Coefficient of normalized contact area ratio (0 to1) at port a side

The total number of i is determined by Nodes a * Nodes b

Ac_a

Ac_bi





Coefficient of normalized contact area ratio (0 to 1) at port b side

The total number of i is determined by Nodes a * Nodes b

Ac_b

Parameters

Symbol

Default

Units

Description

Modelica ID

Material__a

Solid material property data

Material_a

WmK

Material.k is the thermal conductivity of the material

Material_a.k

JkgK

Material.cp is the specific heat capacity of the material

Material_a.cp

kgm3

Material.rho is the density of the material

Material_a.rho

Material__b

Solid material property data

Material_b

WmK

Material.k is the thermal conductivity of the material

Material_b.k

JkgK

Material.cp is the specific heat capacity of the material

Material_b.cp

kgm3

Material.rho is the density of the material

Material_b.rho

Nodes__a

2



Number of nodes port a side

numNode_a

Nodes__b

3



Number of nodes port b side

numNode_b

A__port a

1

m2

Area of Thermal Conductor for each node of port a side

A_a

L__port a

1

m

Distance of ThermalConduct for each node of port a side

L_a

A__port b

1

m2

Area of Thermal Conductor for each node of port b side

A_b

L__port b

1

m

Distance of ThermalConductor for each node of port b side

L_b

G__off

107

WK

Optional. Constant thermal conductance of material which is used for representing the path without heat flow

Goff
