Join Execution Groups


Join two or more execution groups to display all of the Maple input lines first, followed by the corresponding Maple output lines.


To join two execution groups:


Place the cursor in the first of the two execution groups to be joined together.


From the Edit menu, select Split or Join, and then Join Execution Groups.


Press the Enter key.

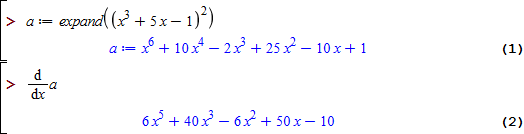

The following image displays two execution groups that can be joined.

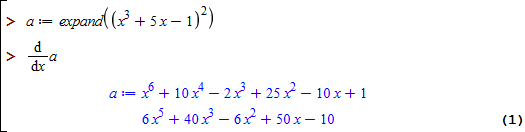

Place your cursor in the first execution group (or select both groups) and join the execution groups.  You will then need to execute to refresh the outputs. The following is the result of joining the execution groups and then reexecuting.

Note that when two inputs are in one execution group, the outputs are displayed together.  In this case, the equation label is associated with the last output in the execution group.

See Also

Split an Execution Group

Structure Worksheets with Execution Groups

Using Equation Labels
