ComputationalGeometry



SegmentsIntersect



determine if two line segments intersect



Calling Sequence

Parameters

Description

Examples

Compatibility

Calling Sequence

SegmentsIntersect( L1, L2 )

SegmentsIntersect( L1, L2, intersection )

SegmentsIntersect( M, locs )

SegmentsIntersect( M, locs, intersection )

Parameters

L1, L2

-

line segments given as pairs of points in 2-D space

M

-

an array of point coordinates in 2-D space. Each point is a row in the array. M must be C_order and datatype=float[8]

locs

-

positive integer indices of the three rows of M to treat as input the first location is the point and the other two the ends of the segment

Description

•

This command returns true if the two line segments intersect and false if they do not.  It does so using four calls to PointOrientation.

•

If the intersection option is given and the segments do not intersect false will be returned, otherwise the coordinate of the intersection will be returned.

•

If one segment is completely contained within the other, the list of endpoints of the smaller segment will be returned.

Examples

with(ComputationalGeometry):

SegmentsIntersect([[0,0], [1,1]], [[0,1], [1,0]]);

true

(1)

L := [[1,0], [1,5]]:

K := [ [[1,-2], [1,-1]], [[0,1], [0,3]], [[2,1], [2,3]], [[1,6.5], [1,8]],
      [[1,6], [1.5,8]], [[0.5,4], [1.5,7]], [[0.5, 0.5], [1, -0.75]],
      [[1,5], [1.5,6]], [[1,4.5], [1.5,5]], [[.5,3.75], [1.5,3.5]],
      [[1,2.5], [1,3.5]], [[0.5,1.5], [1,2]], [[1,0], [1.5,-2]],
      [[1, 0.5], [1, -0.5]] ]:

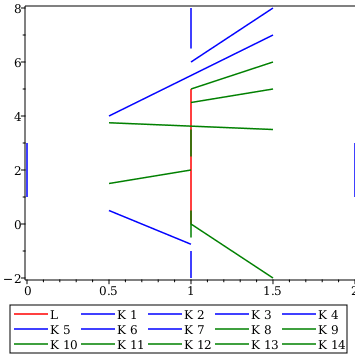

plots:-display( plottools:-line(L[], legend="L", color="Red"),
seq(plottools:-line(K[i][], legend="K " || i, color="Blue"), i=1..7),
seq(plottools:-line(K[i][], legend="K " || i, color="Green"), i=8..14),
axes=boxed);

None of the blue segments intersect L

{ seq(SegmentsIntersect(L, K[i]), i=1..7) };

false

(2)

All of the green segments intersect L

{ seq(SegmentsIntersect(L, K[i]), i=8..14) };

true

(3)

M := Array( [ L[], seq(k[], k in K) ], datatype=float[8], order=C_order);

(4)

SegmentsIntersect( M, [1,2, 3,4], intersection);

false

(5)

SegmentsIntersect( M, [1,2, 25,26], intersection);

1.2.

(6)

Line 11, completely contained in L

SegmentsIntersect( M, [1,2, 23,24], intersection);

1.2.50000000000000,1.3.50000000000000

(7)

Line 14, partially overlaps L

SegmentsIntersect( M, [1,2, 29,30], intersection);

1.0.,1.0.500000000000000

(8)

Compatibility

•

The ComputationalGeometry[SegmentsIntersect] command was introduced in Maple 2019.

•

For more information on Maple 2019 changes, see Updates in Maple 2019.

See Also

ComputationalGeometry[PointOrientation]
