What's New in Maple 2019

RootFinding Package Updates in 2019



Description

  • The RootFinding:-Isolate command can now be used to isolate the roots of univariate polynomials with arbitrary real coefficients.


Isolating roots of univariate polynomials with real coefficients

  • Prior to 2019, RootFinding:-Isolate could only determine the roots of polynomials with rational or float coefficients. This restriction is now lifted for univariate polynomials:

> with(RootFinding):


> Isolate(sqrt(2)*x^2 - Pi*x - exp(2));


[x = -1.430647445, x = 3.652088914]


  • In particular, Isolate can now be used to find roots of polynomials with algebraic coefficients. We illustrate this in an example where we manually study the real solutions of a bivariate equation system of the form {F(x, y) = 0, G(x, y) = 0}:


> F := (2*x^2*y - 2*x^2 - 3*x + y^3 - 33*y + 32) * ((x-2)^2 + y^2 + 3):


> G := (x^2 + y^2 - 23) * (x^2 + y^2 + 2):

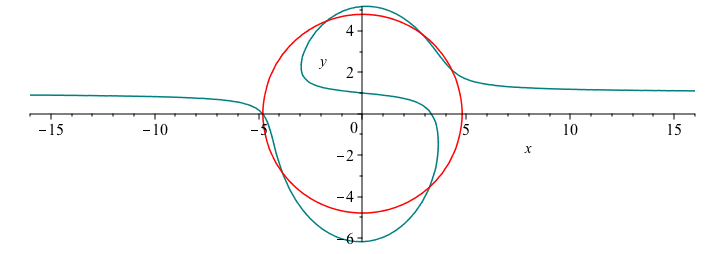

  • The common roots of both polynomials are the intersections of their corresponding algebraic curves:


> plots[implicitplot]([F = 0, G = 0], x=-16..16, y=-7..6, color=["Teal", "Red"], gridrefine=2, scaling=constrained, size=[0.7,0.35]);


Plot_2d


  • Elimination theory for algebraic equation systems tells us that all x-coordinates of the common solutions are roots of the resultant polynomial of F and G with respect to y:


> R := resultant(F, G, y):


  • This resultant is a univariate polynomial with irrational roots, some of which may be complex. The roots are candidate values for the x-coordinate of simultaneous solutions. Note that we store symbolic expressions for the solutions, not just approximations:


> candidates := sort([RealDomain[solve](R)], key=evalf):


> evalf(candidates);


[-4.795738156, -3.854101966, -1.739664347, 1.250000000, 2.854101966, 3.227646598, 4.307755905, 7.500000000]
[-4.795738156, -3.854101966, -1.739664347, 1.250000000, 2.854101966, 3.227646598, 4.307755905, 7.500000000]



  • However, some of the candidates might be spurious. We can use the new interface for RootFinding:-Isolate to determine the roots along the fibers of F and G when we substitute the candidates:


> a := candidates[1];


a := RootOf(`+`(`*`(`^`(_Z, 4)), `-`(`*`(`^`(_Z, 3))), `-`(`*`(27, `*`(`^`(_Z, 2)))), `*`(28, `*`(_Z)), 116), -4.812 .. -4.758)


> fa := subs(x=a, F):


> ga := subs(x=a, G):


> Isolate(fa);


[y = -0.2992556510e-1]


> Isolate(ga);


[y = -0.2992556510e-1, y = 0.2992556510e-1]


  • Indeed, there is a common solution close to x = evalf[3](a), y = -0.3e-1:


> is(RootOf(fa, y, -0.03) = RootOf(ga, y, -0.03));


true


  • However, let's look at the candidate at b = 1.25:


> b := candidates[4];


b := `/`(5, 4)


> fb := subs(x=b, F):


> gb := subs(x=b, G):


> Isolate(fb);


[y = -5.845766191, y = .8624794396, y = 4.983286752]


> Isolate(gb);


[y = -4.630064794, y = 4.630064794]


  • This clearly is a spurious candidate; the roots of F(1.25, y) and G(1.25, y) are distinct.


  • The example code above can help to filter spurious solutions, but it is not a complete solver for bivariate systems; it allows to filter out suspicious candidates, but does not validate all solutions. Such verification is provided by the multivariate solvers in the RootFinding package:


> Isolate([F,G], [x,y]);


[[x = 3.227646598, y = -3.547153427], [x = -3.854101966, y = -2.854101966], [x = -4.795738156, y = -0.2992556510e-1], [x = 4.307755905, y = 2.107899206], [x = 2.854101966, y = 3.854101966], [x = -1.73...
[[x = 3.227646598, y = -3.547153427], [x = -3.854101966, y = -2.854101966], [x = -4.795738156, y = -0.2992556510e-1], [x = 4.307755905, y = 2.107899206], [x = 2.854101966, y = 3.854101966], [x = -1.73...
[[x = 3.227646598, y = -3.547153427], [x = -3.854101966, y = -2.854101966], [x = -4.795738156, y = -0.2992556510e-1], [x = 4.307755905, y = 2.107899206], [x = 2.854101966, y = 3.854101966], [x = -1.73...



  • However, the multivariate polynomial solver requires coefficients of type numeric (that is, rationals or floats). Consider the case where we slightly change F by replacing 3 with Pi in the last term:


> F := (2*x^2*y - 2*x^2 - 3*x + y^3 - 33*y + 32) * ((x-2)^2 + y^2 + Pi):


> Isolate([F,G], [x,y]);


Error, (in RootFinding:-Isolate) polynomials to be solved must have numeric coefficients


  • The more naive approach above, while uncertified, will work nevertheless:


> R := resultant(F, G, y):


> candidates := sort([RealDomain[solve](R)], key=evalf):


> evalf(candidates);


[-4.795738156, -3.854101966, -1.739664347, 1.285398164, 2.854101966, 3.227646598, 4.307755905, 7.535398164]
[-4.795738156, -3.854101966, -1.739664347, 1.285398164, 2.854101966, 3.227646598, 4.307755905, 7.535398164]



> a := candidates[1];


a := RootOf(`+`(`*`(`^`(_Z, 4)), `-`(`*`(`^`(_Z, 3))), `-`(`*`(27, `*`(`^`(_Z, 2)))), `*`(28, `*`(_Z)), 116), -4.795738156)


> fa := subs(x=a, F):


> ga := subs(x=a, G):


> Isolate(fa);


[y = -0.2992556510e-1]


> Isolate(ga);


[y = -0.2992556510e-1, y = 0.2992556510e-1]


> b := candidates[4];


b := `+`(`*`(`/`(1, 4), `*`(Pi)), `/`(1, 2))


> fb := subs(x=b, F):


> gb := subs(x=b, G):


> Isolate(fb);


[y = -5.827352781, y = .8577160795, y = 4.969636701]


> Isolate(gb);


[y = -4.620362709, y = 4.620362709]


  • Finally, we show how the combination of the constraints and output options of RootFinding:-Isolate can provide certified information, and will allow us to programmatically exclude spurious candidates even with irrational coefficients.


> rts_fb, gb_at_rts_fb := Isolate(fb, constraints=[gb], output=interval):


> contains_zero := iv -> evalb(iv[1] <= 0 and iv[2] >= 0):


> seq(contains_zero(rhs(gb_at_rts_fb[i][1])), i=1..nops(rts_fb));


false, false, false


  • Indeed, gb evaluated over all isolating intervals for fb does not contain zero, which confirms that F and G have no common zero at x = b. In contrast,


> rts_fa, ga_at_rts_fa := Isolate(fa, constraints=[ga], output=interval):


> seq(contains_zero(rhs(ga_at_rts_fa[i][1])), i=1..nops(rts_fa));


true


  • shows that ga, evaluated at the isolating intervals for the root of fa, contains zero. This still does not validate the simultaneous zero of both systems, but is a strong hint. Techniques along these lines can serve to filter candidates numerically before trying time-consuming symbolic simplification and zero-testing, and can be used as cornerstones for complete solvers.


  • Note that the aforementioned routines crucially rely on inputs that are served as symbolic expressions rather than approximations:


> apx := evalf(a);


apx := -4.795738156


> fapx := subs(x=apx, F):


> gapx := subs(x=apx, G):


> rts_fapx, gapx_at_rts_fapx := Isolate(fapx, constraints=[gapx], output=interval):


> seq(contains_zero(rhs(gapx_at_rts_fapx[i][1])), i=1..nops(rts_fapx));


false


  • Even a tiny perturbation of the candidate solution in x will produce distinct roots of F and G in y. Thus, the direct handling of arbitrary real coefficients is not only convenient, but required for correctness.


Performance improvements for root isolation and root refinement

  • The new default algorithm of Isolate also features vastly improved performance for ill-conditioned polynomials with clustered roots. The root finding method eventually converges quadratically to regions containing roots, rather than just linearly. For example, the following class of polynomials has a cluster of roots extremely close to `^`(2, -100):


> with(RootFinding):


> mig := n -> x^n - (nextprime(2^100)*x^2 - 1)^2:


> time(Isolate(mig(10)));


0.15e-1


> time(Isolate(mig(10), method=RS));


0.27e-1


> time(Isolate(mig(50)));


.209


> time(Isolate(mig(50), method=RS));


.877


> time(Isolate(mig(100)));


1.125


> time(Isolate(mig(100), method=RS));


7.609


> time(Isolate(mig(200)));


7.469


> timelimit(600, Isolate(mig(200), method=RS));


time expired


  • The same technique allows even more dramatic improvements for root finding requests with high accuracy even on well-conditioned problems:


> f := add(rand(-1. .. 1.)() * x^i, i=0..100):


> time(Isolate(f, digits=100));


0.56e-1


> time(Isolate(f, digits=100, method=RS));


.239


> time(Isolate(f, digits=1000));


.293


> time(Isolate(f, digits=1000, method=RS));


107.328


> time(Isolate(f, digits=10000));


10.824


> timelimit(600, Isolate(f, digits=10000, method=RS));


time expired
