> # Integrals in Maple


>


>


> The following was implemented in Maple by Marcus Davidsson (2008) davidsson_marcus@hotmail.com


>


>


>


>


> ############################# Our basic Integral ############################


> restart;


> # Our curve is given by


> f:= t -> 3+t^2;


proc (t) options operator, arrow; `+`(3, `*`(`^`(t, 2))) end proc (1)


> # The area under the curve is given by


> Int(f(t),t=0..4);


>


Int(`+`(3, `*`(`^`(t, 2))), t = 0 .. 4) (2)


> evalf(%);


33.33333333 (3)


>


>


>


> ############################ Summation when rectangule width is 1  ######################


>


> restart;


> f:= t -> 3+t^2;


>


proc (t) options operator, arrow; `+`(3, `*`(`^`(t, 2))) end proc (4)


> # Note that the intercept is 3 and the slope is 1


>

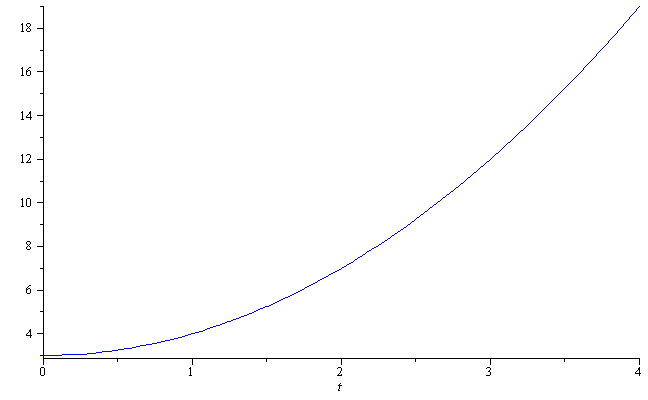

> plot(f(t), t = 0..4, color = blue);


Plot_2d


>


> with(student):


> # The last 4 in the maple input below is the number of rectangles in the below figure

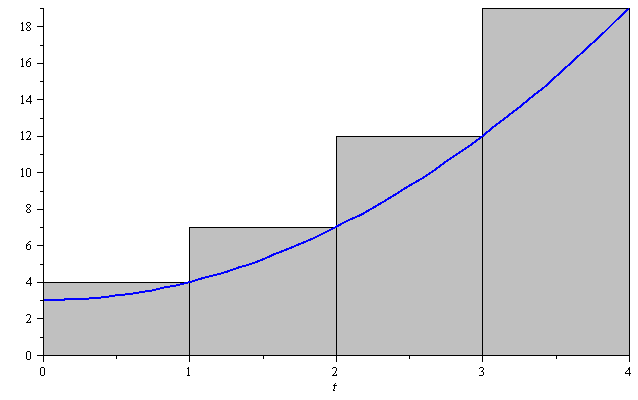

> rightbox(f(t), t = 0..4, 4, color = blue, shading = grey);


>


Plot_2d


> # The value of f (height) at different time periods are given by


> f(1);f(2);f(3);f(4);








4
7
12
19 (5)


> # In order to get the area of each rectangles


> # we multiply the height with the width (=1)


>


> f(1)*1;


4 (6)


> f(2)*1;


7 (7)


> f(3)*1;


12 (8)


> f(4)*1;


19 (9)


> # The total area is simply the sum of the individual retangles


> S:=[seq(f(i)*1,i=1..4,1)];


[4, 7, 12, 19] (10)


> evalf(sum(S[k]*1,k=1..4),3);


42. (11)


>


> # Our integral was 33.3 so it is a bit over. We can increase the accuracy


> # by decreasing the rectangule width


>


>


>


>


> ######################## Summation when rectangule width is 1/10  #############


>


> restart;


> f:= t -> 3+t^2;


proc (t) options operator, arrow; `+`(3, `*`(`^`(t, 2))) end proc (12)


> # The total amount of triangles


> Q:=40;


40 (13)


> # The amount of triangles between 0 and 1


> P:=Q/4;


10 (14)


> # The incremental change in t over time


> T:=evalf(1/P);


.1000000000 (15)


> with(student):


> # The Q in the maple input below is the number of rectangles in the below figure

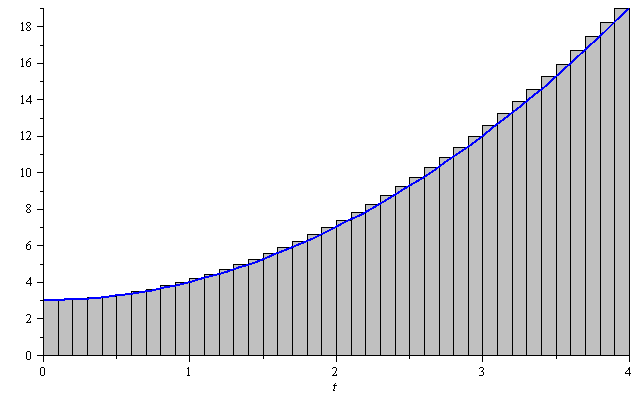

> rightbox(f(t), t = 0..4, Q, color = blue, shading = grey);


Plot_2d


> # The value of f (height) for the first 4 cases are given by


> f(T);f(T+T);f(T+T+T);f(T+T+T+T);








3.010000000
3.040000000
3.090000000
3.160000000 (16)


> # In order to get the area of each rectangles


> # we multiply the hight with the width T. So for the first 4 cases we get


>


> f(T)*T;


.3010000000 (17)


> f(T+T)*T;


.3040000000 (18)


> f(T+T+T)*T;


.3090000000 (19)


> f(T+T+T+T)*T;


.3160000000 (20)


> # The total area is simply the sum of the individual retangles


> S:=[evalf(seq(f(i)*T,i=T..4.01,T),3)];


[.301, .304, .309, .316, .325, .336, .349, .364, .381, .400, .421, .444, .469, .496, .525, .556, .589, .624, .661, .700, .741, .784, .829, .876, .925, .976, 1.03, 1.08, 1.14, 1.20, 1.26, 1.32, 1.39, 1...
[.301, .304, .309, .316, .325, .336, .349, .364, .381, .400, .421, .444, .469, .496, .525, .556, .589, .624, .661, .700, .741, .784, .829, .876, .925, .976, 1.03, 1.08, 1.14, 1.20, 1.26, 1.32, 1.39, 1...
[.301, .304, .309, .316, .325, .336, .349, .364, .381, .400, .421, .444, .469, .496, .525, .556, .589, .624, .661, .700, .741, .784, .829, .876, .925, .976, 1.03, 1.08, 1.14, 1.20, 1.26, 1.32, 1.39, 1...
(21)


> nops(S);


40 (22)


> evalf(sum(S[k]*1,k=1..nops(S)),3);


34.1 (23)


>


> # Our integral was 33.3 so we are still a little bit over.


> # we will now increase the accuratcy by using the Trapozide rule


>




>


>


>


> ################################  Trapozide Rule  ##############################


> restart;


> f:= t -> t^2 + 3;


proc (t) options operator, arrow; `+`(`*`(`^`(t, 2)), 3) end proc (24)




> # The total amount of triangles


> Q:=24;


24 (25)


> # The amount of triangles between 0 and 1


> P:=Q/4;


6 (26)


> # The incremental change in t over time


> T:=evalf(1/P,4);


.1667 (27)


> with(student):


> # The Q in the maple input below is the number of rectangles in the below figure

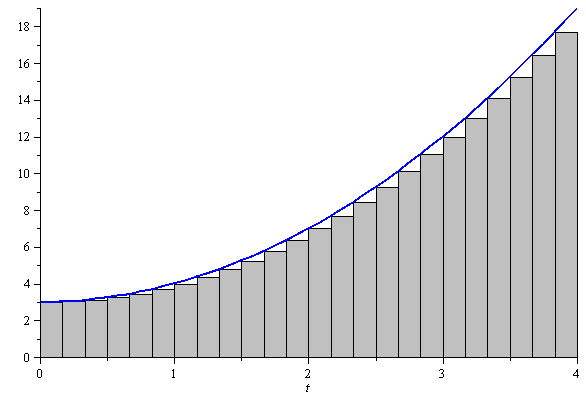

> leftbox(f(t), t = 0..4, Q, color = blue, shading = grey);


>


Plot_2d


>


>


> # The value of f (height) at different time periods is given by


> f(T);f(T+T);f(T+T+T);f(T+T+T+T);f(T+T+T+T+T);










3.02778889
3.11115556
3.25010001
3.44462224
3.69472225 (28)


>


> # We have previously just took the height of the rectangle at time t which meant that


> # we overestimated the height of the rectangel. In this case in order


> # to get the area of each rectangles we use the trapezoid rule.


> # We approximate the hight of each rectangle by taking the value of f


> # at time t (height at time t) plus the value of f at time t+1 (height at time t+1)


> # divided by 2 (average height). We then multiply that average height with the


> # rectangle width. Note that the trapezoid rule results in that we over estimate


> # the area to the left of the curve and underestimate the area to the right


> # of the curve, which means that the rectagual area should be more accurate.


>


>


> #################################################


>


> # Trapezoid rule for a three period curve


>


> T_:=(1/2)*[H(0)+H(1)]*triangle_t+(1/2)*[H(1)+H(2)]*triangle_t+(1/2)*[H(2)+H(3)]*triangle_t;


`+`(`*`(`/`(1, 2), `*`([`+`(H(0), H(1))], `*`(triangle_t))), `*`(`/`(1, 2), `*`([`+`(H(1), H(2))], `*`(triangle_t))), `*`(`/`(1, 2), `*`([`+`(H(2), H(3))], `*`(triangle_t)))) (29)


> # If we multiply in (1/2) and triangle_t in the parenthases and notice that


> # H(0)=H_(0),H(1)=H_(1) and H(2)=H_(2) we get;


>


> T_:=(1/2)*triangle_t*H_(0)+(1/2)*triangle_t*H_(1)+(1/2)*triangle_t*H(1)+(1/2)*triangle_t*H_(2)+(1/2)*triangle_t*H(2)+(1/2)*triangle_t*H(3);


`+`(`*`(`/`(1, 2), `*`(triangle_t, `*`(H_(0)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H_(1)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H(1)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H_(2)))), `*`(`/`(1, 2), `*...
`+`(`*`(`/`(1, 2), `*`(triangle_t, `*`(H_(0)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H_(1)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H(1)))), `*`(`/`(1, 2), `*`(triangle_t, `*`(H_(2)))), `*`(`/`(1, 2), `*...
(30)


> T_:=collect(%,triangle_t);


`*`(`+`(`*`(`/`(1, 2), `*`(H_(0))), `*`(`/`(1, 2), `*`(H_(1))), `*`(`/`(1, 2), `*`(H(1))), `*`(`/`(1, 2), `*`(H_(2))), `*`(`/`(1, 2), `*`(H(2))), `*`(`/`(1, 2), `*`(H(3)))), `*`(triangle_t)) (31)


> # we note that (1/2)*H_(1)+(1/2)*H(1)=H(1) and (1/2)*H_(2)+(1/2)*H(2)=H(2) so we get


> H_(1):=H(1): H_(2):=H(2): T_;


`*`(`+`(`*`(`/`(1, 2), `*`(H_(0))), H(1), H(2), `*`(`/`(1, 2), `*`(H(3)))), `*`(triangle_t)) (32)


> #################################################


>


> # The rectanguel width is T so for the first 4 cases we get


>


> evalf(((f(0)+f(T))/2)*T,3);


.505 (33)


> evalf(((f(T)+f(T+T))/2)*T,3);


.515 (34)


> evalf(((f(T+T)+f(T+T+T))/2)*T,3);


.530 (35)


> evalf(((f(T+T+T)+f(T+T+T+T))/2)*T,3);


.560 (36)


> # As previously the total area is simply the sum of the individual retangles


>


> # We can also solve the above problem by typing


> for i from T by T to 4.01 do


> A[i]:=evalf(((f(i-T)+f(i))/2)*T,3) end do:


> S:=[seq(A[i],i=T..4.01,T)];


[.505, .515, .530, .560, .595, .640, .700, .760, .835, .920, 1.01, 1.12, 1.22, 1.34, 1.48, 1.62, 1.76, 1.92, 2.09, 2.26, 2.44, 2.64, 2.84, 3.06]
[.505, .515, .530, .560, .595, .640, .700, .760, .835, .920, 1.01, 1.12, 1.22, 1.34, 1.48, 1.62, 1.76, 1.92, 2.09, 2.26, 2.44, 2.64, 2.84, 3.06]
(37)


>


> sum(S[j],j=1..Q);


33.360 (38)


>


> # Our integral was 33.3 so 33.36 is acceptable. However to get the most


> # accurate estimation of the area under the curve we should use the integral


>


>


>


> #######################  Basic Economics Example and Extention ####################


>


> restart;


> # The growth of an economy G evolves over time and is a function of 5 variables


> # Initial resources A (influence the intercept )


> # Initial population B (influence the intercept )


> # Peoples willingness to work W (influence slope)


> # Amount of entreprenesurieal activities E (influence slope)


> # Time (slope)


>


> # The larger the area under the curve G(t) the larger the growth in the economy


>


> # Our curve is given by


> G:= t -> (A+B)+(W+E)*t;


proc (t) options operator, arrow; `+`(A, B, `*`(`+`(W, E), `*`(t))) end proc (39)




> # The area under the curve is therefore given by


> I_:=Int(G(t),t=0..4);


>


Int(`+`(A, B, `*`(`+`(W, E), `*`(t))), t = 0 .. 4) (40)


> # Our parameteres are given by


> A:=5: B:=10: W:=5: E:=5: I_;


Int(`+`(15, `*`(10, `*`(t))), t = 0 .. 4) (41)


> # The gowth in the economy is there for given by


> evalf(I_);


140. (42)


>


> with(student):

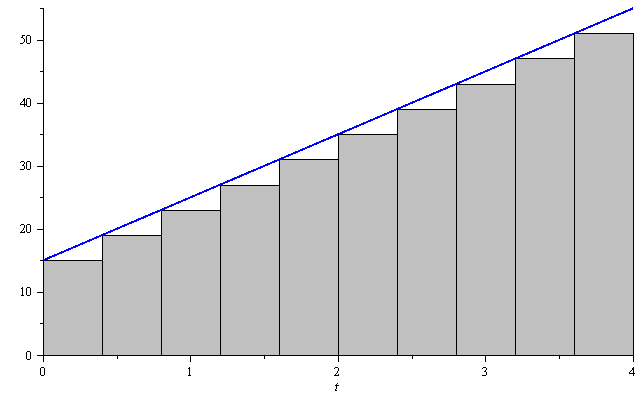

> leftbox(G(t), t = 0..4, 10, color = blue, shading = grey);


Plot_2d


>


>
