Maple, C and Assembly Language ? Performance Comparison


Milorad Pop-To?ić, Igor Skender
Department of Computer Engineering
School of Electrical Engineering, University of Belgrade, Serbia,


We show how to utilize Maple external calling mechanism to speed up function execution by coding them in C and assembly language. Techniques were demonstrated on Jones? algorithm for finding the n-th prime number.


In this article, it will be shown how to utilize Maple external calling mechanism in order to solve real problems faster, by calling external functions written in C and assembly language. Maple define_external function was used to call routines written in C and assembly language MASM, from DLL libraries [3,4]. These techniques were demonstrated on the example of Jones? algorithm, an algorithm for finding the n-th prime number [1, 2]. Furthermore, we made measurements and comparison of execution time for different implementations of the algorithm: assembly language, C language, and Maple procedures.

Jones? algorithm

Jones? algorithm for finding the n-th prime number states [1, 2]:

Let Typesetting:-mrow(Typesetting:-mi( be the n-th prime number. Formula Typesetting:-mrow(Typesetting:-mi(, which generates the n-th prime number for given n, is given as:


where Typesetting:-mrow(Typesetting:-mi( is a function that returns the remainder of division of number a by number b, where Typesetting:-mrow(Typesetting:-mi( and Typesetting:-mrow(Typesetting:-mo( is a function defined as:


Function Typesetting:-mrow(Typesetting:-mi( returns the array of prime numbers Typesetting:-mrow(Typesetting:-mi(
There is a function in Maple,
ithprime(n), which returns values of Typesetting:-mrow(Typesetting:-mi( from a database. Our goal is to illustrate what can be achieved by connecting Maple to C and assembly language, on the example of Jones? algorithm for finding the function Typesetting:-mrow(Typesetting:-mi(.

The code for the procedure in Maple for finding Typesetting:-mrow(Typesetting:-mi( function using Jones? algorithm is given below:

> restart:
> M := proc (x::integer, y::integer)
>  if x<y then 0;
>  else x-y;
>  fi;
> end:
> JonesM := proc (n::integer)
>  local m,s,i,p,j,f,k;
>  m := n*n;
>  s := 1;
>  for i from 1 to m do
>   p:=0;
>      for j from 1 to i do
>      f := 1;
>   for k from 1 to (j-1) do
>          f := f*k*k;
>                 f := f mod j;
>           od;
>   p := p+f;
>      od;
>      s := s+ M(1, M(p,n));
>  od;
> RETURN (s);
> end:

The code in C for finding Typesetting:-mrow(Typesetting:-mi( function using Jones? algorithm is given below:


#define M(x,y) ((x)>(y) ? ((x)-(y)):(0))
int i,j,k,n,m,p,f,s;
int Jones(int n) {
	for ( m=n*n, s=i=1; i<=m; i++) {
		for ( p=0, j=1; j<=i; j++) {
			for ( f=k=1; k<j; k++) { f=f*k*k; f%=j; }
		s+=M(1, M(p,n));
return s;

In order to call this code from within Maple it should, first, be compiled into a DLL (Dynamic Linking Library). A compiler from Microsoft Visual Studio .NET was chosen at this place. We compile the code by issuing the following command:

  > cl.exe -LD -Gy -Gz JonesC.c -link /export:Jones

It is essential to include keyword /export: followed by the name of the function to be exported and used from within Maple. Note that any other C compiler can be used here as long as it produces a DLL with stdcall calling convention, and exports symbol Jones.From this point onwards, compiled DLL library JonesC.dll, is connected to Maple by using define_external function, as follows:

> JonesC:=define_external(
>  'Jones',
>  'n'::integer[4],
>  'RETURN'::integer[4],
>  'LIB'="./JonesC.dll"
>  ):

It should be noted that Maple can also call functions from UNIX .so libraries, which have similar function as DLL libraries in Windows.From this point onwards, the call JonesC() from within Maple appears to be exactly the same as a call to a built-in Maple function, although the function Jones from the DLL library gets called.

The procedure in assembly language for finding Typesetting:-mrow(Typesetting:-mi( function using Jones? algorithm is given below [7]:


.model flat, stdcall
LibMain proc h:DWORD, r:DWORD, u:DWORD
    mov eax, 1
LibMain Endp
; s=ax   j=bx   k=cx  p=si  i=di
Jones proc n:DWORD
    LOCAL m:DWORD
    LOCAL s:DWORD
    push ebx
    push ecx
    push edx
    mov eax, n
    mul eax
    mov m, eax
    mov eax, 1
    mov s,  eax
    mov edi, eax
    cmp edi, m
    jg  l0
    mov ebx, 1
    xor esi, esi
    cmp ebx, edi
    jg  l1
    mov eax, 1
    mov ecx, eax
    cmp ecx, ebx
    jge l2
    mul ecx
    mul ecx
    div ebx
    mov eax, edx
    inc ecx
    jmp loop3
    add esi, eax
    inc ebx
    jmp loop2
    cmp esi, n
    jg  skip
    inc s
    inc edi
    jmp loop1
    pop edx
    pop ecx
    pop ebx
    mov eax, s
Jones endp
End LibMain

 Apart form this file, one more is needed. It lists functions, which are to be exported from the DLL, which is, in this case, the function Jones.



Compiling and linking the DLL library, using MASM is done by issuing:

 > \masm32\bin\ml /c /coff JonesASM.asm  > \masm32\bin\Link /SUBSYSTEM:WINDOWS /DLL /DEF:JonesASM.def JonesASM.obj

Generated library JonesASM.dll is connected to Maple, as follows:

> JonesASM:=define_external(

The three shown implementations of function Jones are called from within Maple by issuing the following commands, respectively:

> n := 30;
30 (3.1)
> JonesM(n); # Call to Maple procedure
> JonesC(n); # Call to function in C DLL
> JonesASM(n); # Call to function in ASM DLL


113 (3.2)


Measurements and comparison of execution time for Jones? algorithm were made for all three presented implementations. To accomplish that, we used Maple time() function which returns total processor time used for executing expression. We used this function to calculate execution time for the three solutions, for Typesetting:-mrow(Typesetting:-mi(Typesetting:-mrow(Typesetting:-mi(, by issuing the following commands:

> time(JonesM(n));    # Maple procedure execution
115.874 (4.1)
> time(JonesC(n));    # C function execution time
1.907 (4.2)
> time(JonesASM(n));  # ASM function execution time
1.514 (4.3)

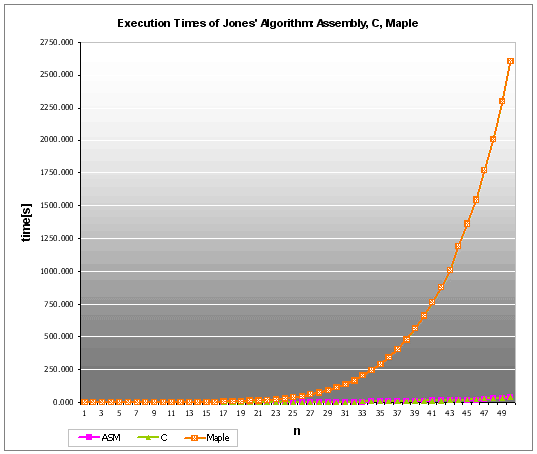

Based on measured values, the chart that shows execution times for three presented implementations was created.




It can be observed from this chart that C and assembly language solutions have considerably better performance, compared to Maple procedures. For Typesetting:-mrow(Typesetting:-mi( procedure in Maple completes in about half an hour, while the same result, by applying C and assembly language solutions, is computed in the matter of seconds. The function that describes the time of execution of Maple procedures rises more sharply, so the differences are even more stressed for larger n. From what is said can be concluded that Maple procedures are rather slow solution for problems which contain large number of iterations, primarily because Maple code is interpreted, and not compiled. In such cases, it is much more efficient to program in C, or even assembly language.

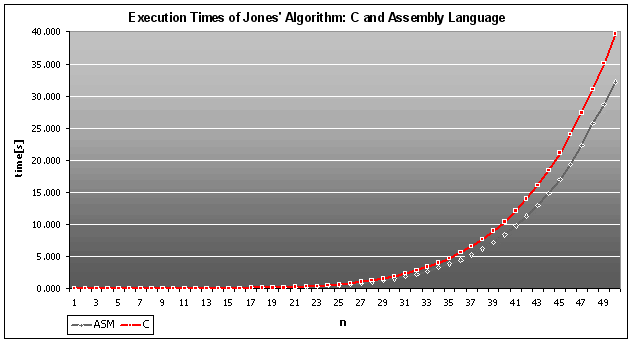

The chart that follows shows the comparison of execution time for procedures written in assembly language and C. We can observe performance advantage of assembly language over C, which becomes more stressed, as n gets larger. For instance, assembly language implementation is about Typesetting:-mrow(Typesetting:-mn( faster for Typesetting:-mrow(Typesetting:-mi(. For that reason, putting in more effort in producing assembly language code is worthwhile, especially for loops repeating billion times or more. For loops repeating couple of million times, there is a minor difference between assembly language and C in terms of execution time, so it is simpler to write such a function in C.




This article is based on a semester work in course Practicum of Computer Tools in Mathematics, which is taught in the 5th semester of Computer Engineering program on the Faculty of Electrical Engineering, University of Belgrade. We wish to thank assistant professor Dr Branko Male?ević for acquainting us with this topic.


[1] James P. Jones: Formula for the nth prime number,
Canadian Mathematical Bulletin 18, (1975), pp. 433--434.

[2] James P. Jones; Daihachiro Sato; Hideo Wada; Douglas Wiens:
Diophantine Representation of the Set of Prime Numbers, The American Mathematical Monthly Vol. 83, No. 6 (Jun., 1976), pp. 449-464

[3] Aleksandrs Mihailovs: Writing DLL in Assembly Language for External Calling in Maple - Technical Report,
Department of Mathematics, Tennessee Technological University
TR No. 2004-5, July 2004,

[4] Aleksandrs Mihailovs: Writing DLL in Assembly Language for External Calling in Maple,

[5] Michael Monagan: Programming in Maple: The Basics,
Institut f?r Wissenschaftliches Rechnen ETH-Zentrum, CH-8092 Z?rich, Switzerland

[6] David A. Patterson, John L. Henessy: Computer Organization and Design: The Hardware/Software Interface,
Morgan Kaufmann; 3rd edition

[7] Branko Male?ević: Examples for the special course ? Algorithms in C, (according to the MSc course of Department of Algebra and Mathematical Logic, Faculty of Mathematics, Belgrade 1995).

[8] Veljko Milutinović: The Best Method for Presentation of Research Results,
Department of Computer Engineering, School of Electrical Engineering, University of Belgrade
