Hamiltonian Systems



Maple 10 Document

Prepared by

Prof. David Macias Ferrer

E-mail: david.macias@iest.edu.mx

Madero City, Mexico

URL: http://www.geocities.com/dmacias_iest/MyPage.html





Goals

  • To show the principal characteristics of the Non Linear Differential Equations Systems, in particular: Hamiltonian Systems


  • To use the Maple Tools to find Hamiltonian Function associated.


  • To show the powerful Maple 10 graphics tools to visualize some trajectories on phase plane.


Introduction

We consider the following system:

Diff(x(t), t) = f(x, y)

Diff(y(t), t) = g(x, y)

where f and g are functions of two variables defined in a region Ω on x-y plane. If the following relationship:

Diff(f(x, y), x) = -(Diff(g(x, y), y))

is completed then, the system is called Hamiltonian System. Additionally, exist a function H(x, y)such that:

Diff(H(x, y), t) = 0

or

(Diff(H(x, y), x))*f(x, y)+(Diff(H(x, y), y))*g(x, y) = 0

in other words, this quantity is conserved.

Examples

with(DEtools), with(plots), with(linalg); -1

Example 1

sys1 := {diff(x(t), t) = y(t), diff(y(t), t) = x(t)-x(t)^2}

{diff(x(t), t) = y(t), diff(y(t), t) = x(t)-x(t)^2} (3.1.1)


For this system:

f1 := y

y (3.1.2)


g1 := x-x^2

x-x^2 (3.1.3)


so that:

Typesetting:-mrow(Typesetting:-mi(

>


therefore, the differential equations system is an Hamiltonian system.

Hamiltonian Function is given by:

Typesetting:-mrow(Typesetting:-mi(

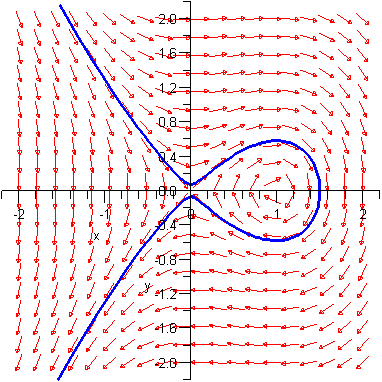

In other hand, the phase portrait with one trajectory in .15, -.16 are given by:

F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red)
F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red)
F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red)


Plot


You can see that, exist two equilibrium points, in 0, 0 and 1, 0, this is:

solve({g1 = 0, f1 = 0}, [x, y])

[[x = 0, y = 0], [x = 1, y = 0]] (3.1.4)


A quantitative analysis is possible if they are analyzed for each equilibrium point, through the Jacobian matrices and its eigenvalues, this is

For 0, 0:

Jacobian matrix is:

Typesetting:-mrow(Typesetting:-mi(

Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mtable(Typesetting:-mtr(Typesetting:-mtd(Typesetting:-mn( (3.1.5)


eigenvalues are:

eigenvalues(Matrix(%id = 154159596))

1, -1 (3.1.6)


as the eigenvalues are real and distinct then, the equilibrium point is a saddle point.

For 1, 0:

Jacobian matrix is:

Typesetting:-mrow(Typesetting:-mi(

Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mtable(Typesetting:-mtr(Typesetting:-mtd(Typesetting:-mn( (3.1.7)


eigenvalues are:

eigenvalues(Matrix(%id = 152339612))

I, -I (3.1.8)


as the eigenvalues are cojugate imaginary then, the equilibrium point can be a spiral source, a spiral sink or a center. In other words, the nature of this equilibrium point cannot be determined analytically.

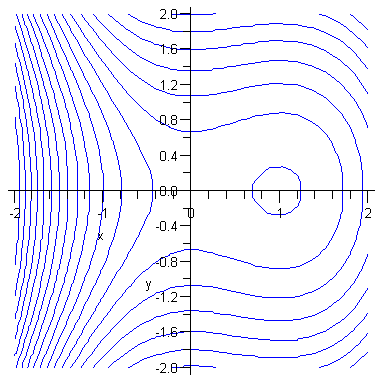

Returning to the Hamiltonian function, the following graph shows the existence of periodic solutions around the point 1, 0:

G := contourplot(1/2*y^2-1/2*x^2+1/3*x^3, x = -2 .. 2, y = -2 .. 2, contours = 20, color = blue)

Plot


If we compare these graphs, we have:

F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red); -1
F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red); -1
F := DEplot(sys1, [x(t), y(t)], t = -20 .. 10, x = -2 .. 2, y = -2 .. 2, [[x(0) = .15, y(0) = -.16]], linecolor = blue, thickness = 2, stepsize = .1, arrows = medium, color = red); -1


G := contourplot(1/2*y^2-1/2*x^2+1/3*x^3, x = -2 .. 2, y = -2 .. 2, contours = 20, color = blue); -1

display({G, F})

Plot


You can see that, the phase portrait and level curves of the Hamiltonian surface are similar, and their graphs state a lot about the behavior of the solutions.

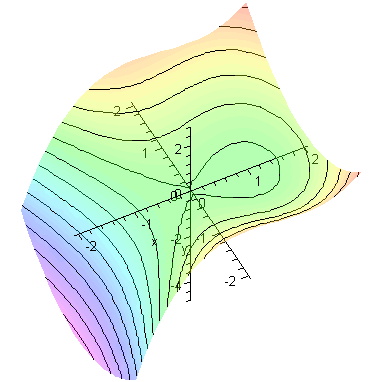

Level curves are:

plot3d(1/2*y^2-1/2*x^2+1/3*x^3, x = -2 .. 2, y = -2 .. 2, axes = normal, style = patchcontour, transparency = .66, shading = zhue, contours = 15, orientation = ([-117, 41]))
plot3d(1/2*y^2-1/2*x^2+1/3*x^3, x = -2 .. 2, y = -2 .. 2, axes = normal, style = patchcontour, transparency = .66, shading = zhue, contours = 15, orientation = ([-117, 41]))


Plot


Example 2

One important area of application of the Hamiltonian systems theory are in the field of Mechanical, in particular: Mechanical Vibrations. In this example we will show the free vibration of a mass-spring system.

If we consider that a 0.0625 slug is attached to a spring whose constant is 4 lb/ft and suppose that there is no external force and no damping then, this phenomenon can be modeled through a second order linear differential equation, that is:

(Diff(y, t, t))+64*y = 0

where y(t)represent the vertical displacements of the mass attached to the spring. This equation governs the motion of a vibrating mass at the end of a vertical spring. This phenomenon is known as Simple Harmonic Motion.



If Diff(y, t) = vthen, the differential equation given can be replaced by:

restart; -1

with(DEtools), with(plots), with(linalg); -1

sys2 := {diff(y(t), t) = v(t), diff(v(t), t) = -64*y(t)}

{diff(y(t), t) = v(t), diff(v(t), t) = -64*y(t)} (3.2.1)


whose general solution is given by:

dsolve(sys2)

{v(t) = _C1*sin(8*t)+_C2*cos(8*t), y(t) = -1/8*_C1*cos(8*t)+1/8*_C2*sin(8*t)} (3.2.2)


Of the equation (2.12) we have:

f2 := v

v (3.2.3)


g2 := -64*y

-64*y (3.2.4)


so that:

Typesetting:-mrow(Typesetting:-mi(



therefore the mass-spring system is an Hamiltonian system.

Hamiltonian is given by:

Typesetting:-mrow(Typesetting:-mi(



In Physics, the expression given by (2.17) is called Energy Function.

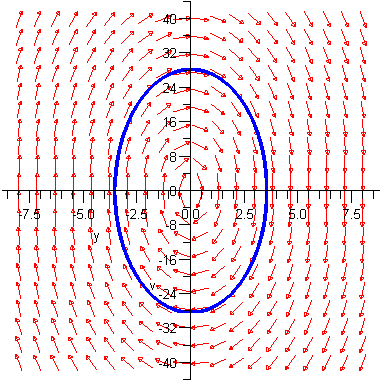

J := DEplot(sys2, [y(t), v(t)], t = -10 .. 10, y = -8 .. 8, v = -40 .. 40, [[y(0) = 2.5, v(0) = 20]], linecolor = blue, thickness = 2, stepsize = 0.1e-1, arrows = medium, color = red)
J := DEplot(sys2, [y(t), v(t)], t = -10 .. 10, y = -8 .. 8, v = -40 .. 40, [[y(0) = 2.5, v(0) = 20]], linecolor = blue, thickness = 2, stepsize = 0.1e-1, arrows = medium, color = red)


Plot


You can see that, exist only one equilibrium point: in 0, 0 in y-v plane.

solve({f2 = 0, g2 = 0}, [y, v])

[[y = 0, v = 0]] (3.2.5)


In this case, a quantitative analysis is possible if the equilibrium point can be analyzed through the Jacobian matrix and its eigenvalues, this is:

For the unique point 0, 0 we have:

Jacobian matrix is:

Typesetting:-mrow(Typesetting:-mi(

Typesetting:-mfenced(Typesetting:-mrow(Typesetting:-mtable(Typesetting:-mtr(Typesetting:-mtd(Typesetting:-mn( (3.2.6)


eigenvalues are:

eigenvalues(Matrix(%id = 151574596))

8*I, -8*I (3.2.7)


as the eigenvalues are cojugate imaginary then, the equilibrium point can be a spiral source, a spiral sink or a center. In this case, is evident that the equilibrium point is a center.

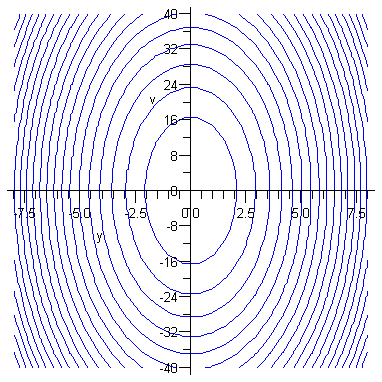

Returning to the Hamiltonian function, the following graph shows the existence of periodic solutions around the point 0, 0:

K := contourplot(1/2*v^2+32*y^2, y = -8 .. 8, v = -40 .. 40, contours = 20, color = blue)

Plot




J := DEplot(sys2, [y(t), v(t)], t = -10 .. 10, y = -8 .. 8, v = -40 .. 40, [[y(0) = 2.5, v(0) = 20]], linecolor = blue, thickness = 2, stepsize = 0.1e-1, arrows = medium, color = red); -1
J := DEplot(sys2, [y(t), v(t)], t = -10 .. 10, y = -8 .. 8, v = -40 .. 40, [[y(0) = 2.5, v(0) = 20]], linecolor = blue, thickness = 2, stepsize = 0.1e-1, arrows = medium, color = red); -1


K := contourplot(1/2*v^2+32*y^2, y = -8 .. 8, v = -40 .. 40, contours = 20, color = blue); -1

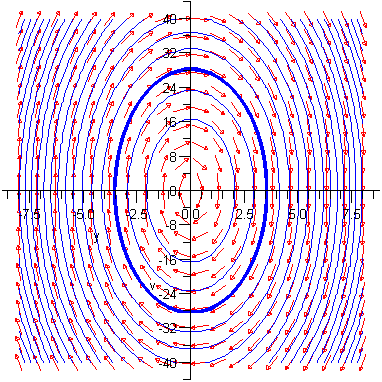

display({K, J})

Plot


You can see that, the phase portrait and level curves of the Hamiltonian surface are similar

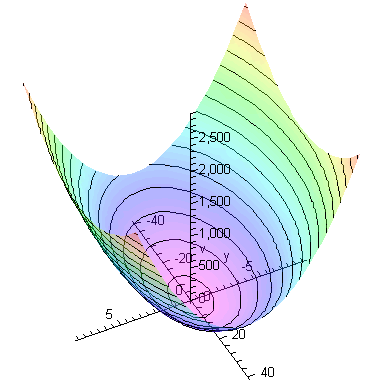

Level curves of the Energy Function is given by:

plot3d(1/2*v^2+32*y^2, y = -8 .. 8, v = -40 .. 40, axes = normal, style = patchcontour, transparency = .66, shading = zhue, contours = 15, orientation = ([63, 47]))
plot3d(1/2*v^2+32*y^2, y = -8 .. 8, v = -40 .. 40, axes = normal, style = patchcontour, transparency = .66, shading = zhue, contours = 15, orientation = ([63, 47]))


Plot


The contours lines are coincident with the trajectories on y-v phase plane.

Bibliography

Blanchard P.,Devaney R.L.,Hall G.R.,"Differential Equations", First Edition, Brooks Cole Publishing and ITP Company, USA, 1998.
