# Dynamics of a double pendulum

You can switch back to the summary page by clicking here.

doublependulum.mws

Dynamics of a Double Pendulum

2000 Harald Kammerer, GERB Schwingungsisolierungen, Germany
http://www.gerb.com

This worksheet shows the calculation of the motion of a double pendulum

The author expects that this worksheet will only be used for teaching and educational purposes and not for commerical profit without contacting the author for a licensed agreement.

> restart;

Introduction

Consider a double pendulum system. At first the eigenfrequencies and the eigenmodes of the system are calculated. Second the motion of the system caused by specific initial coditions is calculated.

Index 1 belongs to the upper mass (m1, l1, d1, w1) , index 2 to the lower mass (m2, l2, d2, w2).

All units are kg, m, N and sec

The calculation is valid for small displacements, so that sin(x)=x and cos(x)=1.

Initialisation

> with(linalg):with(plots):with(plottools):with(linalg):

Warning, the name changecoords has been redefined

```Warning, the protected names norm and trace have been redefined and unprotected
```

```Warning, the name changecoords has been redefined
```

Description of the Mechanical Modell

Geometry

upper mass

> m1:=10.:l1:=1.:d1:=1.:

lower mass

> m2:=10.:l2:=1.:d2:=1.5:

weight force

> G1:=m1*9.81:

> G2:=m2*9.81:

Initial Conditions

> w10:=0:

> w20:=0:

> wp10:=0:

> wp20:=1:

System Matrices

Substitution of the derivations

>

>

>

>

System of Equations of Motion

Consider the momentum around point A.

Note: G*sin(phi)=G*phi; G*cos(phi)=G.

>

>

Mass-, Damping- Stiffness- and System Matrices

Mass

> MM:=matrix(2,2,[m1,0,0,m2]);

Damping

> DM:=matrix(2,2,[d1,0,0,d2]);

Stiffness

Collect the coefficients of the displacement terms of the system equation

> k11:=-coeff(rhs(eq1),w1(t)):

> k12:=-coeff(rhs(eq1),w2(t)):

> k21:=-coeff(rhs(eq2),w1(t)):

> k22:=-coeff(rhs(eq2),w2(t)):

> KM:=matrix(2,2,[k11,k12,k21,k22]);

System Matrix

Transform the 2 homogen equation of motion of degree 2 into 4 differencial equation of degree 1

> smd11:=matrix(2,2,[0,0,0,0]):smd12:=matrix(2,2,[1,0,0,1]):

> smd21:=-multiply(inverse(MM),KM):smd22:=-multiply(inverse(MM),DM):

> SMD:=matrix(4,4):

> SMD:=copyinto(smd11,SMD,1,1):SMD:=copyinto(smd12,SMD,1,3):SMD:=copyinto(smd21,SMD,3,1):SMD:=copyinto(smd22,SMD,3,3);

Eigenvalues and Eigenmodes

Solve the Eigenvalue Problem

> ewd:=eigenvals(SMD);

Eigenfrequency and Damping of the Eigenmodes

Eigenfrequency: imaginary part of the eigenvalue devided by 2 Pi.

Damping of the eigenmode: real part of the eigenvalue devided by the amount.

Note: only valid if the damping is undercritical.

> f01:=evalf(Im(ewd[1])/2/Pi):f02:=evalf(Im(ewd[2])/2/Pi):f03:=evalf(Im(ewd[3])/2/Pi):f04:=evalf(Im(ewd[4])/2/Pi):

> o1:=sqrt(Im(ewd[1])**2+Re(ewd[1])**2):o2:=sqrt(Im(ewd[2])**2+Re(ewd[2])**2):o3:=sqrt(Im(ewd[3])**2+Re(ewd[3])**2):o4:=sqrt(Im(ewd[4])**2+Re(ewd[4])**2):

> D1:=-Re(ewd[1])/o1:D2:=-Re(ewd[2])/o2:D3:=-Re(ewd[3])/o3:D4:=-Re(ewd[4])/o4:

Sort according the Eigenvalues

> o:=[o1,o2,o3,o4]:f0:=[f01,f02,f03,f04]:DL:=[D1,D2,D3,D4]:

> lstsrt:=sort([o[1],o[2],o[3],o[4]]):

> for i from 1 by 1 to 4 do

> for j from 1 by 1 to 4 do

> if (lstsrt[i]=o[j]) then

> num[i]:=j:

> if (i>1 and num[i]<>num[i-1]) then j:=4 fi:

> fi:

> od:

> od:

> for i from 1 by 1 to 4 do

> f0||i:=f0[num[i]];

> DL||i:=DL[num[i]];

> o||i:=o[num[i]];

> od:

View the Eigenvalues Numerical

(Eigenvalues with positiv and negativ sign but the same amount belong together)

> f01;DL1;

> f02;DL2;

> f03;DL3;

> f04;DL4;

Eigenmodes, Transformation Matrix

The eigenvectors arranged in form of a matrix yields the transformation matrix T to calculate the Motion in main coordinates

> ev:=eigenvects(SMD):

> unassign('i','j');

> T:=matrix(4,4):

> for i from 1 by 1 to 4 do

> for j from 1 by 1 to 4 do

> T[j,i]:=ev[i][3][1][j];

> od;

> ewk[i]:=ev[i][1]:

> od:

Transform System Matrixs into Main Coordinates

> AS:=multiply(inverse(T),multiply(SMD,T)):

elmininate numerical inaccuraties

> for i from 1 by 1 to 4 do
for j from 1 by 1 to 4 do

> if (i<>j) then AS[i,j]:=0 fi:

> if (i<>j) then AS[i,j]:=0 fi:

> od:

> od:

Calculation of the Motion

Transform the Initial Conditions into Main Coordinates

Vector of initial conditions

> w0:=vector(4,[w10,w20,wp10,wp20]);

Transformation in main coordinates

> z0:=multiply(inverse(T),w0);

> AB1:=z1(0)=z0[1];AB2:=z2(0)=z0[2];AB3:=z3(0)=z0[3];AB4:=z4(0)=z0[4];

Main coordinates and derivations

> Z:=matrix(4,1,[z1(t),z2(t),z3(t),z4(t)]);

> Zp:=matrix(4,1,[diff(z1(t),t),diff(z2(t),t),diff(z3(t),t),diff(z4(t),t)]);

Equation of Motion in Main Coordinates

> BGL:=Zp=AS&*Z;

separated equations

> bgl1:=lhs(evalm(BGL))[1,1]=rhs(evalm(BGL))[1,1];

> bgl2:=lhs(evalm(BGL))[2,1]=rhs(evalm(BGL))[2,1];

> bgl3:=lhs(evalm(BGL))[3,1]=rhs(evalm(BGL))[3,1];

> bgl4:=lhs(evalm(BGL))[4,1]=rhs(evalm(BGL))[4,1];

Solution

> lsg:=dsolve({bgl1,bgl2,bgl3,bgl4,AB1,AB2,AB3,AB4},{z1(t),z2(t),z3(t),z4(t)}):

> assign(lsg);

Transformation in Real Coordinates

> ZL:=matrix(4,1,[combine(expand(evalf(z1(t)))),combine(expand(evalf(z2(t)))),combine(expand(evalf(z3(t)))),combine(expand(evalf(z4(t))))]):

> YL:=multiply(T,ZL):

Displacements

> w1(t):=simplify(expand(YL[1,1])):

> w2(t):=simplify(expand(YL[2,1])):

Velocities

> v1(t):=simplify(expand(YL[3,1])):

> v2(t):=simplify(expand(YL[4,1])):

Graphical View of the Time History

Number of time steps

> ndt:=100:

Timestep

> dt:=0.5:

Displacements

> P1:=plot(Re(w1(t)),t=0..ndt*dt,color=red):

> P2:=plot(Re(w2(t)),t=0..ndt*dt,color=blue):

> display({P1,P2});

Velocities

> PV1:=plot(Re(v1(t)),t=0..ndt*dt,color=red):

> PV2:=plot(Re(v2(t)),t=0..ndt*dt,color=blue):

> display({PV1,PV2});

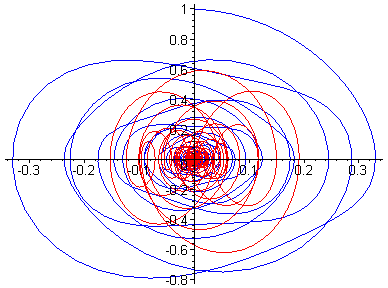

Phase Curve

> PPh1:=plot([Re(w1(t)),Re(v1(t)),t=0..ndt*dt],color=red):

> PPh2:=plot([Re(w2(t)),Re(v2(t)),t=0..ndt*dt],color=blue):

> display({PPh1,PPh2});

Animation

> FIX1:=curve([[-0.2,0],[-0.05,0]],color=black,thickness=2):

> FIX2:=circle([0,0],0.05,color=black):

> FIX3:=curve([[0.05,0],[0.2,0]],color=black,thickness=2):

> FIX:=display([FIX1,FIX2,FIX3]):

> MAN01:=circle([-0.2,-(l1+l2)+0.05],0.05,color=black,thickness=2):

> MAN02:=curve([[-0.2,-(l1+l2)],[-0.2,-(l1+l2)-0.15]],color=black,thickness=2):

> MAN03:=curve([[-0.2,-(l1+l2)-0.05],[-0.25,-(l1+l2)]],color=black,thickness=2):

> MAN04:=curve([[-0.2,-(l1+l2)-0.05],[-0.15,-(l1+l2)]],color=black,thickness=2):

> MAN05:=curve([[-0.2,-(l1+l2)-0.15],[-0.25,-(l1+l2)-0.3]],color=black,thickness=2):

> MAN06:=curve([[-0.2,-(l1+l2)-0.15],[-0.15,-(l1+l2)-0.3]],color=black,thickness=2):

> MAN0:=display([MAN01,MAN02,MAN03,MAN04,MAN05,MAN06]):

> MAN11:=circle([-0.2,-(l1+l2)+0.05],0.05,color=black):

> MAN12:=curve([[-0.2,-(l1+l2)],[-0.2,-(l1+l2)-0.15]],color=black,thickness=2):

> MAN13:=curve([[-0.2,-(l1+l2)-0.05],[-0.25,-(l1+l2)]],color=black,thickness=2):

> MAN14:=curve([[-0.2,-(l1+l2)-0.05],[-0.1,-(l1+l2)]],color=black,thickness=2):

> MAN15:=curve([[-0.2,-(l1+l2)-0.15],[-0.25,-(l1+l2)-0.3]],color=black,thickness=2):

> MAN16:=curve([[-0.2,-(l1+l2)-0.15],[-0.15,-(l1+l2)-0.3]],color=black,thickness=2):

> MAN1:=display([MAN11,MAN12,MAN13,MAN14,MAN15,MAN16]):

> MAN21:=circle([-0.3,-(l1+l2)],0.05,color=black):

> MAN22:=curve([[-0.3,-(l1+l2)-0.05],[-0.3,-(l1+l2)-0.20]],color=black,thickness=2):

> MAN23:=curve([[-0.3,-(l1+l2)-0.10],[-0.35,-(l1+l2)-0.05]],color=black,thickness=2):

> MAN24:=curve([[-0.3,-(l1+l2)-0.10],[-0.25,-(l1+l2)-0.05]],color=black,thickness=2):

> MAN25:=curve([[-0.3,-(l1+l2)-0.20],[-0.25,-(l1+l2)-0.15]],color=black,thickness=2):

> MAN26:=curve([[-0.3,-(l1+l2)-0.20],[-0.25,-(l1+l2)-0.18]],color=black,thickness=2):

> MAN2:=display([MAN21,MAN22,MAN23,MAN24,MAN25,MAN26]):

> MAN[0]:=MAN0:

> MAN[1]:=MAN1:

> MAN[2]:=MAN1:

> for i from 3 by 1 to ndt-1 do

> MAN[i]:=MAN2:

> od:

> MAN[ndt]:=MAN0:

> for i from 0 by 1 to ndt do

> x1:=evalf(Re(subs(t=i*dt,w1(t)))):

> x2:=evalf(Re(subs(t=i*dt,w2(t)))):

> PLI[i]:=curve([[0,0],[x1,-l1],[x2,-(l1+l2)]]):

> MASS1[i]:=disk([x1,-l1], 0.1, color=red):

> MASS2[i]:=disk([x2,-(l1+l2)], 0.1, color=blue):

> ANIM[i]:=display({PLI[i],MASS1[i],MASS2[i],FIX,MAN[i]});

> od:

> display([seq(ANIM[i],i=0..ndt)],insequence=true,scaling=constrained,axes=none,title=`Double Pendulum`);

>
