Boundary value problems for two-dimensional elliptic equations

by Aleksas Domarkas

Vilnius University, Faculty of Mathematics and Informatics,

Naugarduko 24, Vilnius, Lithuania

aleksas@ieva.mif.vu.lt

NOTE: In this session we find  solutions of boundary value problems for two-dimensional

Laplace's, Poisson or Helmholtz equations in regions r<R,  r>R and R1<r<R2

1 Example

Problem

Solve interior Dirichlet problem on a disk for the Laplace equation:

, r<R,  u| r=R =

Theory

Solution of the  problem   , r<R,  u| r=R =   is

 ,

where ,  .



Procedure

>

restart;

>	lap2di:=proc(f,R) local a,b;

>	a:=n->1/Pi*Int(f*cos(n*phi),phi=-Pi..Pi);

>	b:=n->1/Pi*Int(f*sin(n*phi),phi=-Pi..Pi);

>	a(0)/2+add(r^n/R^n*(a(n)*cos(n*phi)+b(n)*sin(n*phi)),n=1..Order);

>	RETURN(map(simplify,value(%)));end:

lap2di  solve interior Dirichlet problem on a disk for the Laplace equation:

, r<R,  u| r=R =

Calling Sequence: lap2di(f, R);

The lap2di function computes a truncated series  of solution  up  to  Order.

Examples

In examples 1-4 solution is exact.

Example 1

>	f:=cos(phi)^2:R:=1:

>	sol:=lap2di(f,R);

Checking the Solution:

>	linalg[laplacian](sol,[r,phi],coords=polar);

>	simplify(subs(r=R,sol)-f);

Example 2

>	f:=sin(phi)^3:R:=1:

>	sol:=lap2di(f,R);

Checking the Solution:

>	combine(linalg[laplacian](sol,[r,phi],coords=polar));

>	simplify(subs(r=R,sol)-f);

Example 3

>	f:=sin(phi)^6+cos(phi)^6:R:=1:

>	sol:=lap2di(f,R);

Checking the Solution:

>	linalg[laplacian](sol,[r,phi],coords=polar);

>	simplify(subs(r=R,sol)-f);

Example 4

>	f:=randpoly([x,y]);R:=5;

>	f:=subs(x=r*cos(phi),y=r*sin(phi),r=R,f);

>	sol:=lap2di(f,R);

Checking the Solution:

>	combine(linalg[laplacian](sol,[r,phi],coords=polar));

>	combine(subs(r=R,sol)-f);

Example 5

>	f:=phi^2+phi+1:R:=1:

>	Order:=6:sol6:=lap2di(f,R);

Checking the Solution:

>	simplify(linalg[laplacian](sol6,[r,phi],coords=polar));

>	err6:=simplify(subs(r=R,sol6)-f):

>	Order:=20:

>	sol20:=lap2di(f,R):

>	simplify(linalg[laplacian](sol20,[r,phi],coords=polar));

>	err20:=simplify(subs(r=R,sol20)-f):

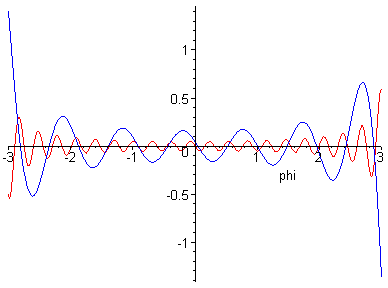

>	plot([err6,err20],phi=-3..3,color=[blue,red]);

2 Example

Problem

>

restart;

Solve  exterior boundary-value problem

                                ,  r>R,

                                u| r=R =g .

Here ,  or , ;

The function g may be polynomial  with variables x,y or sin(phi), cos(phi).

>	R:=rand(1..10)(); g:=randpoly([x,y],degree=rand(2..4)(),terms=3);

or

>	#g:=randpoly([sin(x),cos(y)]);

>

Theory

[vlad]: V.S.Vladimirov(ed.), Exercises book on Equations of Mathematical
Physics, Nauka, Moscow, 1982, 16

Solving problem

>	n:=degree(g);

>	subs(x=r*cos(phi),y=r*sin(phi),r=R,g);

>	ks:=combine(%,trig);

>	c:=subs([seq(sin(k*phi)=0,k=1..n),seq(cos(k*phi)=0,k=1..n)],ks);

>	for k to n do a||k:=coeff(ks,cos(k*phi));b||k:=coeff(ks,sin(k*phi));od:

See [vlad]  16  :

>	sol:=c+sum('(R/r)^k*(a||k*cos(k*phi)+b||k*sin(k*phi))','k'=1..n);

>	sol1:=expand(sol);

>	tr:=cos(phi)=x/r,sin(phi)=y/r;

>	solc:=subs(r=sqrt(x^2+y^2),collect(subs(tr,sol1),r));

>

Solution

Problem:

>	print(linalg[laplacian](u(x,y),[x,y])=0,` if  r>R`);

>	u=g,`  if  r`=R;

Solution:

>

sol;

or in  Cartesian coordinates:

>

solc;

>

Checking the Solution

>	simplify(linalg[laplacian](sol,[r,phi],coords=polar));

>	simplify(linalg[laplacian](solc,[x,y]));

>	simplify(subs(tr,solc-g),{x^2+y^2=R^2,r=R});

>

Note

In similar way can solve boundary-value problems in domains r<R and  R1<r<R2.

3 Example

Problem

Solve   boundary-value problem

                                ,  r1<r<r2,

                                 u| r=r 1 =u1, | r=r 2 =u2

Here  ;    r1, r2, u1, u2 -- constants.

Solving method

We consider problem

,  r1<r<r2,

u| r=r1 =0, | r=r2 =0

and problem

,  r1<r<r2,

  w| r=r1 =u1, | r=r2 =u2.

Then u+w is solution of our problem.  Solutions of these problems are sought in the form

Solving problem

>

restart;

>	with(linalg,laplacian):assume(r>0);

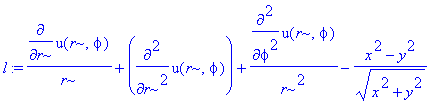

>	l:=expand(laplacian(u(r,phi),[r,phi], coords=polar))-(x^2-y^2)/sqrt(x^2+y^2);

>	tr:={x=r*cos(phi),y=r*sin(phi)};

>	l := combine(subs(tr,l));

>	subs(u(r,phi)=v(r)*cos(2*phi),l):

>	l1 := simplify(%/cos(2*phi));

>	spr := dsolve(l1,{v(r)});

>	solve({subs(r=r1,rhs(spr)),subs(r=r2,diff(rhs(spr),r))},{_C1,_C2});

>	v(r) := subs(%,rhs(spr));

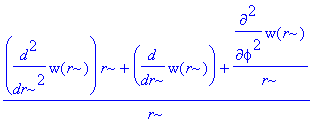

>	subs(u(r,phi)=w(r),laplacian(u(r,phi),[r,phi], coords=polar));

>	dsolve(%,w(r));

>	solve({subs(r=r1,rhs(%))=u1,subs(r=r2,diff(rhs(%),r))=u2},{_C1,_C2});

>	w(r) := subs(%,rhs(%%));

>	sol:=v(r)*cos(2*phi)+w(r):

Solution

>

u=sol;

Checking the Solution

>	combine(laplacian(sol,[r,phi],coords=polar) -subs(tr,(x^2-y^2)/sqrt(x^2+y^2)));

>	simplify(subs(r=r1,sol));

>	simplify(subs(r=r2,diff(sol,r)));

Solution in Cartesian coordinates

>	itr:={r=sqrt(x^2+y^2),phi=arctan(y/x)};

>	subs(itr,sol):

>	sol1:=simplify(convert(%,tan));

This is solution in Cartesian coordinates.

Checking the Solution:

>	simplify(laplacian(sol1,[x,y])-(x^2-y^2)/sqrt(x^2+y^2));

>	assume(r1>0,r2>0);

>	simplify(sol1,{x^2+y^2=r1^2}):

>	simplify(%,symbolic);

>	subs(tr,sol1):

>	combine(subs(r=r2,diff(%,r)),trig);

>

4 Example

Problem

We solve  Dirichlet boundary-value problems for Laplace's or Helmholtz Equations on a disk.

, r<R,

u| r=R =g

Here ;  or ; ;

The function g may be polynomial  with variables x, y or sin(phi), cos(phi).

>

restart;

>

n:=6;

Please  input  number of examples "n"(1..7) and   Execute Section.

Theory

[vlad]: V.S.Vladimirov(ed.), Exercises book on Equations of Mathematical Physics,

 Nauka, Moscow, 1982, 16

 [pinsky]: Mark A.Pinsky, Partial Differential Equations and Boundary-Value Problems with Applications,                McGraw-Hill, Inc, 1991. ch. 3

Data of examples

a, R and g:

>	d||1:=0,8,3*cos(phi)^5+4*sin(phi)^3+2;    #a, R and g

>	d||2:=a,R,cos(phi)^4:

>	d||3:=-10,9,1;

>	d||4:=I,4,sin(phi)^3;

>	d||5:=2+3*I,5,6*cos(phi)^5;

>	d||6:=a,R,5*x^3+2*y^2;

>	d||7:=-3,10,randpoly([x,y]);

Solving problem

>	L:=linalg[laplacian](u(r,phi),[r,phi],coords=polar)+a*u(r,phi);

>	a:=d||n[1];R:=d||n[2];g:=d||n[3];

>	tr:={x=r*cos(phi),y=r*sin(phi)};

>

sprend := proc(g) local S; global L;     S := g*v(r);     subs(u(r, phi) = S, L);     simplify(%);     dsolve(%, {v(r)});     if not iscont(op(1, rhs(%)), r = -1 .. 1) then         subsop(1 = 0, rhs(%))     elif not iscont(op(2, rhs(%)), r = -1 .. 1) then         subsop(2 = 0, rhs(%))     end if;     S := %*g;     solve(subs(r = R, S) = g, {_C2, _C1});     S := subs(%, S);     RETURN(S) end proc:

>	subs(tr,r=R,g);

>	g1:=combine(%,trig);

Solution

>	linalg[laplacian](u(x,y),[x,y])+a*u(x,y)=0, ` if  r`<R;

>	u=g,`  if   r`=R;

>	sol:=map(sprend,g1);

Checking the Solution

>	subs(u(r,phi)=sol,L): simplify(%);

>	combine(simplify(subs(r=R,sol)-subs(tr,r=R,g)));

>	#combine(",trig);

5 Example

Problem

>

restart;

We solve  Dirichlet boundary-value problem for Poisson  Equation on a disk:

=f, r<R,

u| r=R =0

>	f:=randpoly([x,y]);

>

Procedure

>

nonh := proc(f) local de, tf;     if has(f, [sin, cos]) then         tf := select(has, f, [sin, cos])     else tf := 1     end if;     subs(u(r, phi) = v(r)*tf, linalg[laplacian](u(r, phi),         [r, phi], coords = polar) = f);     de := simplify(%/tf);     dsolve({de, v(R) = 0, v(0) < infinity}, v(r));     RETURN(subs(%, v(r)*tf)) end proc:

>

Solving problem

>

f;

>	tr:={x=r*cos(phi),y=r*sin(phi)};

>	subs(tr,f);

>	dp:=combine(%);

Solution:

>	sol:=map(nonh,dp):

>

Solution

Problem:

>	linalg[laplacian](u(x,y),[x,y])=f, ` if  r`<R;

>	u=0,`  if   r`=R;

Solution:

>	u(x,y)=sol;

>

Checking the Solution

>	combine(linalg[laplacian](sol,[r,phi],coords=polar)-subs(tr,f));

>	subs(r=R,sol);

>
