Plotting 6-Pole Spheres in Maple

by Jason Schattman, Waterloo Maple, Inc.

> with(plots):with(plottools):

The sphere command in Maple plots 2-pole spheres by drawing longitudinal great circles and latitudinal small circles. We show how to plot 6-pole spheres using great circles.

Here is the standard 2-pole sphere.

> mySphere := sphere([1,1,1], 3.3):

> display( mySphere, scaling=constrained, axes=none );

[Maple Plot]

To plot great circles exclusively, use the spacecurve command, which plots the curve given by the parametric functions [x(t), y(t), z(t)]. As a first example, we'll plot just one great circle at angle Pi/3.

> t := Pi / 3;

t := 1/3*Pi

> myGreatCircle := spacecurve( [cos(t)*cos(s), sin(t)*cos(s), sin(s)],
s=0..2*Pi, axes=normal, scaling=constrained, orientation=[30,60]):

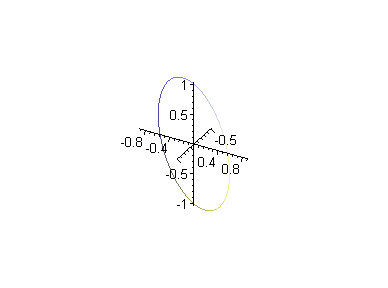

Click and drag the plot below to see it from different perspectives.

> display( myGreatCircle );

[Maple Plot]

To plot many great circles at once in six hemispheres, it's best to define a procedure that takes as input the number of circles we want. In this procedure, we'll define three arrays of great circles, one for circles about the x-, y- and z-axis respectively. Within each array, each circle will lie at a different angle about its axis.

For generality, we'll actually plot great ellipses with major and minor axis lengths r1 and r2.

> GreatCircles := proc( numCircles, r1, r2, colorZ, colorX, colorY, orientation1, orientation2 )
local t, k, s, zCircles, xCircles, yCircles;

for k from 1 to numCircles do
t := 2*Pi*k / numCircles;

zCircles[k] := spacecurve([r1*cos(t)*cos(s), r1*sin(t)*cos(s), r2*sin(s)],
s=0..2*Pi,axes=none, scaling=constrained,

xCircles[k] := spacecurve([r2*sin(s), r1*sin(t)*cos(s), r1*cos(t)*cos(s)],
s=0..2*Pi,axes=none, scaling=constrained,

yCircles[k] := spacecurve([r1*cos(t)*cos(s), r2*sin(s), r1*sin(t)*cos(s)],
s=0..2*Pi,axes=none, scaling=constrained,

end do:

display( {seq(zCircles[k], k=1..numCircles),
seq(xCircles[k], k=1..numCircles),
seq(yCircles[k], k=1..numCircles)},
insequence=false, orientation=[orientation1,orientation2] );
end proc:

Notice the six poles, one for each dimension.

> GreatCircles( 30, 1, 1, red, blue, black, 30, 60 );

[Maple Plot]

With elongated axes.

> GreatCircles( 30, 1, 1.5, red, blue, black, 45, -30 );

[Maple Plot]

Let's get artistic.

> GreatCircles( 43, 1, 1.2, gold, red, yellow, 135,-180 );

[Maple Plot]
