Pole Locations & Performance Characteristics

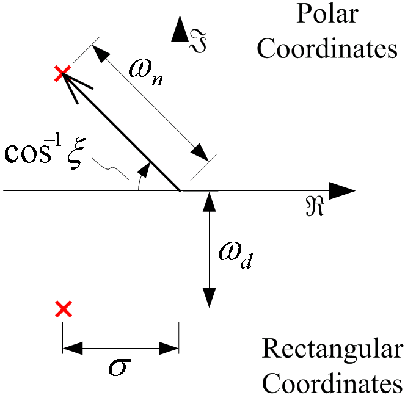

The location of a pole in the s-plane can be mapped out in either rectangular coordinates (x+I*y), or polar coordinates r*exp(I*theta).  The figure below show graphically how the position of a pole (or zero) is typically labeled:



NULL

The behaviour of a system is determined by the position of the poles and zeros.

Second Order System


Consider the standard second order system

tf := omega[n]^2/(s^2+2*xi*omega[n]*s+omega[n]^2)

omega[n]^2/(s^2+2*xi*omega[n]*s+omega[n]^2)

 (1.1)

The roots of the system can be written using the polar elements as

s = -xi*omega[n]+`&+-`(I*omega[n]*sqrt(1-xi^2)) and -xi*omega[n]+`&+-`(I*omega[n]*sqrt(1-xi^2)) = omega[n]*exp(arctan(`&+-`(sqrt(1-xi^2)/xi)))

or the rectangular elements as

s = -sigma+`&+-`(I*omega[d])

We can transition between the two sets of variables using the pair of equations:

realEqn := sigma = xi*omega[n]

sigma = xi*omega[n]

 (1.2)

dampedFreqEqn := omega[d] = omega[n]*sqrt(1-xi^2)

omega[d] = omega[n]*(1-xi^2)^(1/2)

 (1.3)

Time Domain Specifications


There are several specifications that are of interest to the controls engineer.

peakEqn := t[p] = Pi/omega[d]

t[p] = Pi/omega[d]

 (2.1)

overshootEqn := M[p] = exp(-Pi*xi/sqrt(1-xi^2))

M[p] = exp(-Pi*xi/(1-xi^2)^(1/2))

 (2.2)

settlingEqn := t[s] = 4.6/sigma

t[s] = 4.6/sigma

 (2.3)

riseEqn := t[r] = 1.8/omega[n]

t[r] = 1.8/omega[n]

 (2.4)

``NULL

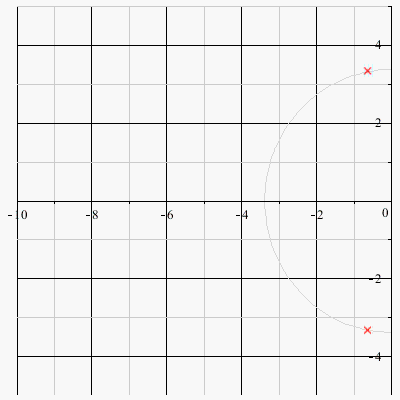

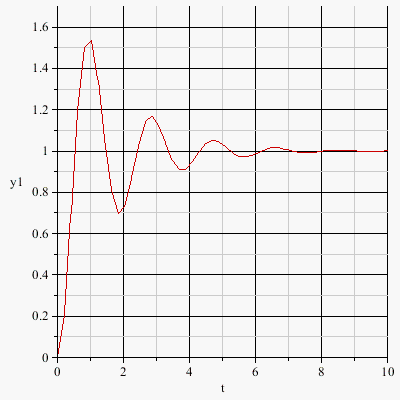

Complex Plane and Time Domain Response


``

``

NULL

``

sigma =   omega[d] =

Zeta =   omega[n] =



NULL

Rectangular Performance Specs

Polar Performance Specs

Settling Time t[s](sigma)

``

Rise Time t[r](omega[n])

``

Time to Peak t[p](omega[d])

``

Overshoot M[p](Zeta)

``


NULL

``
