Cross-Section of Metallic Steel Tape for Earthing of 110/30 kV Substation: Interactive Application

Author
: Maplesoft AuthorSamir Khan
Engineering software solutions from Maplesoft
This Application runs in Maple. Don't have Maple? No problem!
 Try Maple free for 15 days!

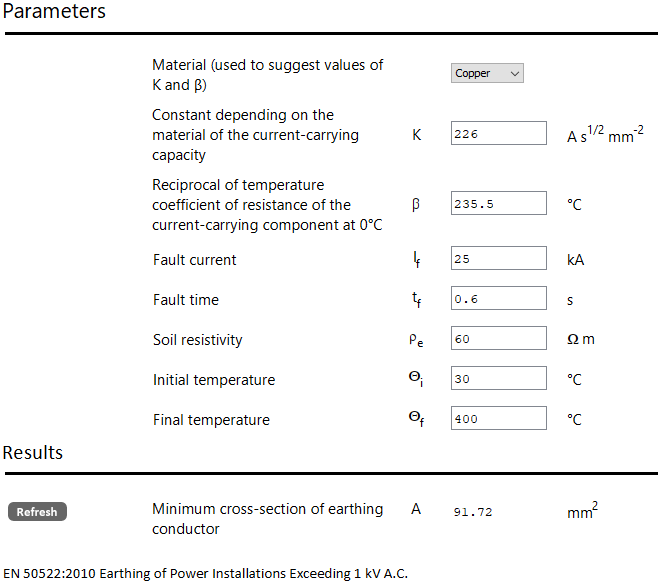

This interactive tool helps electrical power systems engineer calculate the cross-sectional area of metallic tape needed to adequately earth a substation.

The equations and parameters are correct to EN 50522:2010 (Earthing of Power Installations Exceeding 1 kV A.C.)

Application Details

Publish Date: February 17, 2021
Created In: Maple 2020
Language: English
