Maple offers signal processing tools for analyzing and manipulating data in the frequency and time domains. It can be used for diverse applications such as creating a speech spectrogram, removing noise from polluted signals, and identifying the periodicity of data.

This package includes tools for:

  • Cosine, fast Fourier and wavelet transforms
  • Bartlett, Blackman, Blackmann-Nuttall, Bohman, Kaiser, Hann, and Hanning windows
  • Signal generation
  • Cross-correlation, autocorrelation, data statistics, and upsampling/downsampling
  • FIR, IIR, and Butterworth filters



Signal Processing Examples

Spectrogram, Power Spectrum and Signal Plots

Imaging a Speech Spectrogram

This is a spectrogram, power spectrum and signal plot of a male voice saying MapleSim, recorded at 11 kHz.

> maplesim := FileTools:-JoinPath([ kernelopts(datadir), "signalprocessing", "maplesim.wav" ]):
> Spectrogram(maplesim, colorscheme = ["zgradient", [white, LightSteelBlue, black], markers = [0, .5, 1]], fftsize = 256, includesignal, includepowerspectrum);

Plot_2d
Plot_2d
Plot_2d







Spectrogram of a Violin Note

This is a spectrogram of a violin note played with vibrato, together with the power spectrum and signal plot. Note that the frequency oscillations are at 7 kHz and above,  which is typical of vibrato.

> filename := FileTools:-JoinPath([ kernelopts(datadir), "signalprocessing", "ViolinThreePosVibrato.wav" ]):
> vibrato := AudioTools:-Read(filename):
> Spectrogram(vibrato, colorscheme = ["zgradient", [white, LightBlue, red, black], markers = [0, .5, .75, 1]], channel = 1, fftsize = 2^10, includepowerspectrum, includesignal);

Plot_2d
Plot_2d
Plot_2d







Filtering Signals

> filename2 := FileTools:-JoinPath([ kernelopts(datadir), "signalprocessing", "MapleSimMono11025.wav" ]):
> originalSpeech := AudioTools:-Read(filename2):


Plot waveform and power spectrum:


> commonPlotOpts2 := labeldirections = [horizontal, vertical], axis = [gridlines = [color = "SteelBlue"]]:
> samplingRate := attributes(originalSpeech)[1];
11025 (1)
> duration := evalf(AudioTools:-Duration(originalSpeech));
4.504671202 (2)
> p1 := plots:-listplot([seq([i/samplingRate, originalSpeech[i]], i = 1 .. numelems(originalSpeech))], thickness = 0, gridlines, axes = boxed, title = "Original Speech", labels = ["Time (s)", Waveform], commonPlotOpts2):
> plots:-display(p1);
Plot_2d

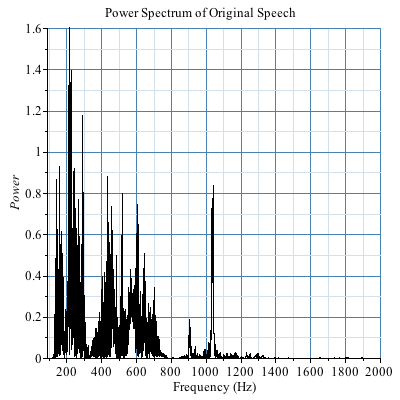

> fq := FFT(originalSpeech[1 .. 2^15]):
> psq := PowerSpectrum(fq):
> ps1 := plots:-pointplot([seq([i*samplingRate/2^15, psq[i]], i = 1 .. (1/2)*2^15)], thickness = 0, color = black, gridlines, connect = true, title = "Power Spectrum of Original Speech", labels = ["Frequency (Hz)", Power], view = [100 .. 2000, 0 .. 1.6], axis[1] = [mode = log], commonPlotOpts2):
> plots:-display(ps1);
Plot_2d






Apply IIR Butterworth or Chebyshev Filter:

> fc := 800:
> taps := GenerateButterworthTaps(9, fc/samplingRate, 'filtertype' = 'lowpass', 'normalize' = true):
> filteredSpeech := InfiniteImpulseResponseFilter(originalSpeech, taps):


View before and after power spectrum and waveform:


> FFTfilteredSpeech := FFT(filteredSpeech[1 .. 2^15]):
> PSfilteredSpeech := PowerSpectrum(FFTfilteredSpeech):
> ps2 := plots:-pointplot([seq([i*samplingRate/2^15, PSfilteredSpeech[i]], i = 1 .. (1/2)*2^15)], thickness = 0, color = black, gridlines, connect = true, title = "Power Spectrum of Filtered Speech", labels = ["Frequency (Hz)", Power], view = [100 .. 2000, 0 .. 1.6], axis[1] = [mode = log], commonPlotOpts2):
> plots:-display(Array(<<ps1, ps2>>));

Plot_2d
Plot_2d

> p2 := plots:-listplot([seq([i/samplingRate, filteredSpeech[i]], i = 1 .. numelems(originalSpeech))], thickness = 0, gridlines, axes = boxed, color = black, title = "Filtered Speech", labels = ["Time (s)", Waveform], commonPlotOpts2):
> plots:-display(Array(<<p1, p2>>), view = [0 .. duration, -1 .. 1]);

Plot_2d
Plot_2d





Apply FIR filter

> flow := 200:
> fhigh := 700:
> taps := GenerateFiniteImpulseResponseFilterTaps(50, [flow/samplingRate, fhigh/samplingRate], filtertype = bandpass):
> filteredSpeech := FiniteImpulseResponseFilter(originalSpeech, taps):


View before and after power spectrum and waveform:


> FFTfilteredSpeech := FFT(filteredSpeech[1 .. 2^15]):
> PSfilteredSpeech := PowerSpectrum(FFTfilteredSpeech):
> ps2 := plots:-pointplot([seq([i*samplingRate/2^15, PSfilteredSpeech[i]], i = 1 .. (1/2)*2^15)], thickness = 0, color = black, gridlines, connect = true, title = "Power Spectrum of Filtered Speech", labels = ["Frequency (Hz)", Power], view = [100 .. 2000, 0 .. 1.6], axis[1] = [mode = log], commonPlotOpts2):
> plots:-display(Array(<<ps1, ps2>>));

Plot_2d
Plot_2d

> p2 := plots:-listplot([seq([i/samplingRate, filteredSpeech[i]], i = 1 .. numelems(originalSpeech))], thickness = 0, gridlines, axes = boxed, color = black, title = "Filtered Speech", labels = ["Time (s)", Waveform], commonPlotOpts2):
> plots:-display(Array(<<p1, p2>>), view = [0 .. duration, -1 .. 1]);


Plot_2d
Plot_2d





Windowing Functions

Windowing functions can also be applied to each window of data used to generate an FFT.

> freq := 5:
> N := 2^8:
> samplingRate := 50:
> data := Vector(N, proc (i) options operator, arrow; sin(2*evalf(Pi)*freq*i/samplingRate)+(1/1000000000000)*rand() end proc, datatype = float[8]):


Apply a Blackman Nuttall Window:


> dataWindow := BlackmanNuttallWindow(data):
> Spectrogram(dataWindow, samplerate = samplingRate, includepowerspectrum, includesignal, fftsize = 128, colorscheme = ["zgradient", [SteelBlue, PaleGreen, red, Black], markers = [0, .5, .8, 1]]);

Plot_2d
Plot_2d
Plot_2d





Visualizations using Explore

It is possible to create interactive applications that use commands from the SignalProcessing package using the Explore command. To see another example of using Explore to create For more examples, see the Filtering Frequency Domain Noise application. The following example dynamically illustrates the effects of a filter parameter value on the resulting modified signal.

Generate a known signal:

> A := SignalProcessing:-GenerateJaehne( 512, 4095 ):
> PA := plots:-listplot( A, 'title' = "Original Signal" ):

Next, construct a reusable container Array C in order to improve performance of the exploration process by leveraging the in-place computational semantics of the InfiniteImpulseResponseFilter command.

  Embedded component



 Play

Embedded componentloop



frequencyEmbedded component

0.050

filterEmbedded component



Embedded component
