Tension control strategies for roll-to-roll-processes

This model shows a roll-to-roll-process beginning with a unwind drum, driven by a nip roller and ending with a rewind drum. It demonstrates the capability of the web handling library to test and compare different control strategies. The driven nip roller is controlled by a speed controller. The drums are controlled by a tension controller. The tension is measured on the web span before. This is a simplified way to test controller strategies. The model can be extended with using load cells as measuring units if it is necessary.

This model compares a gain scheduling controller for the tension control with a constant controller. The gain scheduling regards the current radius of the drums. For this purpose the ratio between the current radius and the core radius is calculated. Turn off the boolean constant BC to compare the gain scheduling controller with a constant controller. For that unselect the check box next to parameter 'k'.

This model was created with MapleSim 2023.0
This model uses the MapleSim Web Handling Library

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Tension control strategies for roll-to-roll-processes

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • Model structure Model structure of a web handling model

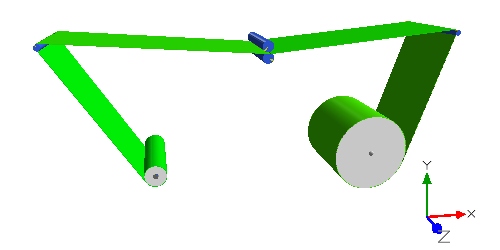

  • 3DView 3D View of the Web Handling Machine
  • Results Relative Drum Radius during the simulation
  • Results 2 Simulation results with a Gain Scheduling Controller
  • Results 3 Simulation results with a controller with constant parameter
