Robotic Hand Model

In this model, Multibody components are used to model a dextrous hand. Each finger has there actuated degrees of freedom (except for the thumb which has only two). The 6 DOFs of the hand are also actuated (translational/angular position drivers). The model includes contact between a sphere and various parts of the hand. For contact modeling, the Palm is modeled as a box and the fingers are made of two or three cylindrical sections.
This model was created with MapleSim 2020.1
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Robotic Hand Model
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

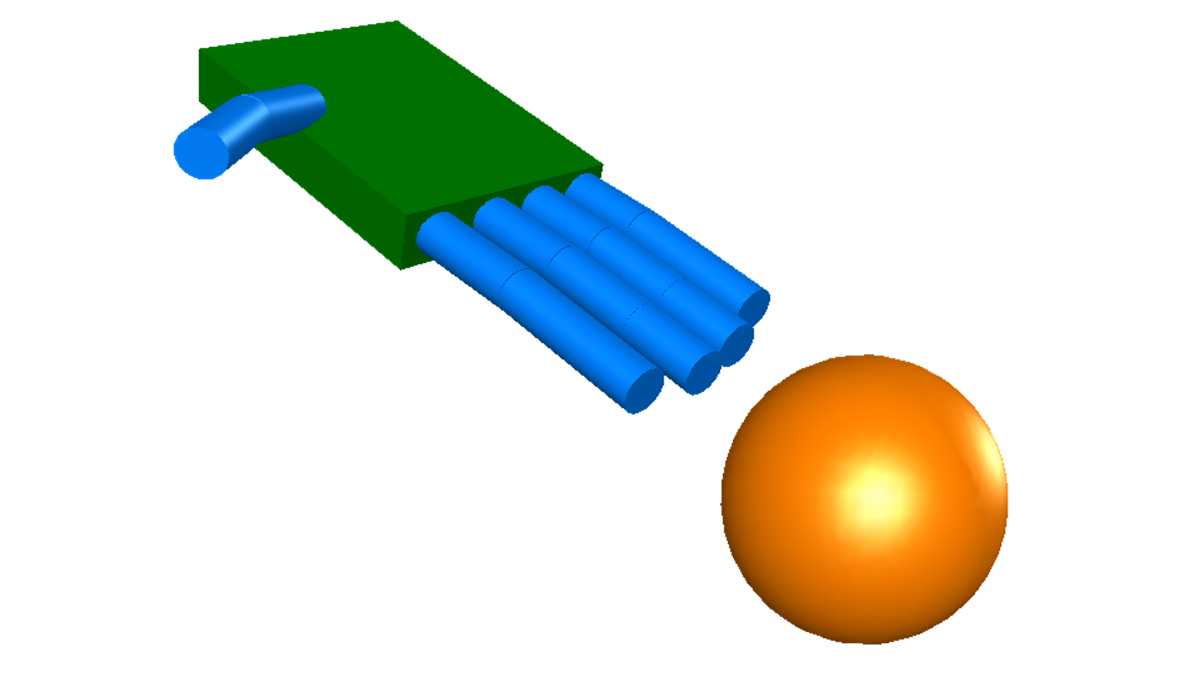

  • img_3d 3D visualization of the results

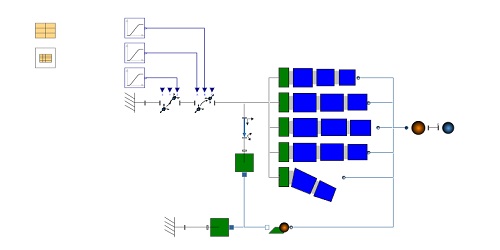

  • img_model MapleSim model of robotic hand
