Grizzly RUV Model

This MapleSim model represents the Robotic Utility Vehicle (RUV) called Grizzly from Waterloo-based company, Clearpath Robotics. The model parameters are taken from the technical specs of the robot and can be found at Clearpath Robotics.

The model features a 200 Ah lead-acid battery pack with a nominal voltage of 48 V to provide electrical power to move the vehicle on an uneven terrain. The interaction forces and moments at the tire-terrain contact points are generated based on the Fiala tire model. A 3D mathematical expression is used to describe the terrain surface to allow the tire-terrain contact points to be calculated based on the position of the vehicle. This 3D function is also used to generate the STL graphics of the terrain for animation.

The model outputs electric motor torques, speeds, and battery state of charge.

For more information about the creation of this model, read the Clearpath Robotics blog post.

This model includes a Maple worksheet for analysis
Close

This model is not available for immediate download

However, we will be happy to show it to you in a live demonstration.

Contact us today to help you learn:

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Grizzly RUV Model
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

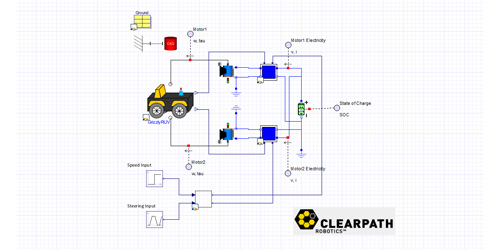

  • model Model schematic of the system

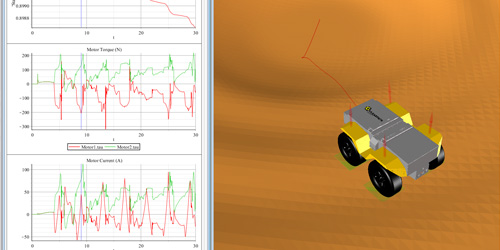

  • results Simulation results

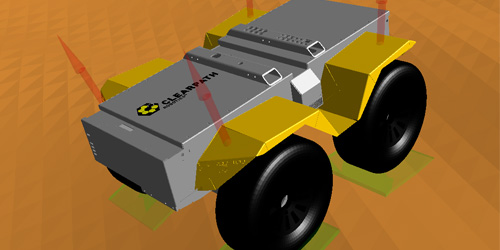

  • 3d Visualization of the results
