Hexapod

Home : Products : MapleSim : Model Gallery : Hexapod

This model uses multibody components to simulate the walking motion of a hexapod robot. Leg actuation is provided with trapezoidal signals. Normal forces, friction, and deflections are calculated for each "foot" of the hexapod.

A 3-D visualization demonstrates the prescribed walking motion.

Download this model

Category:
Robotics

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

How this model works and how it was developed
How this model can be modified to fit your requirements
How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

If you have MapleSim, download the model here:

Download the Model Request an S-function

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Hexapod
First Name: Last Name: Company: Title: Industry:

Commercial Academic Government

Country: State/Prov: E-mail Address: Comments or Instructions:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window

Oops! There was a problem. Try again later Close Window

Model Images

Multibody models can be quickly created using MapleSim's physical modeling techniques, such as with the hexapod creation.

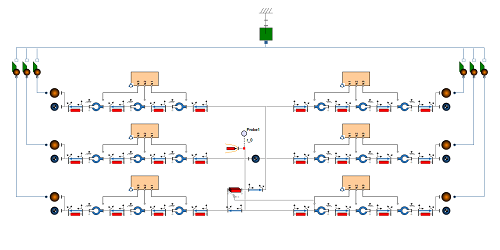

Model diagram of the hexapod robot
