Hydraulic Clamp

This is a model of a hydraulic clamp, designed in SolidWorks, and imported to MapleSim using the MapleSim CAD Toolbox. Within MapleSim, joints and multibody components are easily added to the coordinates of the system. The hydraulic circuit, in addition to the electric motor, extract and retract the piston/cylinder mechanism, resulting in the clamp opening and closing.
This model uses the MapleSim CAD Toolbox
This model uses the MapleSim Hydraulics Library from Modelon

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Hydraulic Clamp

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • model The model schematic of the system

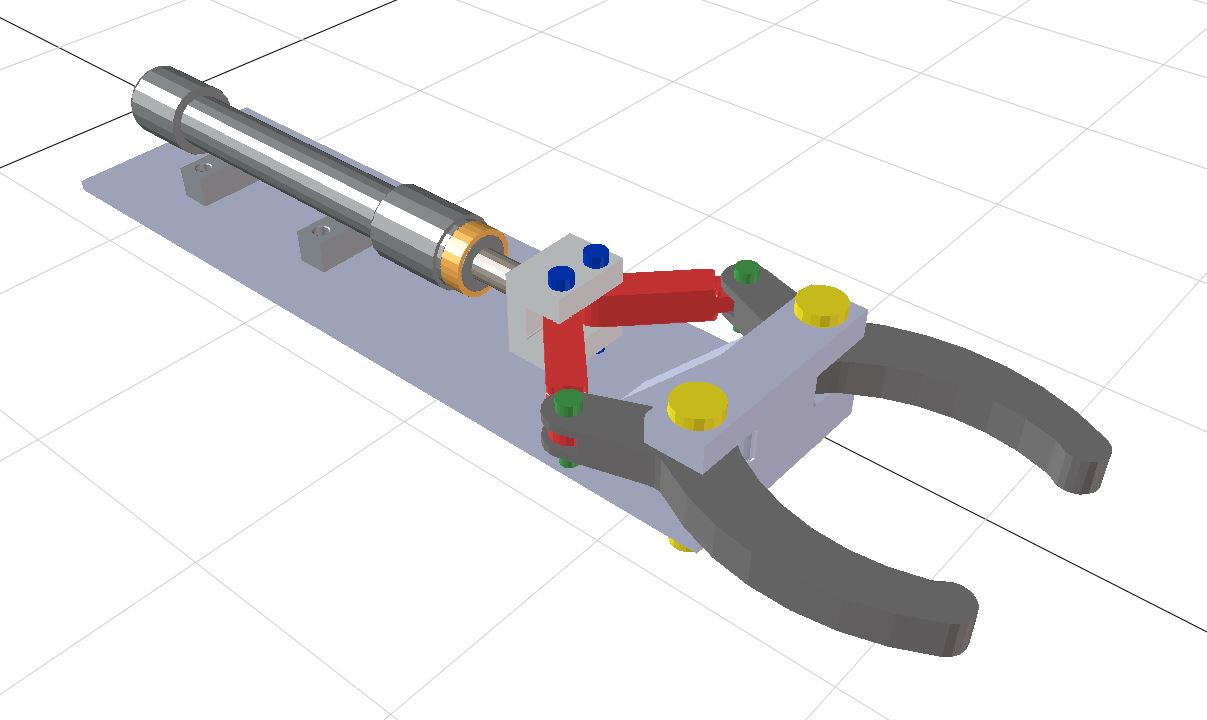

  • 3d Visualization of the simulation results
