4-Bar Linkage Gripper

A model of a 2 DOF gripper, which utilizes two pairs of 4-bar linkage mechanisms, is built using the MapleSim CAD Toolbox to import the CAD assembly created in SolidWorks. This gripper is driven by rotational and translational position drivers from the 1-D Motion Generation app.
This model uses the MapleSim CAD Toolbox
This model was created with MapleSim 2020.1

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: 4-Bar Linkage Gripper

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • img_model The model schematic of the system

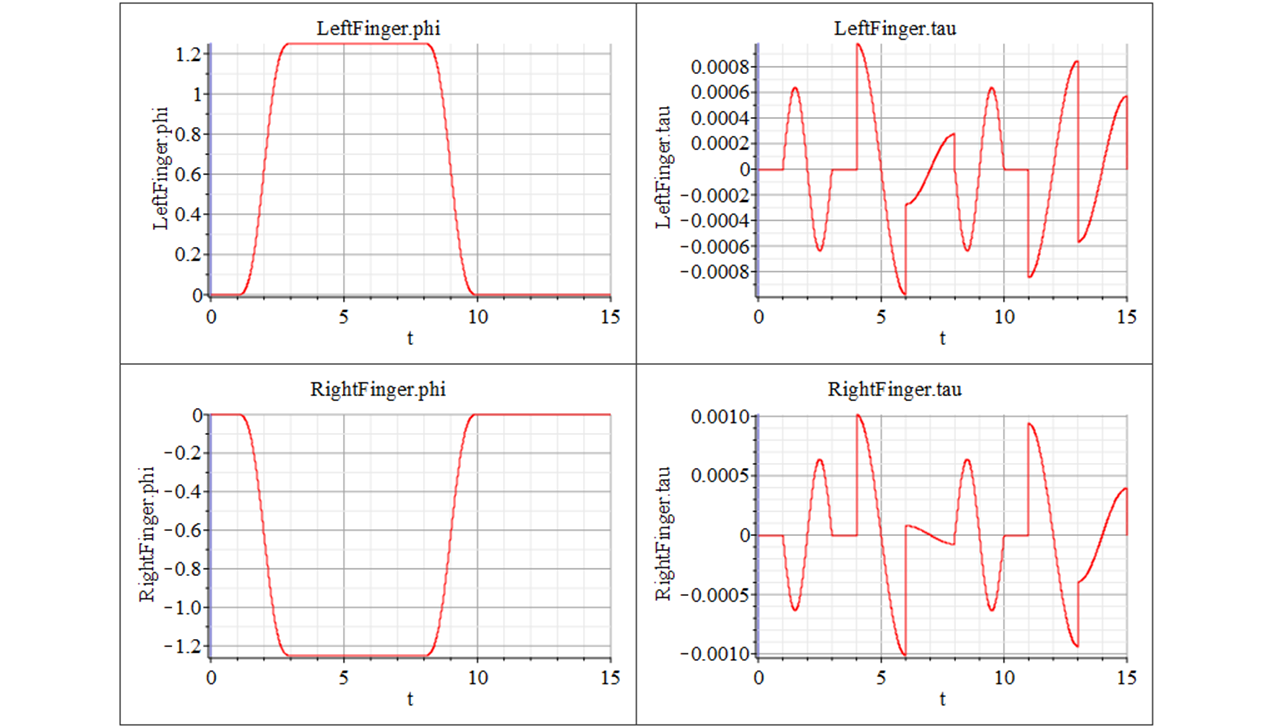

  • img_results Simulation results for rotational angle and torque
