Torus Model

About this model: This is a model of a torus contact with a flat surface. The contact forces include friction. The calculation of contact forces and moments is done within a Modelica custom component (Project>Definitions>Components). Model assumes the ground is the z = 0 plane, and the local x-axis is the axis of the torus.

To create an stl file of a torus with radii (R and r) other the one used in the model, use the attached Maple worksheet (Project>Attachments>Documents).


Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Torus Model

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

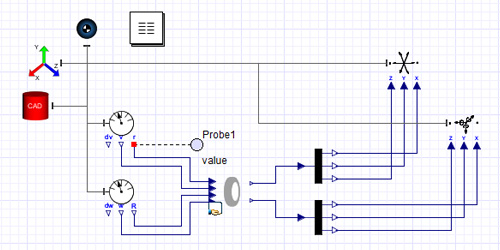

  • model image Model schematic of the system
  • results image Simulation results

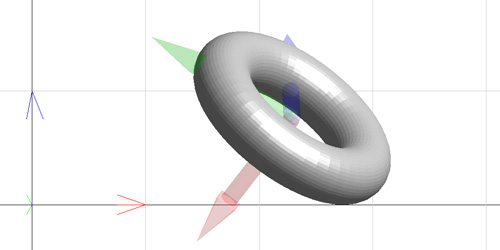

  • 3d Visualization of the simulation results
