Bicycle with Balancing Controller, Uneven Terrain

This is the model of an unmanned bicycle with a stability controller. The control torque is applied on the handlebar using the a gyroscopic sensory information which detects the bicycle's inclination from the upright position based on its roll angle.

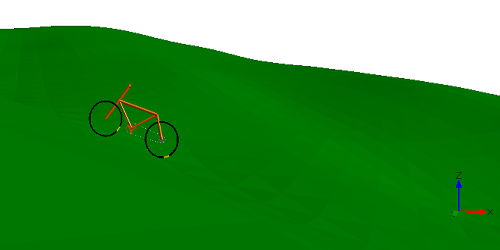

The bicycle in this example travels through 3-D uneven terrain. The tire/ground interaction forces are calculated using the Fiala tire force model.

Close

This model is not available for immediate download

However, we will be happy to show it to you in a live demonstration.

Contact us today to help you learn:

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Bicycle with Balancing Controller, Uneven Terrain
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

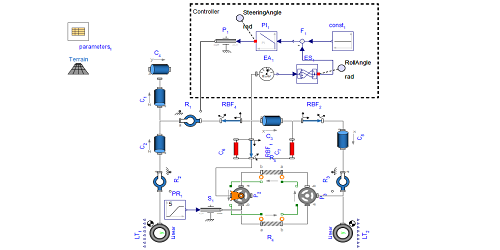

  • bicycle_uneven1 The top-level model view, with icons to represent the individual subsystems.
