Planar Slider-Crank Mechanism

As shown in the figure, the crank has a mass m1 (and length L1), while the connecting rod has a mass m2 (and length L2). Gravity in the -Y direction is included, as is the force F acting on the piston. The equations will be generated in the 3 joint coordinates [θ, ß, s]. Since the system has only 1 degree of freedom, 2 algebraic constraint equations will be generated for these 3 coordinates, in addition to the 3 dynamic equations.

This model includes a Maple worksheet for analysis.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Planar Slider-Crank Mechanism
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • PlanarSliderCrank Physical models are created to look visually similar to the actual system, thus speeding up modeling time and reducing mistakes.

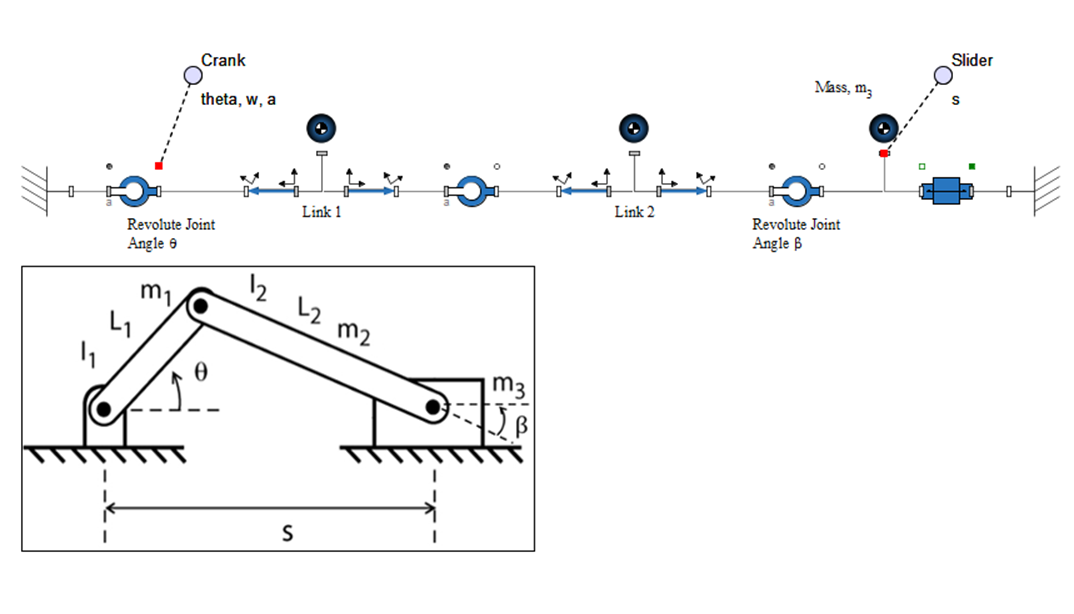

  • Model Model diagram showing the slider-crank and free body diagram

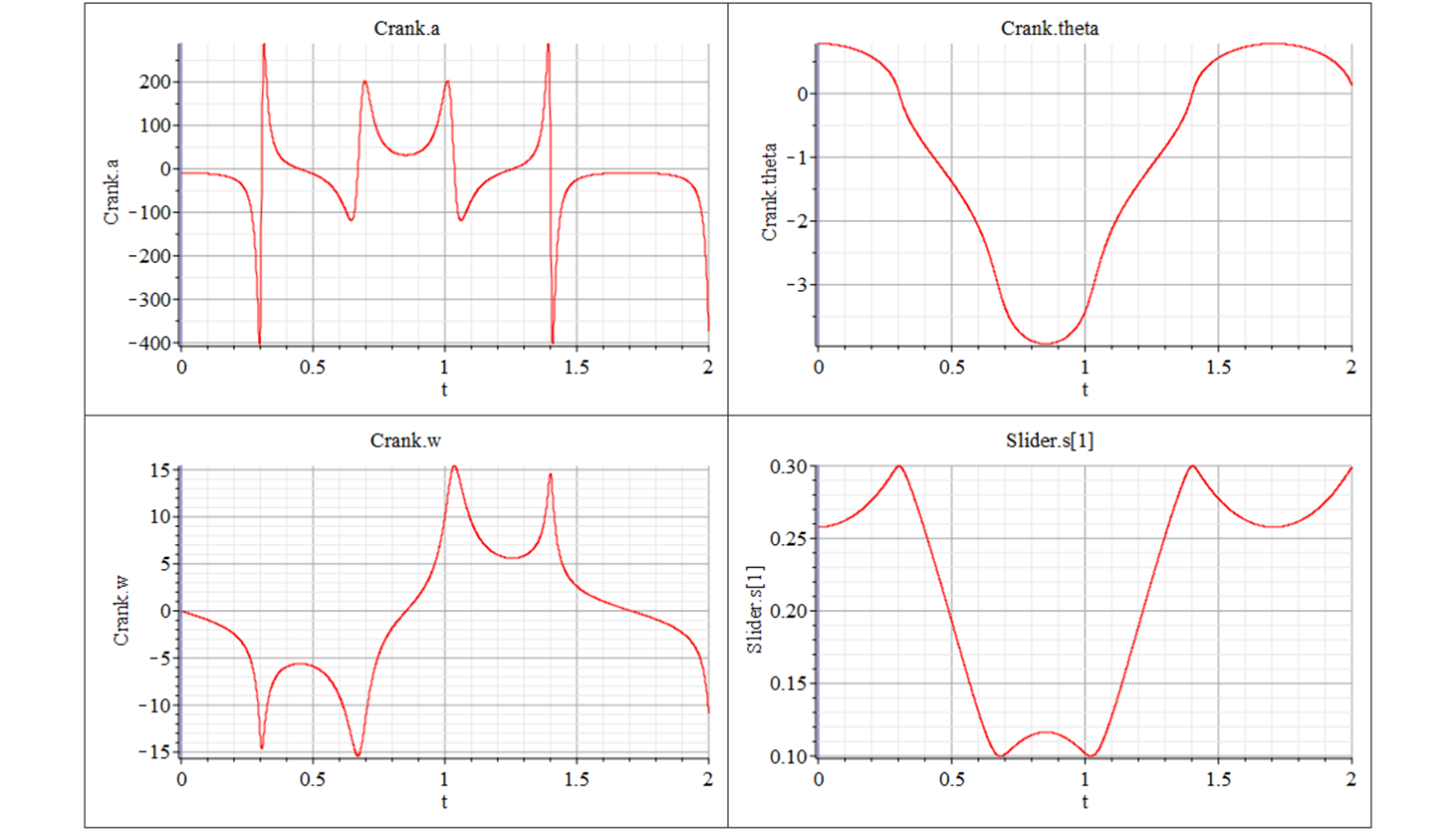

  • plots Simulation results showing displacement, angle, speed, and acceleration of the slider-crank
