Kite Model

This model represents a kite attached to a spinning base with a cable / rope. The model of the rope is based on a particle model which consists of a chain of discrete elements, defined as point-masses and spring-and-damper blocks. This allows the mass and elasticity properties of the cable material to be defined for each rope segment. To maintain the altitude of the kite, a PID controller is used to calculate the necessary lift force.

Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Kite Model
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

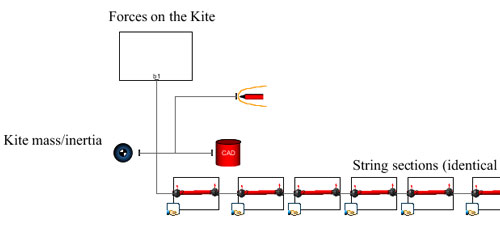

  • model Model diagram of the kite with discretized string model

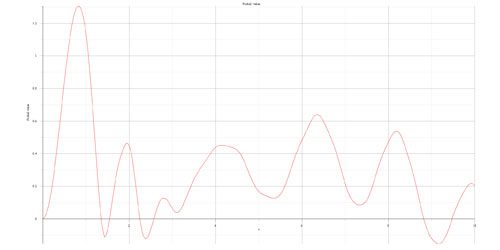

  • Results Simulation results showing the position of the kite
