Equation Generation: Heat transfer

In this example, a room with all but two sides are insulated.  The room has an initial temperature of 300K and the ambient temperature is 200K. The system will reach equilibrium of 50°C. The differential equations that determine the temperature in the room is in attachment.

This model includes a Maple worksheet for analysis.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Equation Generation: Heat transfer
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

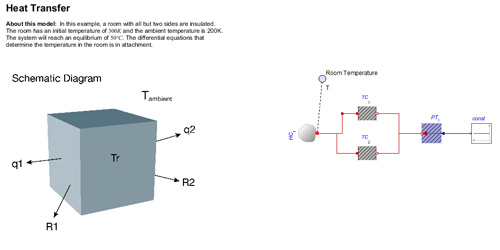

  • model Model diagram and schematic of the room

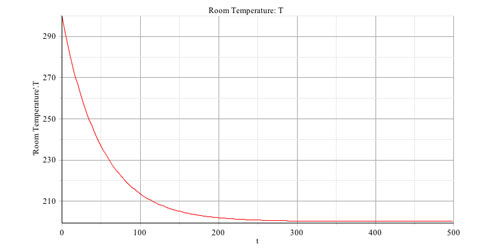

  • plot Simulation results

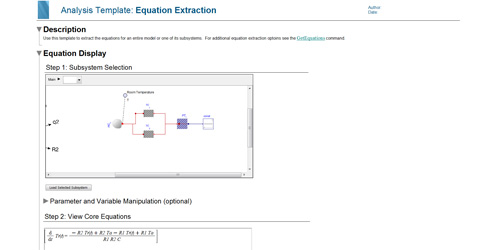

  • equations Equations extracted using the Maple equation extraction template
