Heat Conduction along a Bar

This application solves the Heat Equation in one dimension with a discretized lumped parameter network for a bar heated at one end. The bar has a length of 1, and each segment has a length of 1/nLayers, where nLayers is the number of segments. Each segment contains a thermal conductor (of thermal conductance K=α•nLayers where α is the thermal diffusivity in the Heat Equation) and a lumped mass (of heat capacity C = 1/nLayers). The temperature can be probed at various points along the bar. Heat sources can be placed at various points along the bar if desired. The principles in this model can be extended to more spatial dimensions.

Attachments:
1) Attached to this model is a Maple worksheet that solves the problem mathematically.
The results agree with those given by MapleSim.
2) The second worksheet simulates the temperature variation along the bar, and represents the temperature gradient.

This model includes a Maple worksheet for analysis.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Heat Conduction along a Bar
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • model Model schematic of the system

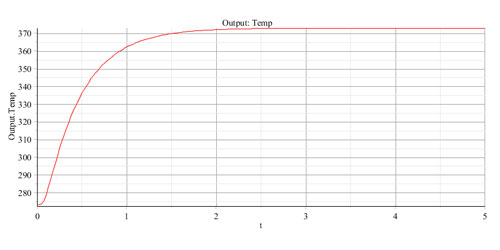

  • results Simulation results
