Excavator Model with Modelon Hydraulics

This is a model of an excavator which was created using a combination of MapleSim's Multibody library and Modelon's Hydraulic library. The movement and functions of the hydraulic excavator are accomplished through the use of differential cylinders which are used to convert hydraulic flow into translational motion. Input signals are given to the directional valve of each hydraulic circuit to signal an extension or retraction motion.   In the case of an excavator, a runaway load situation can occur when the directional valve shifts to retract or extend a hydraulic cylinder and the weight of the load forces the actuator to move faster than the pump flow. A counterbalance valve was added to the hydraulic circuits to control this runaway load.
This model uses the MapleSim Hydraulics Library from Modelon.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Excavator Model with Modelon Hydraulics
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • model Model schematic of the system

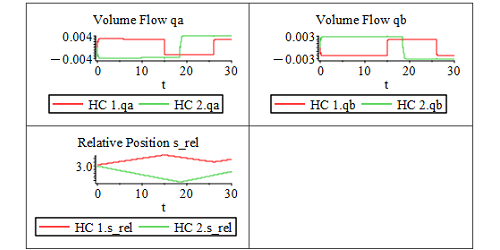

  • results Simulation results

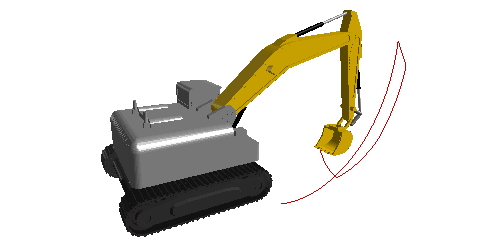

  • 3d Visualization of the simulation result
