Ideal Y-Y Three-Phase Rectifier

This is an ideal Y-Y connected three-phase rectifier. The primary and secondary sides of the transformer are both Y-connected with the star connector to establish ground. The three phases are then sent into the Universal Bridge subsystem, which consists of ideal diodes that perform full-wave rectification of the three phases. The load consists of a resistor and a capacitor. The capacitor filters the ripple present on V+ to provide the resistive load with a more stable voltage.

Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Ideal Y-Y Three-Phase Rectifier
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

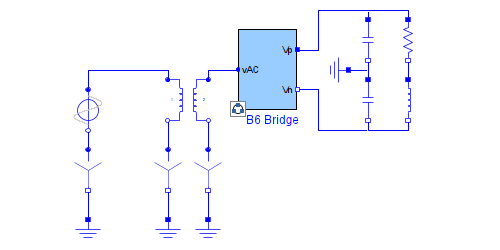

  • model image Schematic of the system

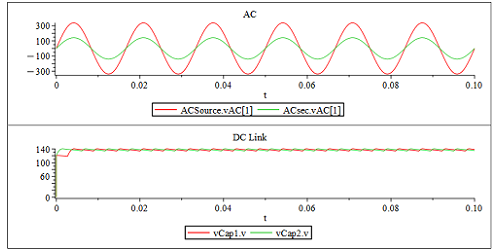

  • results 1 Simulation results
  • results 2 Simulation results
