Component Types View

The Component Types view of the Model Tree displays the components and subsystems in your model in a hierarchical tree view organized by type.

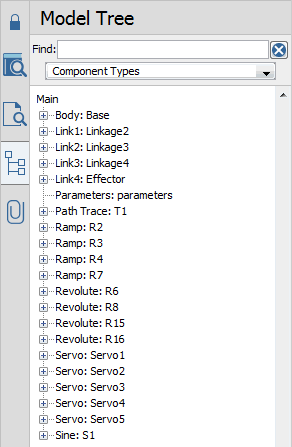

Select Component Types from the list below the Find text box to enter Component Types view. Component and subsystem nodes have entries of the form Component Type : Name, where:


Component Type is the type of component or subsystem (for example, Resistor or Revolute).


Name is the name of the component or subsystem.

To search for a component or subsystem by type:


From the Palettes Pane, select the Model Tree tab ( ).


Select Component Types from the views list.


Enter a search term in the Find text box.

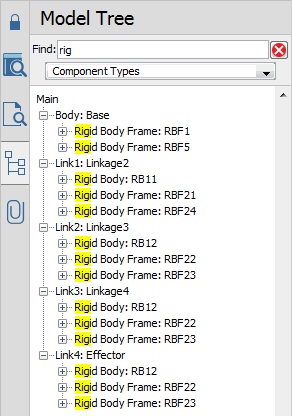

The model tree automatically updates to show the component and subsystem types that contain your search term. Matches are highlighted in yellow.




Note: In Component Types view, Find searches only the component type. To search for a component by its name, use the Components View.
