Double Wishbone Suspension

The kinematics of a double-wishbone suspension is modeled using multibody components in MapleSim. The user can change the geometry, and hence the kinematic behavior, of the mechanism by editing the hard-point coordinates in the model.


Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today

If you have MapleSim, download the model here:

Download the Model


Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.

Model: Double Wishbone Suspension

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • DoubleWishboneSuspension Simulation results can be analyzed further using one of many built in templates in MapleSim, or by using a custom template, as in this model.

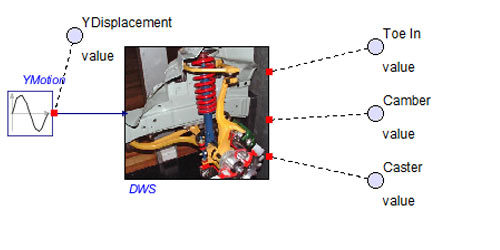

  • model Top level diagram of double wishbone suspension

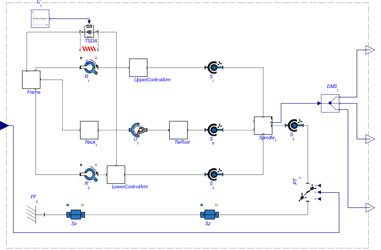

  • subsystem Detailed subsystem diagram of double wishbone suspension
