Kinematic Analysis of a Quick Return Device
Kinematic Analysis of a Quick Return Device
Author
:
Samir Khan
0
Download
PDF Preview
This Application runs in Maple.
Don't have Maple? No problem!
Try Maple free for 15 days!

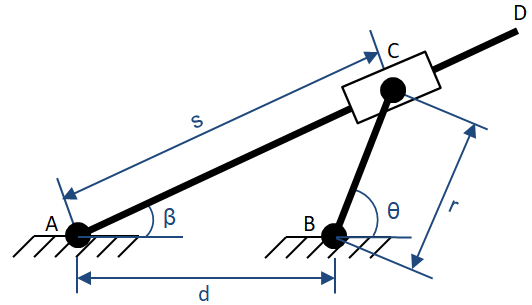

This is a quick return device.
This application will:
determine the range of motion of this device
and its behavior if the crank driven at (i) a constant angular velocity, and (ii) a constant angular acceleration
The latter involves numerically solving differential equations. These are symbolically derived by differentiating the geometric relationships with respect to time. The resulting equations contain the first and second derivative of the crank angle with respect to time; these will be set to constant values to reveal the behavior of the system.
