matrixplot



3-D plot with z values determined by a matrix



Calling Sequence

Parameters

Description

Examples

Calling Sequence

matrixplot(A, options)

Parameters

A

-

Matrix

options

-

see plot3d[option]

Description

•

The matrixplot function defines a three-dimensional graph where the x and y coordinates represent the row and column indices of A, respectively. The z values are the corresponding entries of A.

•

The remaining arguments are options specified as equations of the form option = value.  For example:



heights=histogram



The plot is drawn in the form of a three-dimensional histogram.



gap=r



The value of r is a real number between 0 and 1.



color=F



The color of the plot is given by F,  where F is a color specification as described in the plot/color help page. F can also be a two-argument procedure returning a single real value to be interpreted as a hue rather than RGB value.



Other options include most of those found with plot3d. These include axes, view, title, labels, style, projection, and orientation.  See plot3d/option.

•

The result of a call to matrixplot is a PLOT3D structure which can be rendered by the plotting device. The user may assign a PLOT3D value to a variable, save it in a file, then read it back in for redisplay.  See plot3d[structure] for more information.

Examples

withplots:

withLinearAlgebra:

AHilbertMatrix8:BToeplitzMatrix1,2,3,4,4,3,2,1,symmetric:

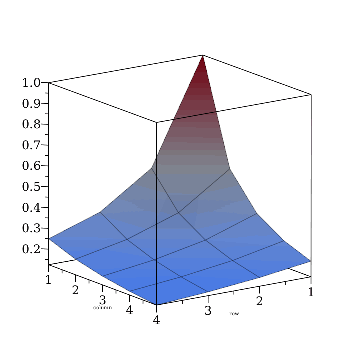

matrixplotA.B

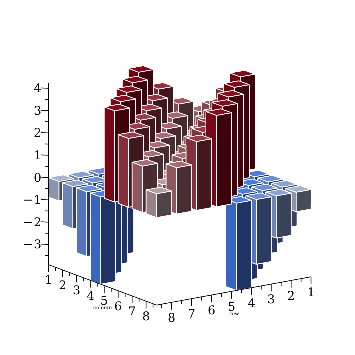

matrixplotA+B,heights=histogram,axes=boxed

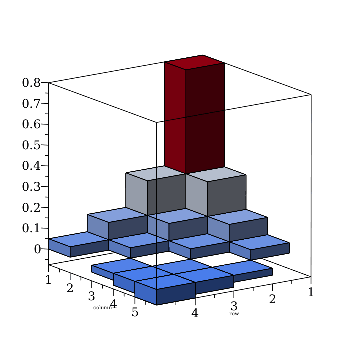

matrixplotA+B,heights=histogram,axes=frame,gap=0.25

Fx,y→sinxy:

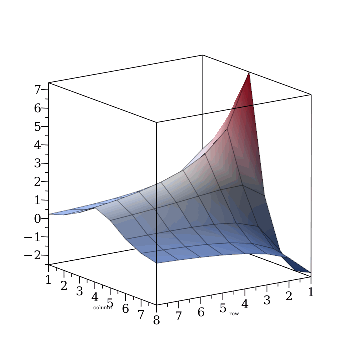

matrixplotA+B,heights=histogram,axes=frame,gap=0.25,color=F

LHilbertMatrix4,5

L:=112131415121314151613141516171415161718

(1)

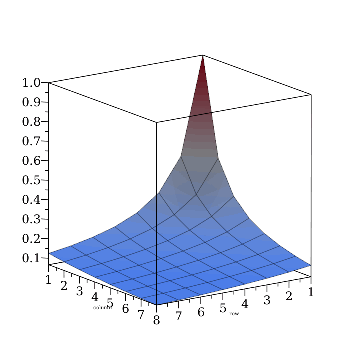

matrixplotL

YMatrix20,3,i,j→evalf1+sinijπ,datatype=float[8]:

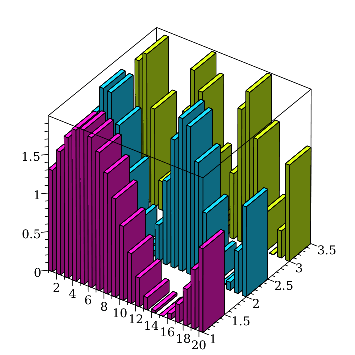

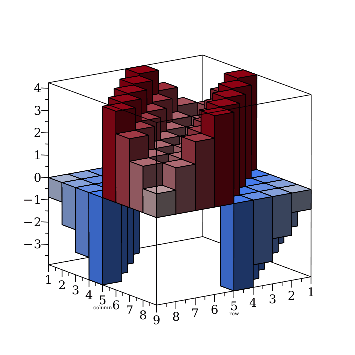

plots:-matrixplotY,heights=histogram,gap=0.5,color=x,y→1y3+0.2,orientation=55,55,0,labels=,,

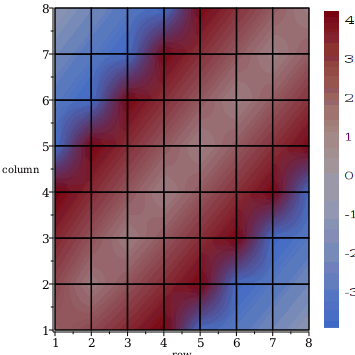

The command to create the plot from the Plotting Guide is

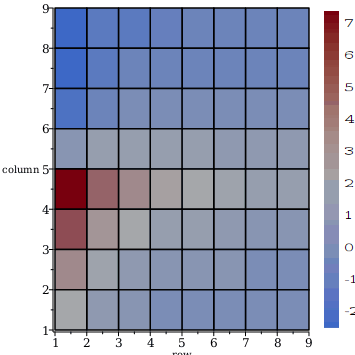

matrixplotA
