Active Suspension Comparison

This model examines the stability control of a vehicle suspension system, and can be used to simulate road conditions and test suspension performance. It demonstrates how the damping coefficient of the suspension can be controlled to minimize the roll of a vehicle subjected to increasing side forces.

In the movie below, the green car has the stability control and the red car is without stability control.

Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Active Suspension Comparison
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images
  • ActiveSuspensionComp Two suspension configurations can be simulated and visualized in the same window.
  • Model Model diagram of controlled and uncontrolled vehicles

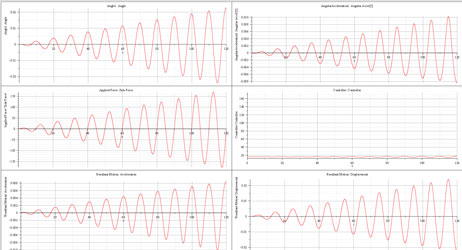

  • Plots Output of vehicle displacements
