Transfer Functions for a Lead Compensator Circuit

This example shows the use of the Maple document environment for developing an analysis of an electric circuit, in this case, a lead compensator. Its governing equations are derived and converted to continuous and discrete transfer functions. Open the MapleSim model and select the Project tab, Attachments, Documents and TransferFunction.mw.

This model includes a Maple worksheet for analysis.
Close

Download this MapleSim model

This model requires MapleSim. If you do not have MapleSim, contact us for a live demonstration.

  • How this model works and how it was developed
  • How this model can be modified to fit your requirements
  • How we can assist you in developing your own models to solve your engineering design problems

Let Maplesoft Engineering Solutions provide you with the expertise and tools you need to meet your project requirements quickly and effectively. Ask our experts today!

Contact us today


If you have MapleSim, download the model here:

Download the Model Request an S-function

Close

Request an S-Function

MapleSim Models can be readily exported as royalty-free S-functions. To request the S-function corresponding to this model, please fill in the form below.


Model: Transfer Functions for a Lead Compensator Circuit
Industry:

Submitting form...

Thank you for requesting the S-Function. Your request has been received and you can expect to hear from us shortly. Close Window
Oops! There was a problem. Try again later Close Window
Model Images

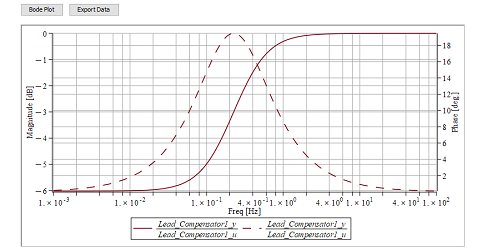

  • equation.jpg MapleSim provides continuous and discrete transfer functions for your model.

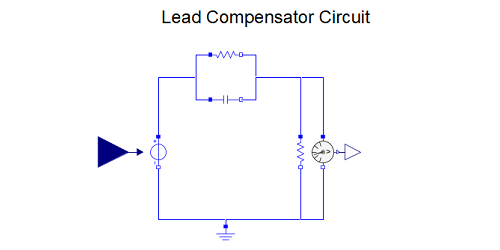

  • A lead compensator circuit A lead compensator circuit
