Lead Acid Battery

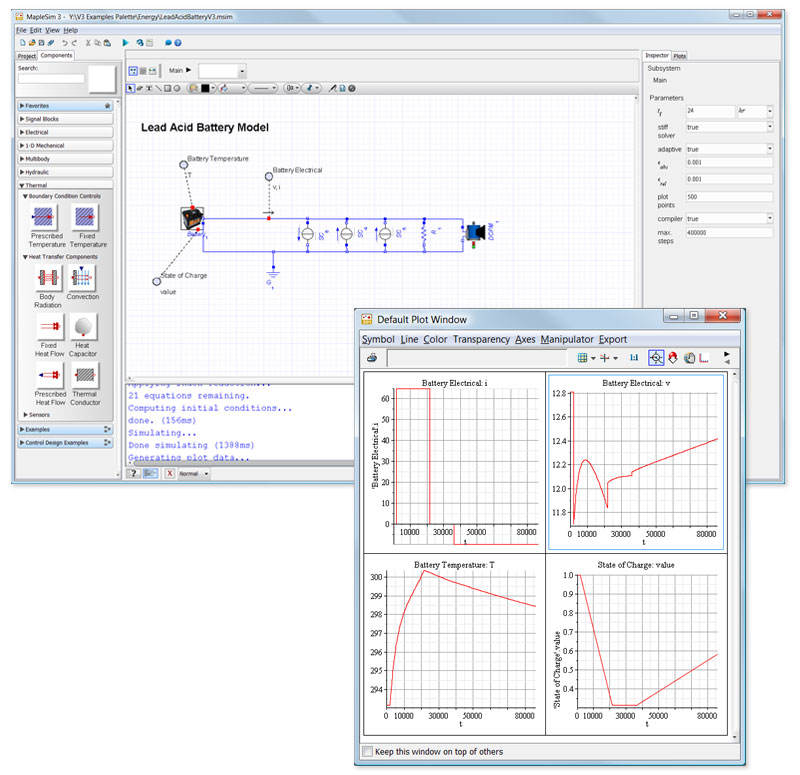

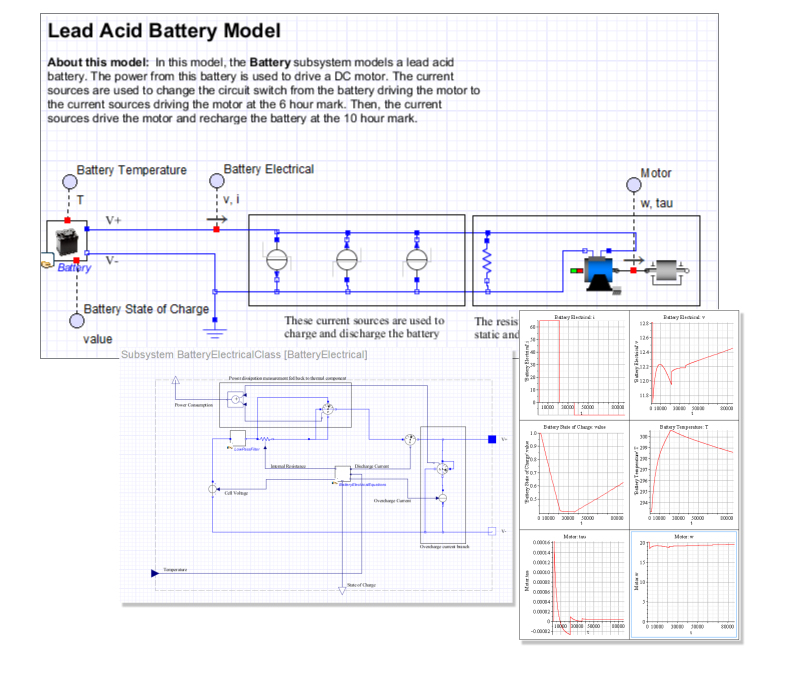

This model simulates a lead acid battery driving a DC motor. The current sources are used to change the circuit switch from the battery driving the motor to the current sources driving the motor at the 6 hour mark. Then, the current sources drive the motor and recharge the battery at the 10 hour mark.
|
